2 Getting Started
9

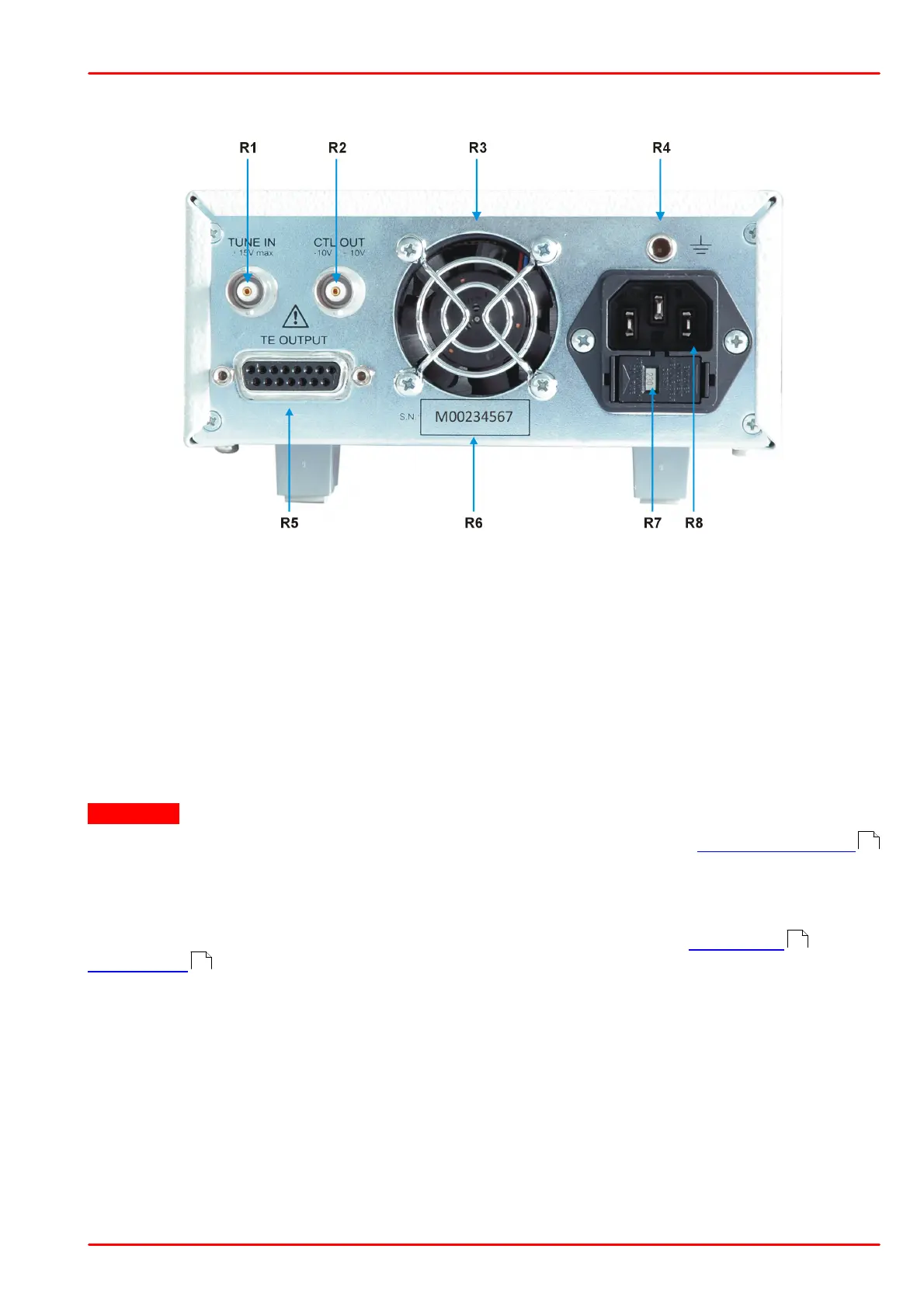

Rear Panel
R1 Analog temperature control input "TUNE IN", -10 ... +10 V
R2 Analog temperature control output "CTL OUT", -10 … +10 V
R3 Fan
R4 4 mm banana jack for chassis ground
R5 15-pin D-SUB jack for the TEC element and the temperature sensor
“TE OUTPUT”
R6 Serial number of the unit
R7 Indicator / switch for line voltage (included in fuse holder)
R8 Mains connector and fuse holder
2.4 First Operation
Attention
Prior to switch on your TED200C controller, please make sure that the line voltage setting
corresponds to your mains voltage! Mismatching may lead to damage of the controller!
Turn the unit on by pressing the line switch F11.
After switching on the unit, the LED display F1 and a LED, indicating the selected
measurement value (F13 ... F16), light up, otherwise please check the line voltage and the
mains fuses .
By using F17 and F18 keys, the displayed measurement value can be selected.
A TED200C controller is immediately ready to use after turning on. The rated accuracy is
reached, however, after a warming-up time of approx. 10 minutes.
