Thorn security TYCO T1216W-C - Rear Right Hand Side of Display PCB; C1634 Relay Output Module

T1216W-C
MARINEW-P-I
1 11/12
PAGE 32 of 39
Buzzer
Connector
Buzzer
Connector
9V Battery
Connector
Keyswitch
Connector
Keyswitch
Motherboard
Ribbon Cable
Connector
Evacuate/Muster configuration Link:
Upper position: Evacuate mode
(manual fire alarm)
Lower position: Muster mode
Link removed: Evacuate & Muster
modes disabled

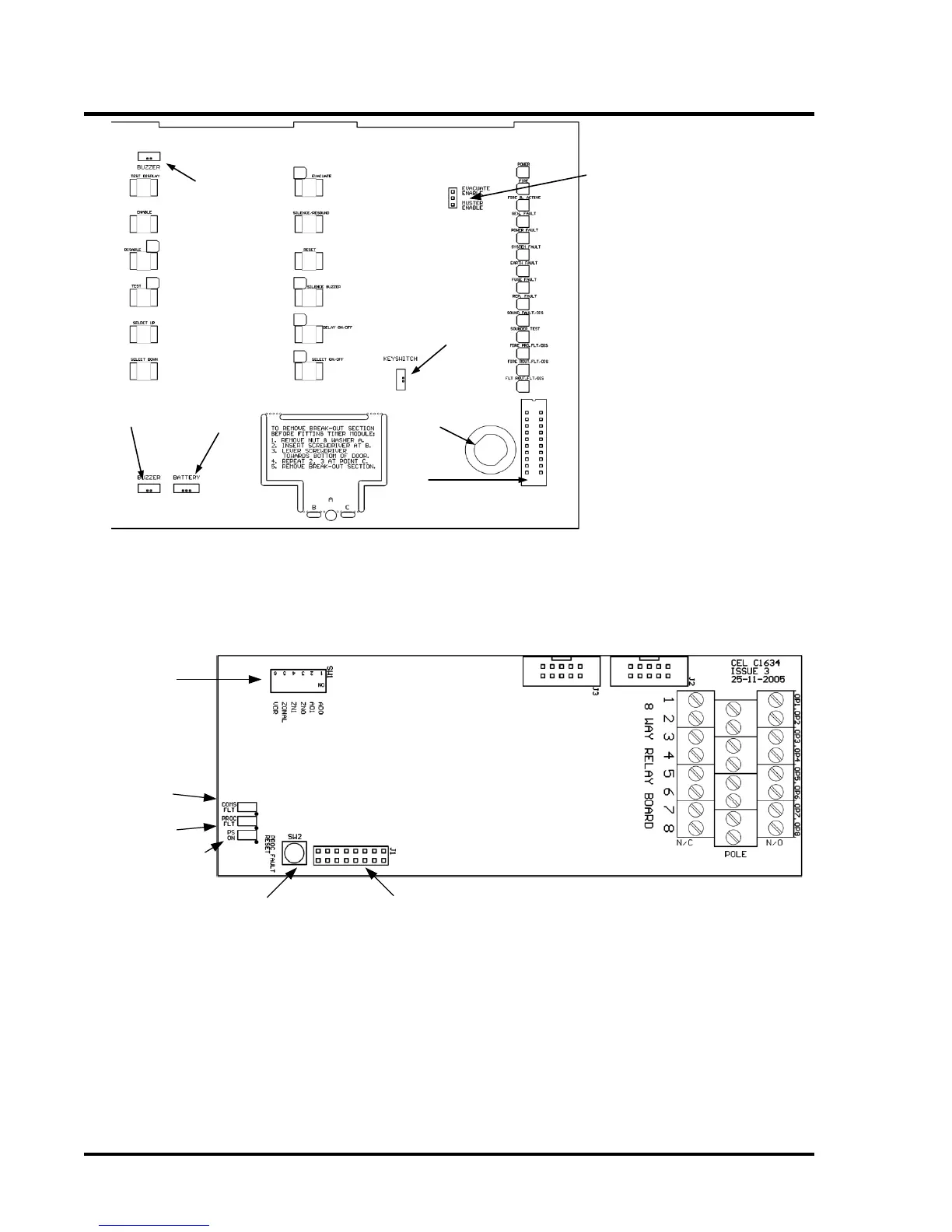

Figure 11 – Rear Right Hand Side of Display PCB
SW1Config switch
Top to bottom:
AD0
AD1
ZN0
ZN1
ZONAL
VDR (OFF)
Comms Fault
LED
J2 Comms
In/out
SW2 - Reset
processor Fault
Power Supply On
LED
Processor fault
LED
Relay outputs 1 to 8
N/O – Normally Open
POLE – Pole (common)
N/C – Normally Closed
J3 Comms
out/in
Microcontroller Programming
Connector – Factory Use Only
Figure 12 – C1634 Relay Output Module
