14
Inclination at 72°

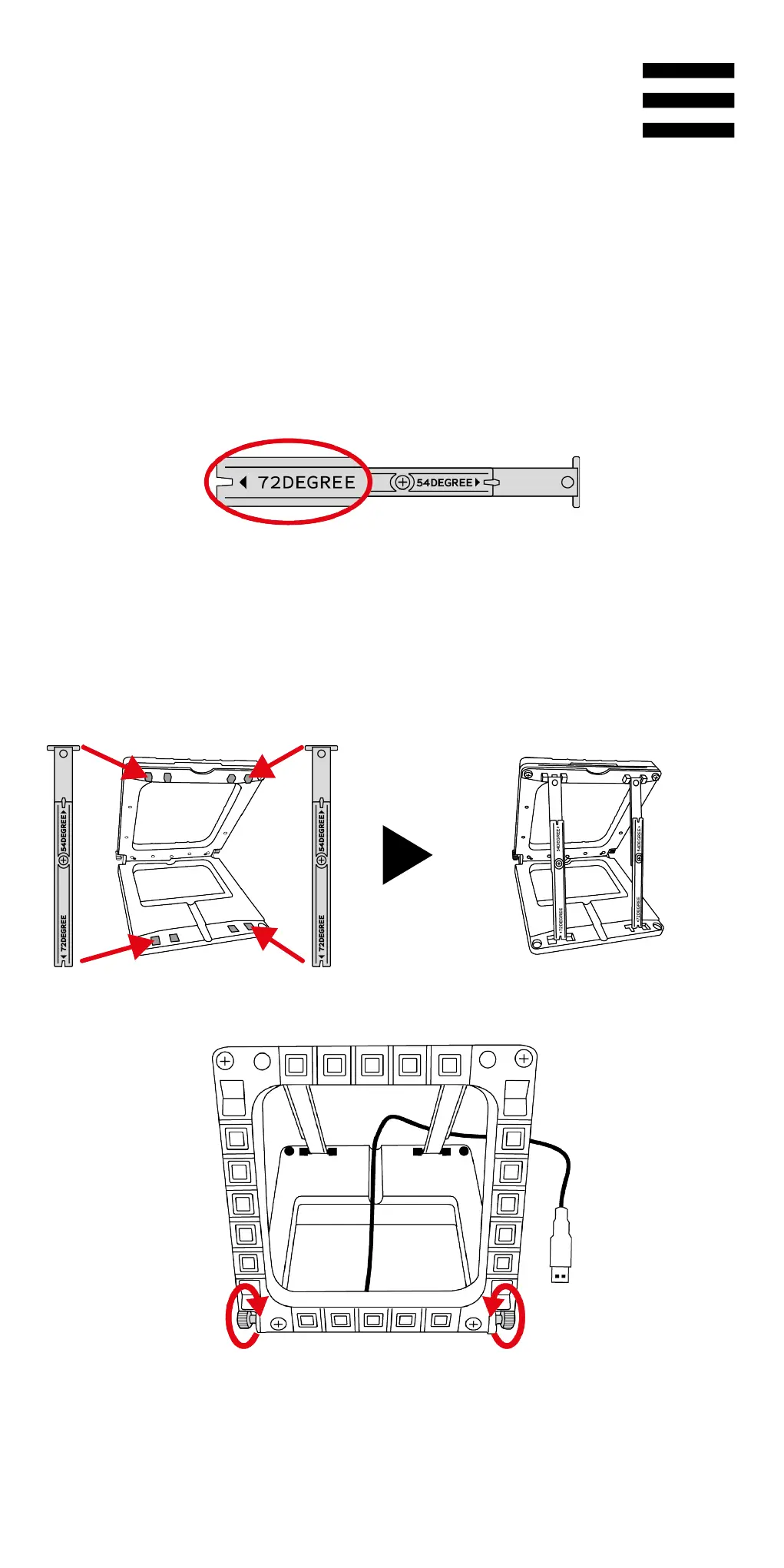

1. Position the two attachment bars (10) with the
72DEGREE indication at the bottom of the bars.
If necessary, you can slightly loosen the center
screw to facilitate angle adjustment.
2. Clip the top of each attachment bar (10), shaped
like a T, into the attachment system (7). Next,
position the bottom of each attachment bar in the
corresponding holes at the back of the base.
3. Retighten the two attachment thumbscrews (5).
