13
Adjusting an MFD’s angle of inclination
on its base

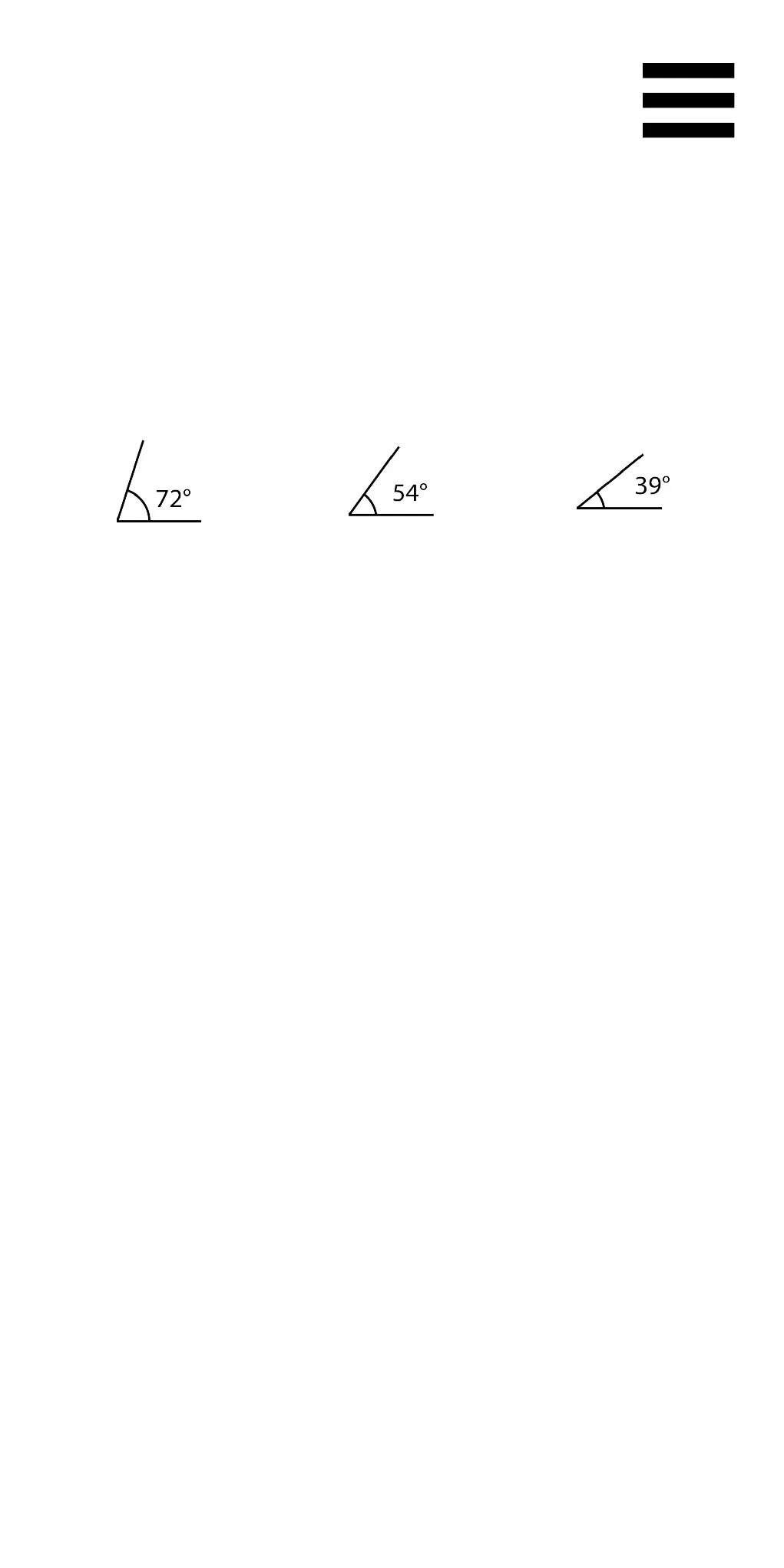

When the MFD is attached to the base (4), the screen
can be set at a 72°, 54° or 39° angle of inclination.
The attachment bars (10) are each composed of two
bars that can be positioned in a specific direction or
separated:
− One long bar featuring the indications 72DEGREE
and 54DEGREE.
− One short bar featuring the indication 39DEGREE.
