16

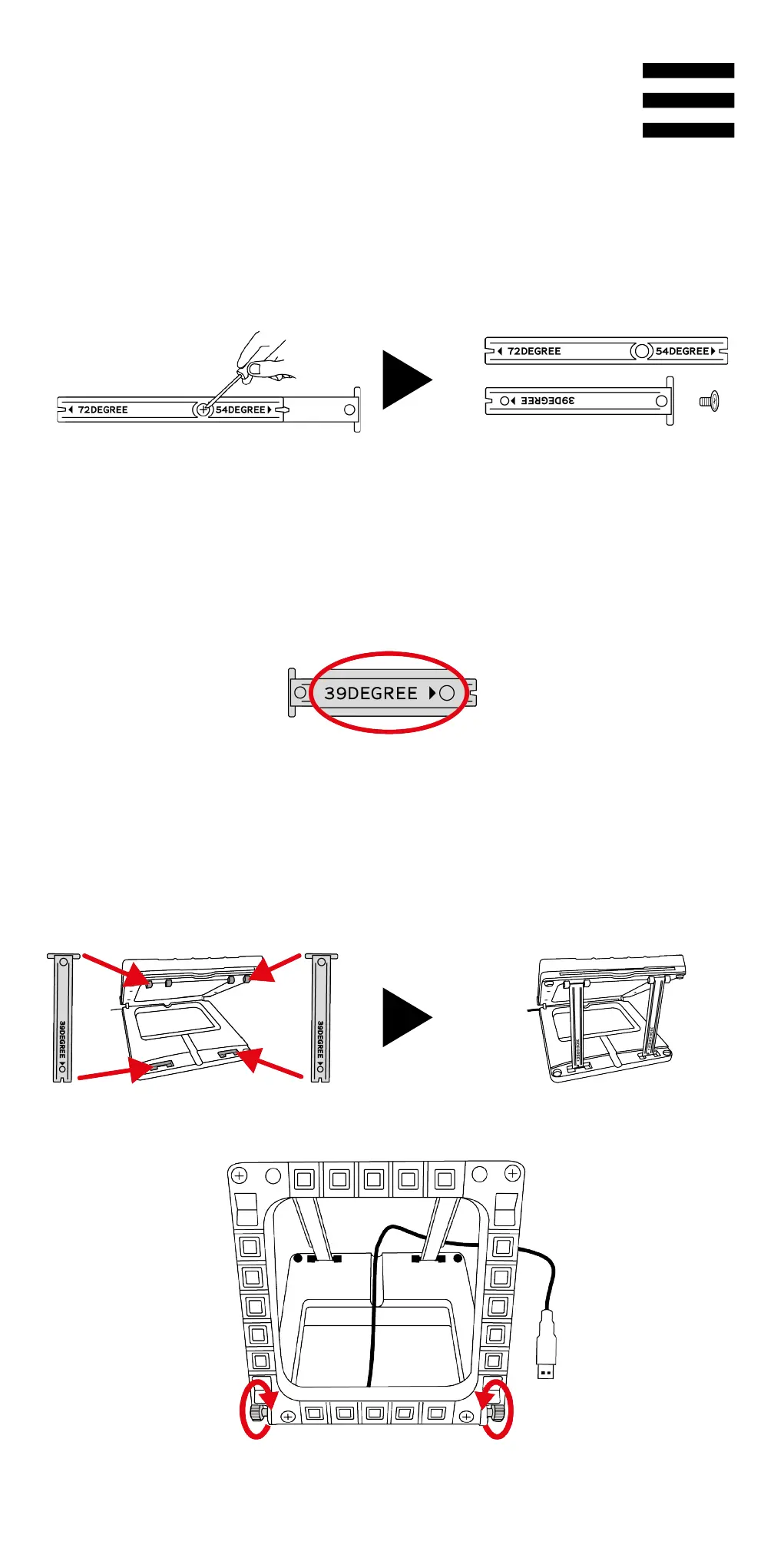

Inclination at 39°
1. Unscrew the center screw, then separate all of the
bars.
2. Keep the short attachment bars with the
39DEGREE indication, and put the bars with the
72DEGREE indication and the screws in a safe
place where they won’t be lost.
3. Clip the top of each attachment bar (10), shaped
like a T, into the attachment system (7). Next,
position the bottom of each attachment bar in the
corresponding holes at the back of the base.
4. Retighten the two attachment thumbscrews (5).
