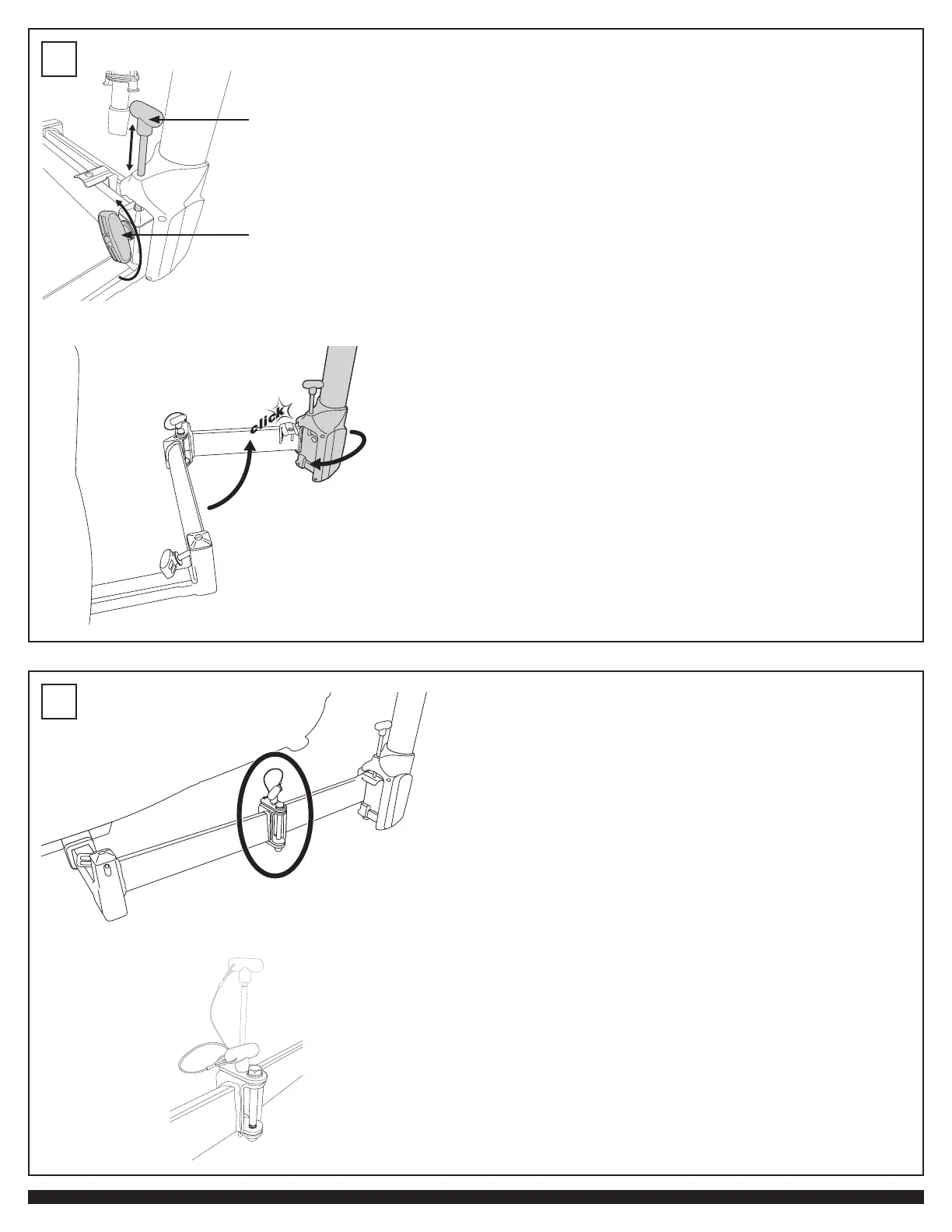

REAR COMP
ARTMENT ACCESS
- A. Remo
ve hold-open pin. Loosen lower locking handle completely and
pull pin to open carrier
.
- B. While pushing bott
om half of bike arm assembly open, rotate upright
assembly as illus
trated. In full open position lock-up pin will engage
bracket.
lock-up pin
lower locking handle
OPENING CARRIER
- A. Insert hold open pin into locking position when fully open t
o prevent
carrier from s
winging closed.
- B. Hold-open pin.
A
A
B
B
