Thule DOUBLETRACK 990XT - Warnings and Limitations; 1 1;4 Inch Hitch Installation; Hitch Receiver Insertion and Securing; Secure Upright Assembly

5015829_04
WARNINGS / LIMITATIONS
• Fits 20-29" wheels up to 3" wide
• 2 Bike maximum carrying capacity = 70lbs.
• Carries bikes with wheel bases up to 46.5"
•
The 990XT Doubletrack™ can work with
bikes with tire fenders.

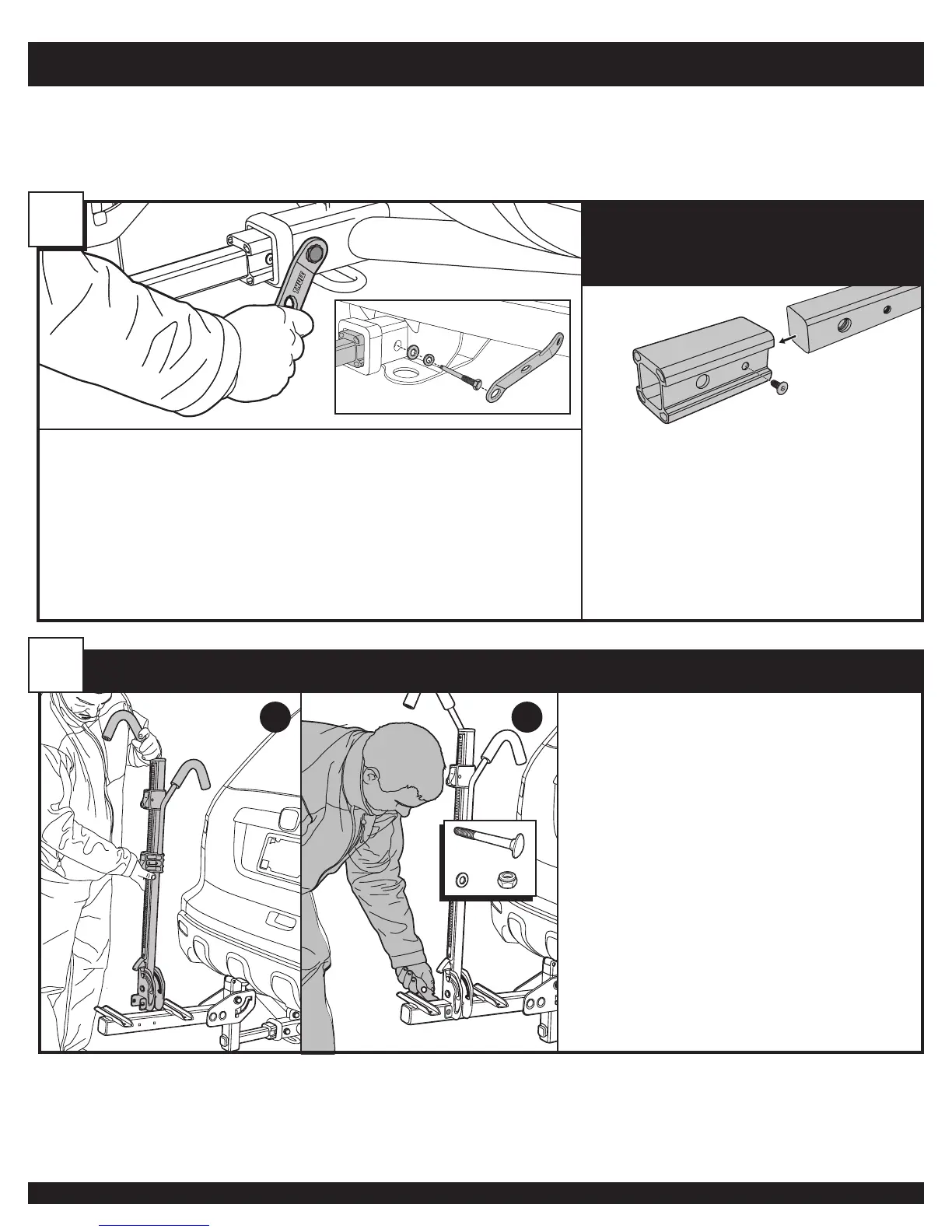

FOR 1 1/4" INSTALLATION
1
• Remove adapter sleeve, short (M) using hex key 5mm (K)
provided, as illustrated.
• Slide hitch into trailer hitch receiver until hole in horizontal tube aligns with receiver hole.
Secure in position with STL2 receiver bolt (D), lock washer 12mm (J), and
washer 12mm x 24mm (E) as illustrated. Tighten firmly with Thule hitch tool (L).
SECURE UPRIGHT ASSEMBLY /
2
a
b
a Align upright tube & hook assembly (C) mounting holes with
holes on the sides of the stinger & backbone assembly (A).
b Secure with M8 x 70mm carriage bolts (H), washer 8mm x
16mm (F), and locknut M8 (I) as illustrated. Tighten firmly
with Thule hitch tool (L).
