18 SDD902-00
NIEUW 2020 G2 : ZWART / ROOD BEKABELING
+
+
+
+
Switch S1
Step S2
Battery 12V DC
(main)
12V
M
Capacity
2200µF
Relay
Key S3
Dashboard
brown
grey
red
black
F 20A
L
OFF
START
-
-
-
ACC
ON
50
30
15
86
30
85
87
87a
OFF
ACC
ON
START

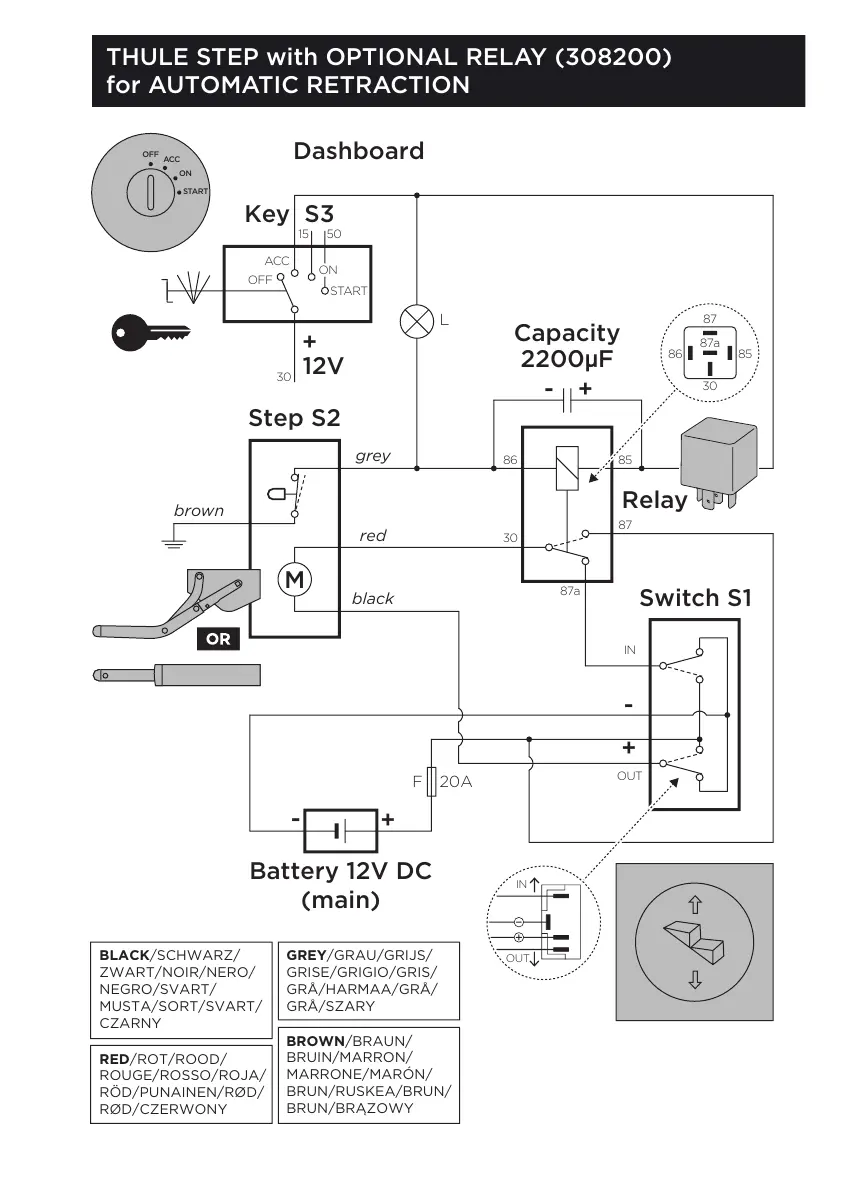

THULE STEP with OPTIONAL RELAY (308200)
for AUTOMATIC RETRACTION
BLACK/SCHWARZ/
ZWART/NOIR/NERO/
NEGRO/SVART/
MUSTA/SORT/SVART/
CZARNY
GREY/GRAU/GRIJS/
GRISE/GRIGIO/GRIS/
GRÅ/HARMAA/GRÅ/
GRÅ/SZARY
BROWN/BRAUN/
BRUIN/MARRON/
MARRONE/MARÓN/
BRUN/RUSKEA/BRUN/
BRUN/BRĄZOWY
RED/ROT/ROOD/
ROUGE/ROSSO/ROJA/
RÖD/PUNAINEN/RØD/
RØD/CZERWONY
IN
OUT
86
30
85
87
87a
IN
OUT
