INSTALLATION
102
NG10 - Manual - 04 - 2022
USB port
The link from PC and NG10 USB port must be established by means a L10042 cable.
After installation, the same communication port must be selected to define the ThyVisor parameters
(typically COM4, COM5,...).
Ethernet port
One RJ45 (copper) or FX (optics fiber) port may be provided.
Connections to the TX (RJ45) port must be made with shielded cable FTP Cat.5e category or higher.
For testing a PC may be directly connect to the Ethernet port (D1) on the rear side.
With TX interface a cross cable must be employed, while an Ethernet-optical fiber converter, suit-
able for 100 Mb data rate must be employed if an FX port is implemented.
The link must be enabled by means ThyVisor sw and USB connection:
• Set the IP address (Host IP address e IP net mask) in order that the Relè and PC parameters are
matched; the parameters are inside the Communication \ Ethernet submenu.
• Set to OFF the Autonegotiation parameter of NA10 device (Autonegotiationparameter inside
Communication \ Ethernet submenu).
For security reasons, a change of the Ethernet communication parameters become active only after
an hw reset.
RS485 port
RS485 communication circuit connections must be made using screened twisted pair cable observ-
ing the polarities; screening must only be connected to the end terminating at the RS485 interface
circuit pertaining to the monitoring unit.
It is recommended to terminate the line at the extremities of the same; this must be performed on the

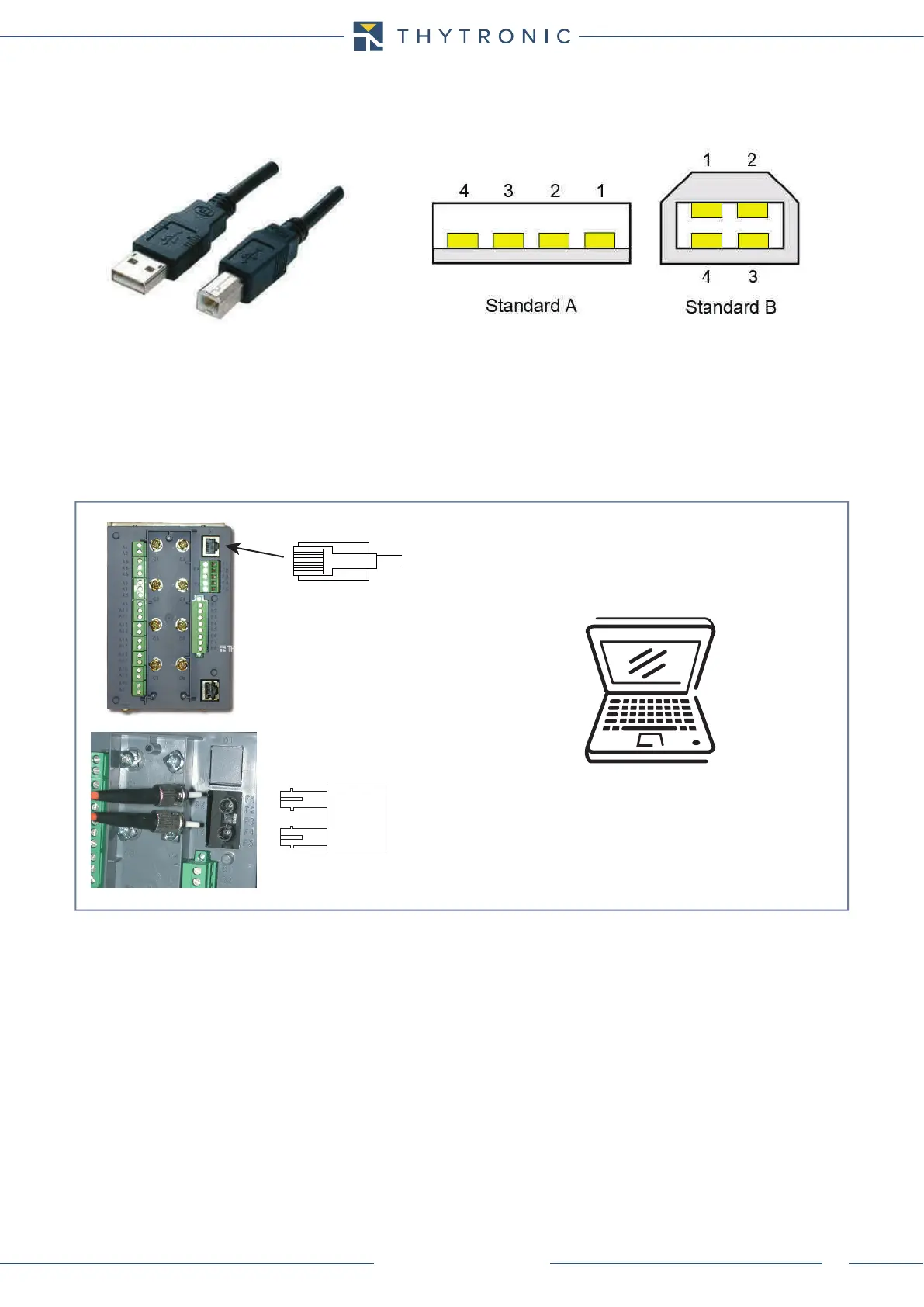

ethernet-wiring.ai
shielded cable - FTP Cat.5e
TX connector (RJ45 copper)
FX connector (optical fiber)
RX
TX
