INSTALLATION
106
NG10 - Manual - 04 - 2022
and to not exceed 5 km in length. For connections that are particularly critical in terms of electro-
magnetic pollution, it is recommended to use BFO adaptor modules with fibre optic connection.
When devices without committed pilot wire circuits must be embedded (devices other than Pro_N),
or in the event that further I/O circuits are need, output relays and binary inputs can be customized
to work in the logic selectivity system together with the committed pilot wire circuits.
Block-sch.ai

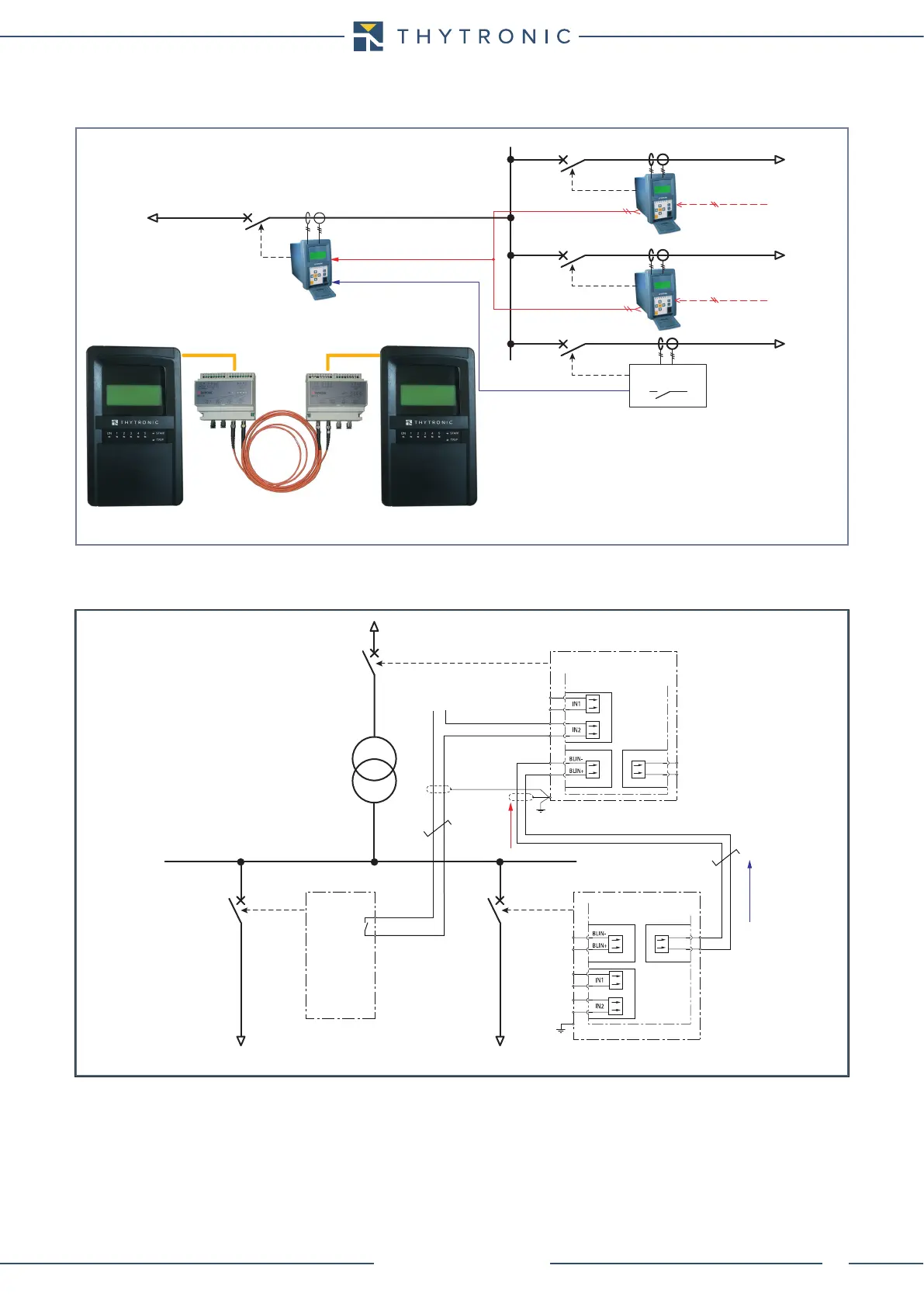

Logic selectivity with BFO
BLIN1
BLIN1
BLIN1
Block2 IPh
BLOUT1
BLOUT1
TRIP I>>
TRIP I>>
TRIP I>>
TRIP I>>
Any device
Block-misto.ai
BLIN1
BLOUT1
Uaux
BINARY INPUTS
A19
A20
A21
A22
BLOCK OUT
BLOCK IN
A17
A15
BLOUT-
BLOUT+
A16
A18
TRIP I>>TRIP I>>
START I>>
TRIP I>>
Pro_N
S1
S2 S3
Pro_N
BINARY INPUTS
A19
A20
A21
A22
BLOCK OUT
BLOCK IN
A17
A15
BLOUT-
BLOUT+
A16
A18
Example for accelerated protection system with joint use of binary input and pilot wire links
