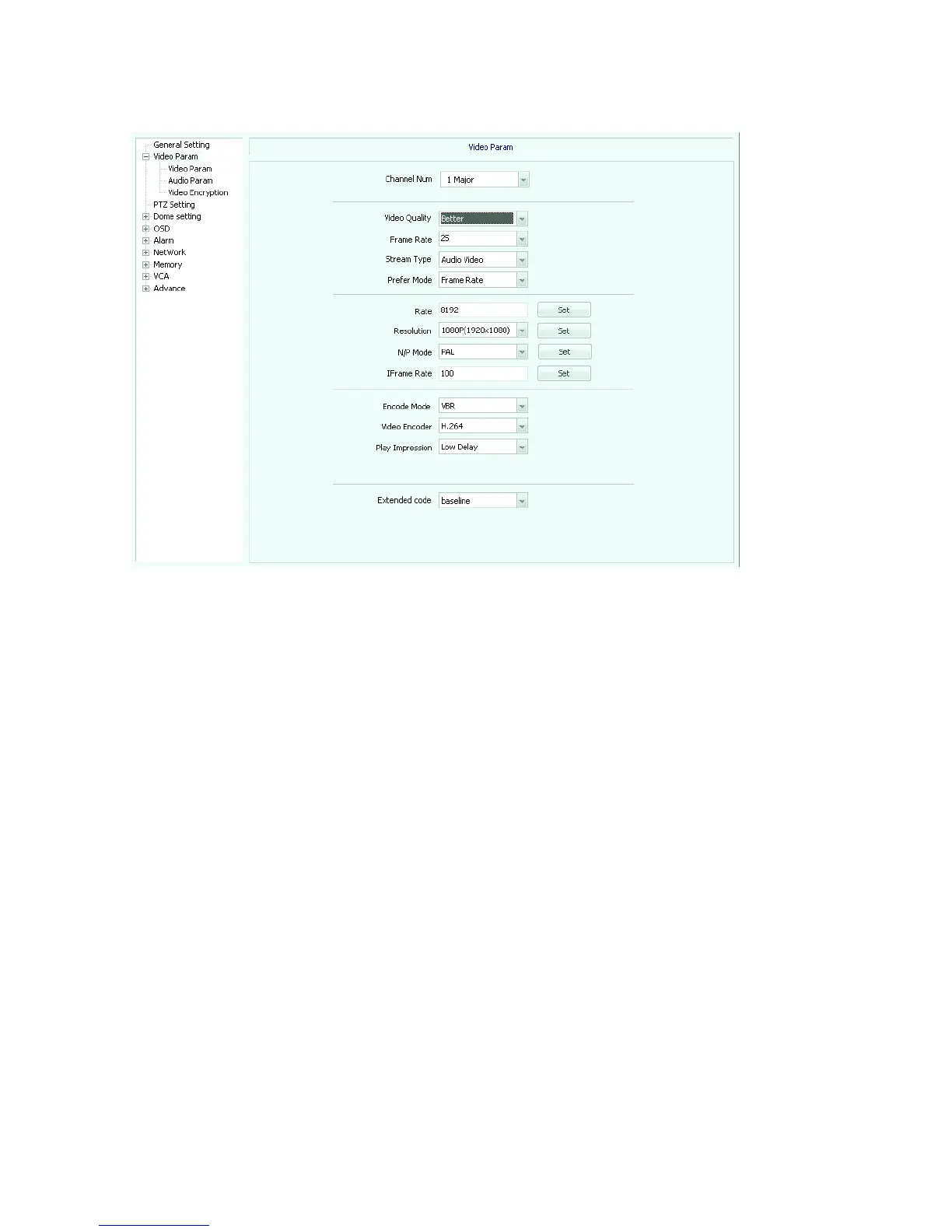

Video Param (Figure 5.18)
Fig 5.18
[Video Quality: You can choose the video quality grade: best, better, good, average,
poor.
Frame Rate: PAL standard, 1, 5, 10, 15, 25 frame rate are optional.
Stream types: type "pure video" or "audio video” can be selected.
Prefer Mode: “frame rate" and "quality" can be selected
[Rate]: the bitrate size can be adjusted from 32 to 8192Kbps.
Resolution: 4CIF, VGA, 720P, 960P, 1080p, etc. resolution Selectable (different models
compatible with the maximum resolution are different, supports up to 1080P).
N/P MODE: Optional PAL and NTSC system.
[I-frame rate: adjust the I-frame rate.
Encode Mode: optional VBR, CBR system
[Video encoder: optional H.264, Motion JPEG.
Play Impression: low delay, high fluency
Extended mode: Baseline, main profile, high profile optional.
