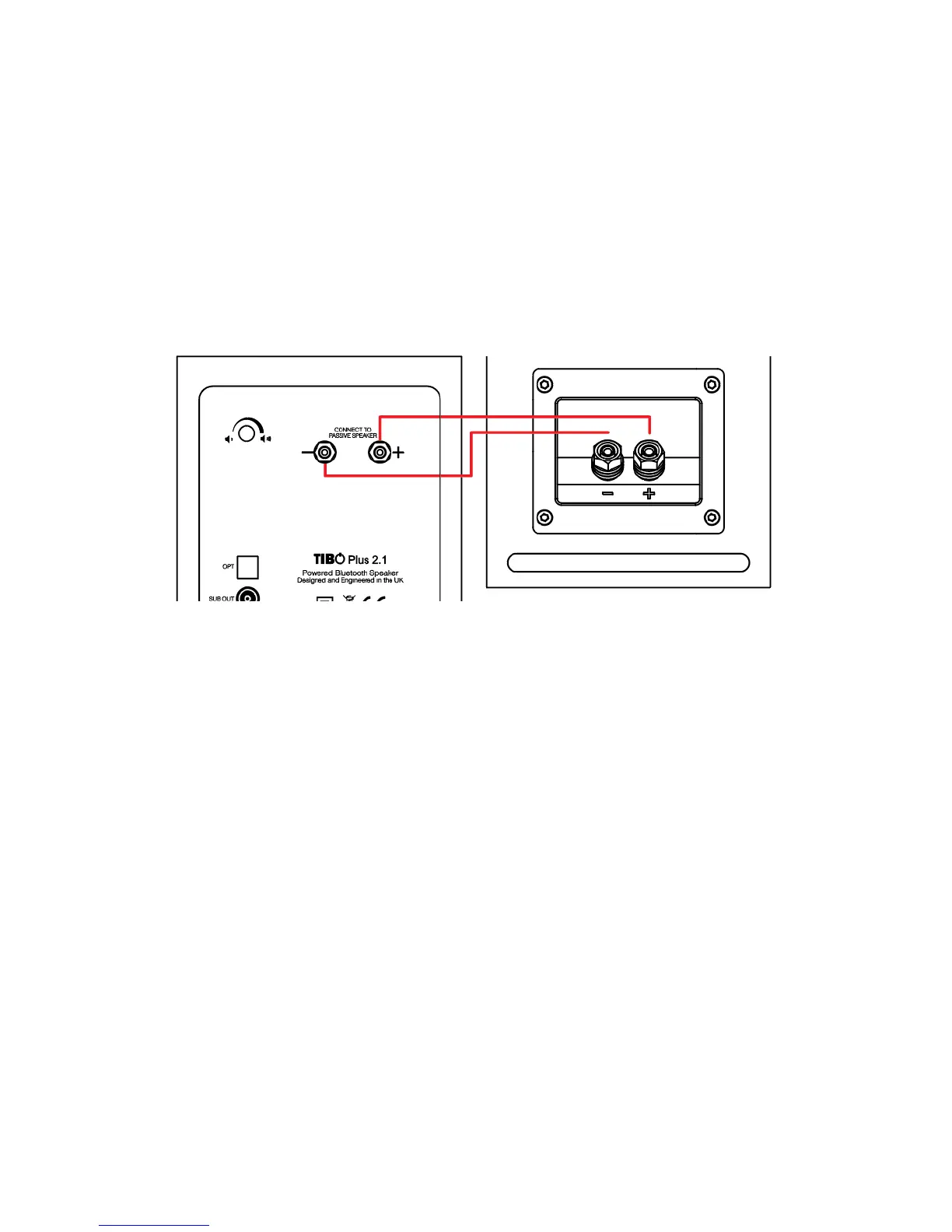

Ensure that the ON/OFF Switch is in the OFF
position. Connect the two speakers together as
shown below using the supplied speaker cable.
Connect the RED (+) and BLACK (−) terminals from
the active speaker (left channel) to the
corresponding terminals on the passive
speaker (right channel).
If you wish to place your speakers further apart than
the supplied cable will reach, we recommend that
you purchase a heavier gauge of speaker cable to
minimize signal loss. Follow the instructions on the
ensuing pages to connect your audio sources to
speakers. The examples in the following pages are
not meant to be exhaustive - just examples.
Connect the power cord from active speaker to the
wall outlet.
