Tiger River Caspian - Dimensions

x Page 5 x
59" (149.9 cm)
80" (203.2 cm)
18" (46 cm) 18" (46 cm)
49 1/2" (125.7 cm)
3 1/2" (8.9 cm)
27 1/2" (69.8 cm)
32 1/2" 82.6 cm)
36" (91.4 cm)
MAIN DRAIN
1 3/4" (3.8 cm) ELECTRICAL CUTOUT
(location may vary 1/2" (1.3 cm) )
UPSIDE DOWN VIEW OF SPA
DOOR SIDE
84" (213.4 cm)
21 1/2" (54.6 cm)
18 1/2" (47 cm) 21 1/2" (54.6 cm) 17 1/2" (44.5 cm)
84" (213.4 cm)
CENTER MIDDLE SHIMS
12 1/2" (31.8 cm)
21" (53.3 cm)
SECONDARY DRAIN
65 1/2" (166.4 cm)
Page 5 Pre-Delivery Instructions
Caspian
™
(Model CHP)

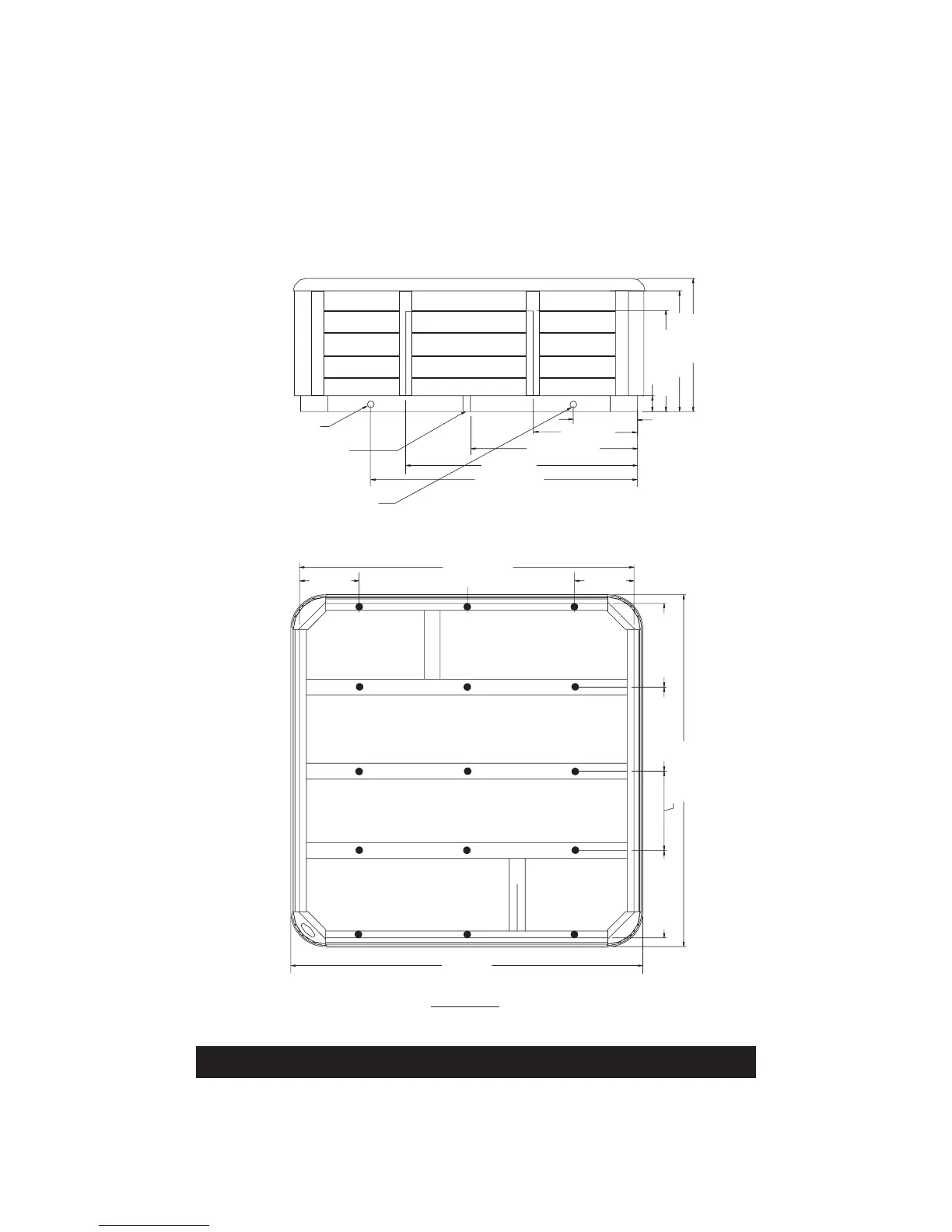

Dimensions
NOTE: All dimensions are approximate; measure your spa
before making critical design or pathway decisions.
(Bottom view)
(Front view)
• 15 Leveling Points (place shims approx. 18” in from edge, then center middle shims)
