Side Rotary Common Section 6 - 58

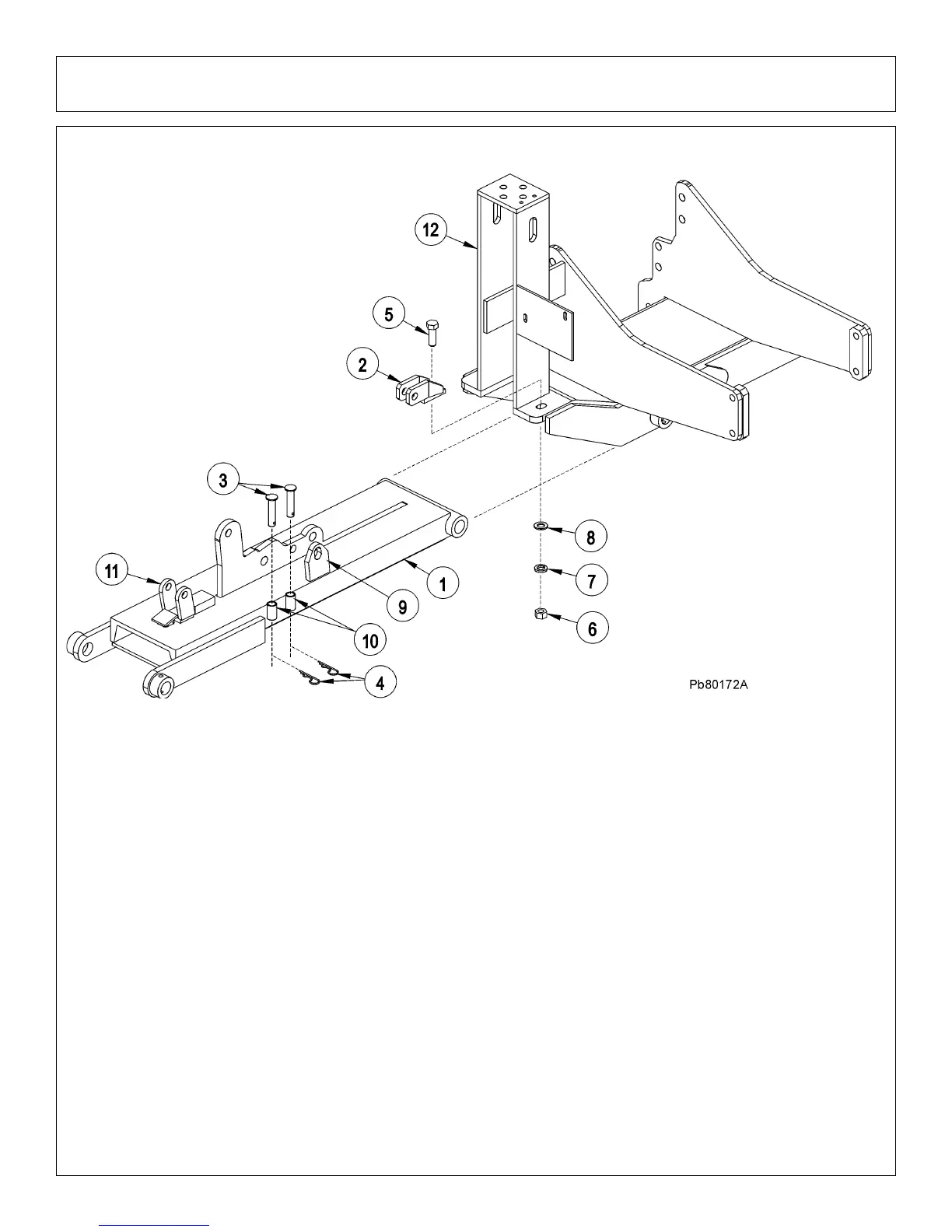

TRAVEL LOCK LIFT BEAM
ITEM PART NO. QTY. DESCRIPTION
1 6T0105 1 DRAFT BEAM (STD WITH TRAVEL LOCKS)
2 6T0106 1 TRAVEL LOCK BRACKET
3 6T0107 2 TRAVEL LOCK PINS 3/4” X 3 1/4”
4 6T3020 2 R - CLIP 5/32”
5 21833 1 CAPSCREW 3/4” X 2 1/4”
6 21825 1 HEX NUT 3/4”
7 21993 1 LOCK WASHER 3/4”
8 22021 1 FLAT WASHER 3/4”
9 22600 1 TRAVEL LOCK EAR
10 22604 2 PIN HOLDER
11 22601C 1 TRAVEL LOCK ASY
12 * REF. MAIN FRAME REFER TO PARTS SECTION
