Tiger TP - Exploded Diagram

Unit 1, Greensfield Industrial Estate,
Willowburn Avenue,
ALNWICK, NE66 2DG
www.tigerlifting.com
Page 12 of 14
Instruction Guide Tiger TP-TG En 201812 v1.1

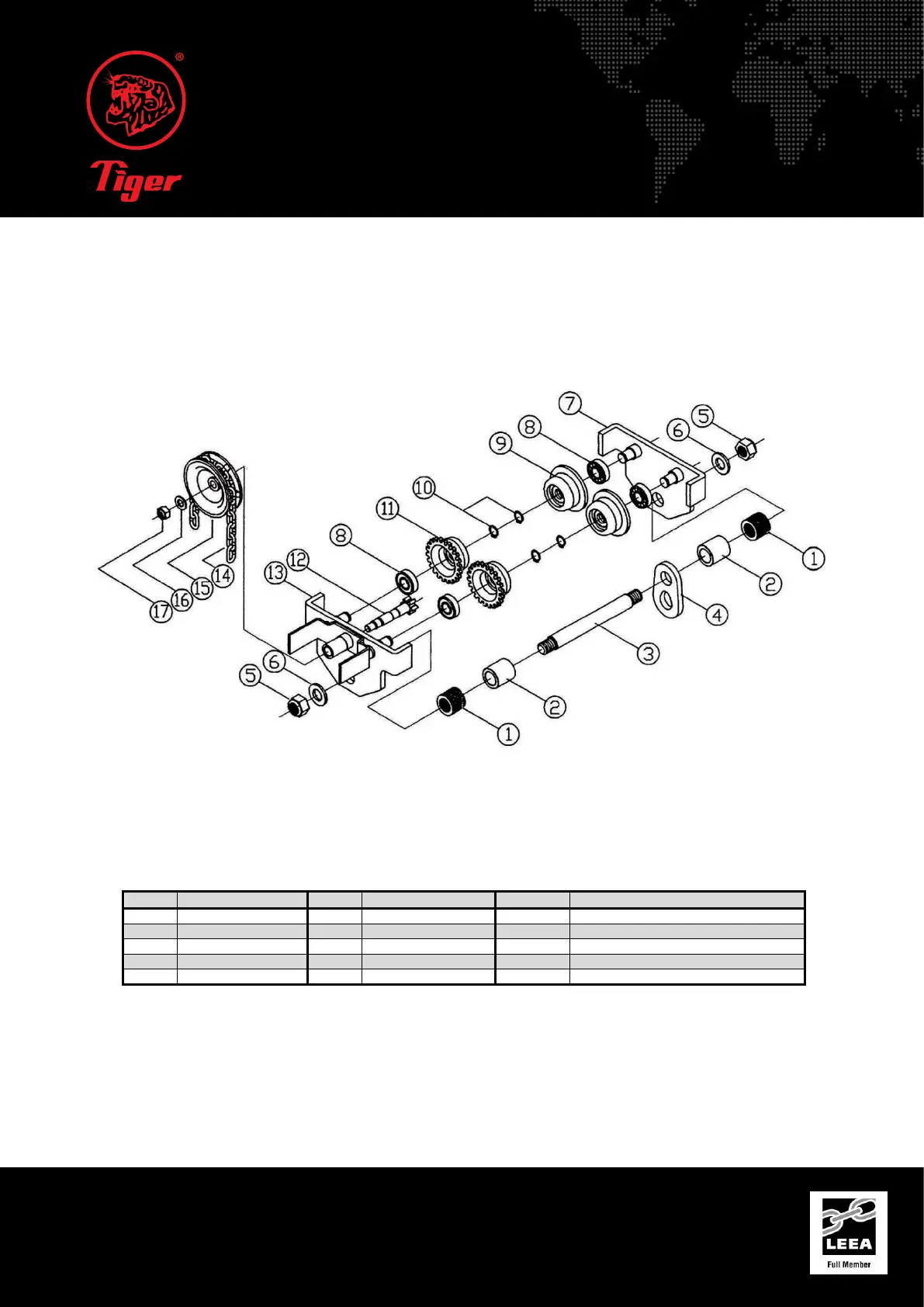

10. Exploded Diagram
The following diagram is intended to clarify terms that appear in the Product Operation and the Inspection and Maintenance
chapters.
Part No.
Part Name
Part No.
Part Name
Part No.
Part Name
1
Adjusting washers
6
Washer
11
Wheel for geared trolley
2
Collar
7/13
Side frame
12
Pinion gear for geared trolley
3
Suspension bar
8
Bearing
14/15/16/17
Hand wheel assembly for geared trolley
4
Anchor point
9
Wheel
5
Locking nut
10
Locking handle
