this delay.
3. If the lower switch is set to Off, the Led light will not flash each time a signal is detected. This can
be convenient for saving battery power.

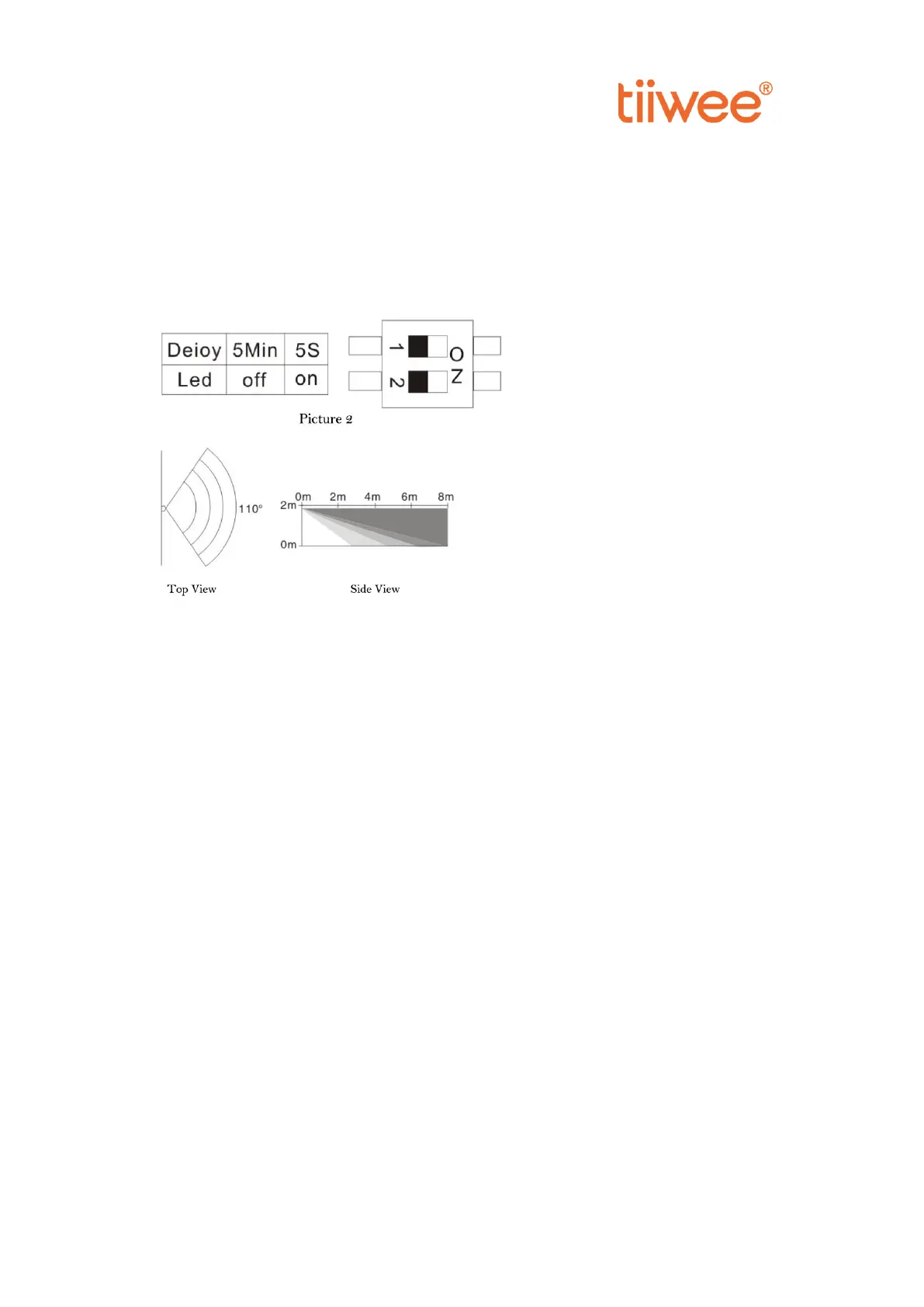

4. If both switches are in the Off position as shown in Figure 2, the PIR sensor will respect a 5-
minute interval between 2 different signals nor will the LED window flash.
Detection Range characteristics
Technical Features
Power: The PIR sensor is powered through 2 x AAA 1.5V alkaline batteries or an external 5V DC power
supply connected through the micro-USB port. It is advised to remove the batteries from the device if
it is powered through an adapter. The power adpator is not included in the product.
Standby Current: <50uA
Working Current:<25MA
Detecting Range: 4-8 m/90 degrees angle
Wireless Distance: 100m ( Open Area )
Wireless Frequency: 433MHz
Housing Material: ABS
Working Humidity: <80%
Detector Size: 58*58*89mm
