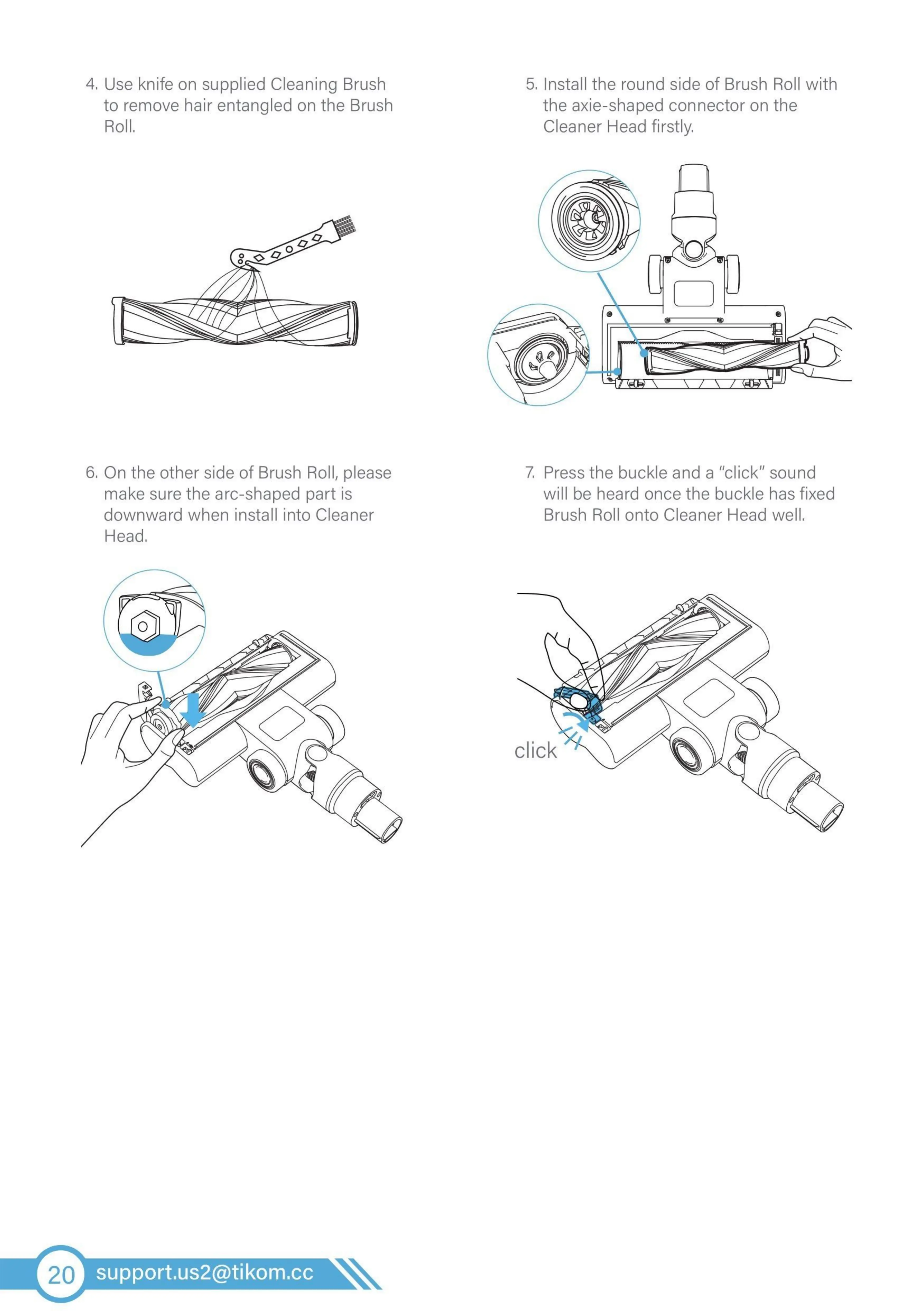

4, Use knife on supplied Cleaning Brush
to remove hair entangled on the Brush
Roll,
o
6. On the other side of Brush Roll, please
make sure the arc-shaped part is
downward when install into Cleaner
Head.
o
support.us2@tikom.cc
5, Install the round side of Brush Roll with
the axie-shaped connector on the
Cleaner Head firstly.
7. Press the buckle and a "click" sound
will be heard once the buckle has fixed
Brush Roll onto Cleaner Head well,
click
