INSTALLATION OF INDOOR UNIT

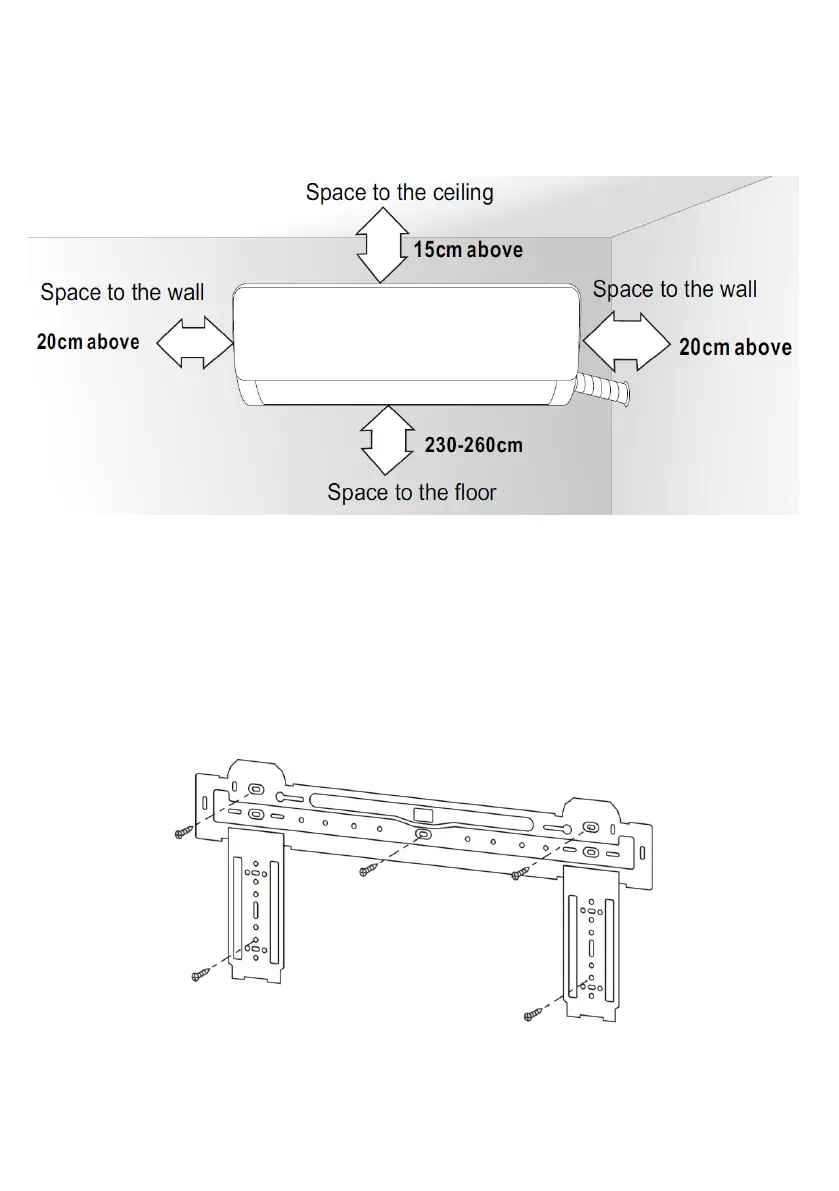

Dimension drawing of indoor unit installation

Fig. 2

Mounting plate

1. The wall for installation of the indoor unit shall be hard and firm, so as to prevent vibration.

2. Use the "+" type screw to fasten the peg board, horizontally mount the peg board on the wall,

and ensure the lateral horizontal and longitudinal vertical.

3. Pull the peg board by hand after the installation, to confirm whether it is solid.
