14

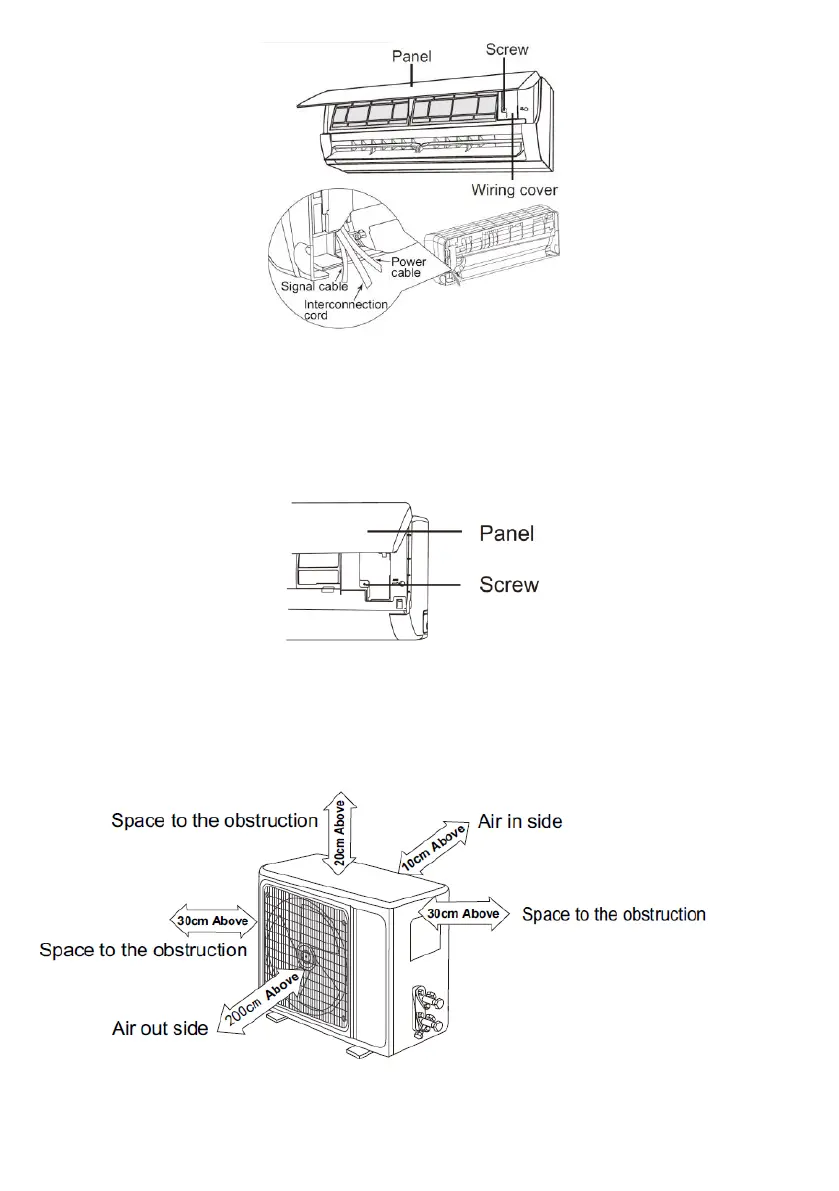

Fig. 10
4. Put wiring cover back and then tighten the screw.
5. Close the panel.
Fig. 11
INSTALLATION OF OUTDOOR UNIT
Dimension drawing of outdoor unit installation
Fig. 12
