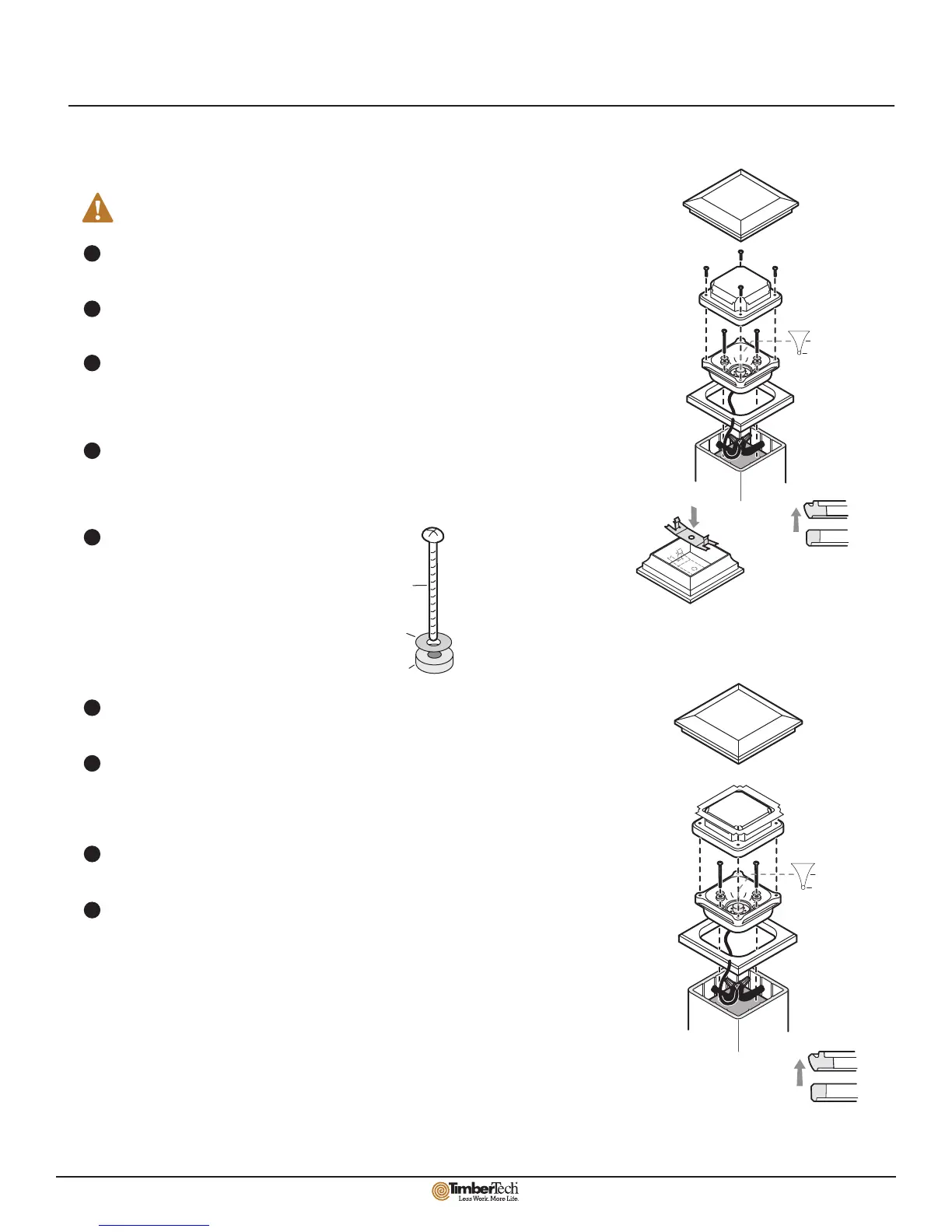

Installing Post Cap Light
Post Lamps must be installed after the rail assembly has been completed.
Before installing, refer to Post & Rail Preparation
section.
1
2
3
4
5
6
7a
8
Install the Lens onto the Post Cover as shown.
Remove the Post Lamp Cover from the Post Lamp Bottom Housing.
Trim excess wire length and make wiring connections to 16/2AWG main
cable and other 18/2AWG luminary wires. Check to confirm polarity of
main cable connections.
Coil the connected wires inside the Post Cover and insert the Post Lamp
Bottom Housing into the Lens. Check to make sure no wires are exposed or
pinched between Lens and Bottom Housing.
Install the mounting screws and washers
assembled as shown. Watch as screws are
installed to ensure that wires are clear of
screw tip prior to driving them into the wood
post. Tighten only until the silicone washer
begins to compress. Over-tightening could
break the Bottom Housing causing perma-
nent damage.
Reinstall Post Lamp Cover and screws.
For 5x5: Install Cap Spring into Post Cap as shown (place finger and
thumb on Cap Spring tabs, flex gently until Cap Spring appears slightly
bowed, insert Cap Spring into Post Cap approximately at the center of the
opening until bowed back ends contact the inside top of the Post Cap then
relax finger and thumb pressure). Press Cap Spring intoseated position
as shown.
For 4x4 (Includes Gasket): Set gasket centered on post lamp cover.
Install Post Cap onto Post Lamp Cover.
Silicone
Washer
Metal
Washer
Base
Mounting
Screw
7b
Post Cap
Post Cap
(Cap Spring Installed)
Post Lamp Cover
Post Lamp
Bottom Housing
Post Lamp Lens
Post Cover
LED
Reflector
Cap Spring Tab
5x5
4x4
UP
Lens Orientation
Cap Spring Installation
7a
Post Cap
(Cap Spring Installed)
Post Lamp Cover
Post Lamp
Bottom Housing
Post Lamp Lens
Post Cover
LED
Reflector
5x5
4x4
UP
Lens Orientation
7b
Gasket
