88

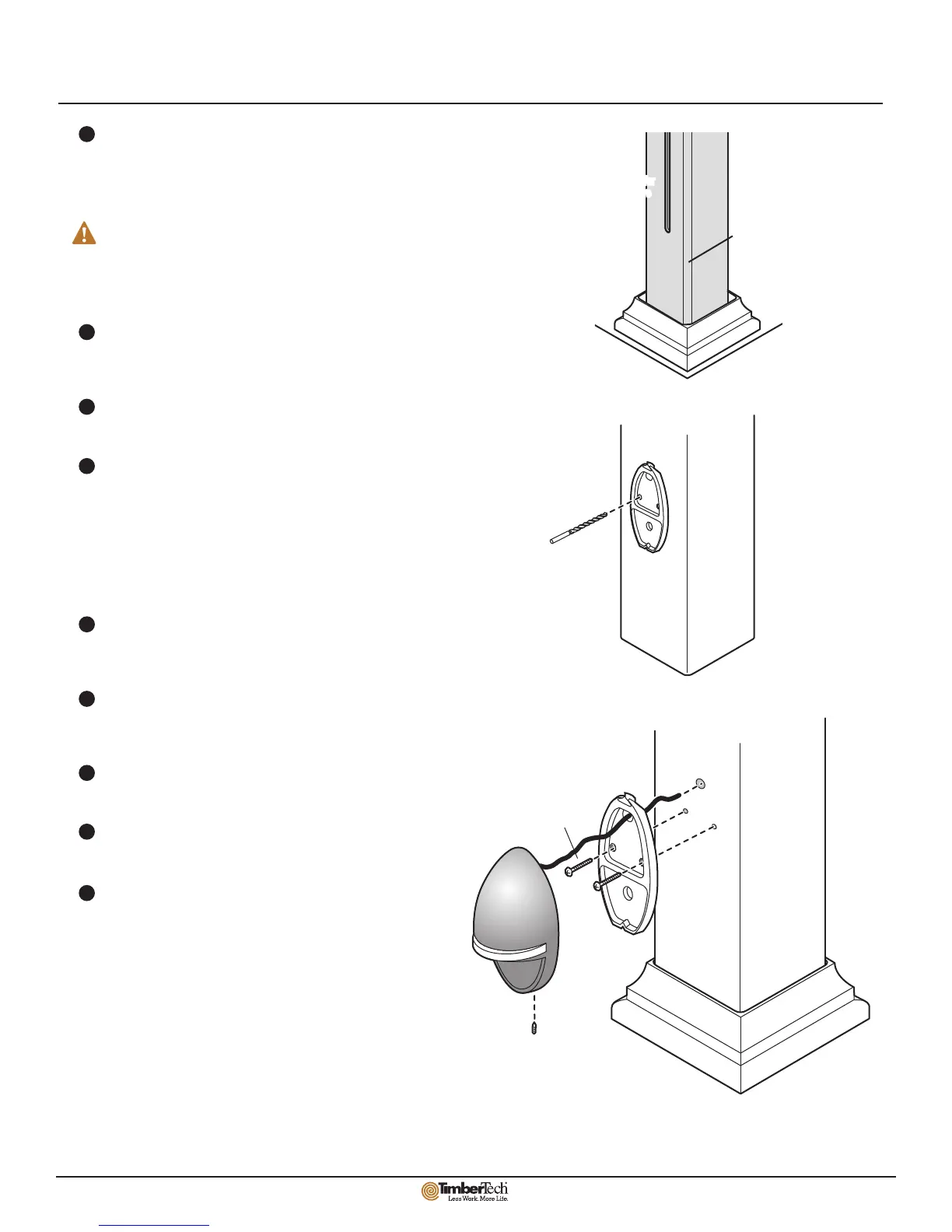

Installing Post Mounted Accent Light
1
2
3
4
5
6
7
8
9
Accent Light
Back Plate
Post Skirt
#8 x 3/4”
Screws
Accent Light
Cover
Accent Light wire channel must be routed during the installation of
the Post Cover. The Post Cover and the wood post must be prepared
in advance to accommodate installation of the Accent Light. (No
post preparation is necessary for RadianceRail.)
If using Ornamental Rail, RadianceRail Express or BuilderRail,
prepare the wood post by routing a 1/4” wide by 1/4“ deep wire
channel up the center of the post on the face where the Accent
Light will be mounted. For main cable, slightly bevel the corner
of the 4x4 post.
If a Post Skirt is used, install it over the wood post before
installing the Post Cover. You will not be able to install Post
Skirt after Post Cover and Accent Light are in place.
Remove Accent Light Cover from Accent Light Back Plate by
loosening Set Screw located at bottom of Accent Light Cover.
Prepare the Post Cover in the following manner:
• Cut the Post Cover to the desired length.
• Determine the height the Accent Light will be mounted.
• Mark the location of the wire hole and the mounting
screw holes using the Accent Light Back Plate.
• Drill a 3/8” hole for the wire and drill two 7/64” holes
for the mounting screws.
Route the Accent Light wire through the BackPlate then through
the wire hole in the Post Cover then invert the Post Cover and
allow the wire to extend out the top end of the Post Cover.
Hold the Accent Light Back Plate loosely in position and slide the
Post Cover over the wood post and into the Post Skirt. Make sure
the wire is in the routed wire channel.
Attach the Accent Light Back Plate to the post using two #8 x
3/4” screws provided.
Re-install Accent Light Cover and secure with Set Screw with
Allen Wrench.
Trim excess wire and make wiring connections.
(See Connections section of manual).
Routed Channel for
Accent Light Wire
Beveled Corner
for Main Cable
Set
Screw
