E) FRONT DERAILLEUR SET-UP
Before proceeding to set-up, familiarize yourself with the manufacturer's spec sheet for the front
derailleur.
The TIME NX frames and module are made to fit an 'à braser' front derailleur.
- The derailleur hanger is adjustable in 2 positions.

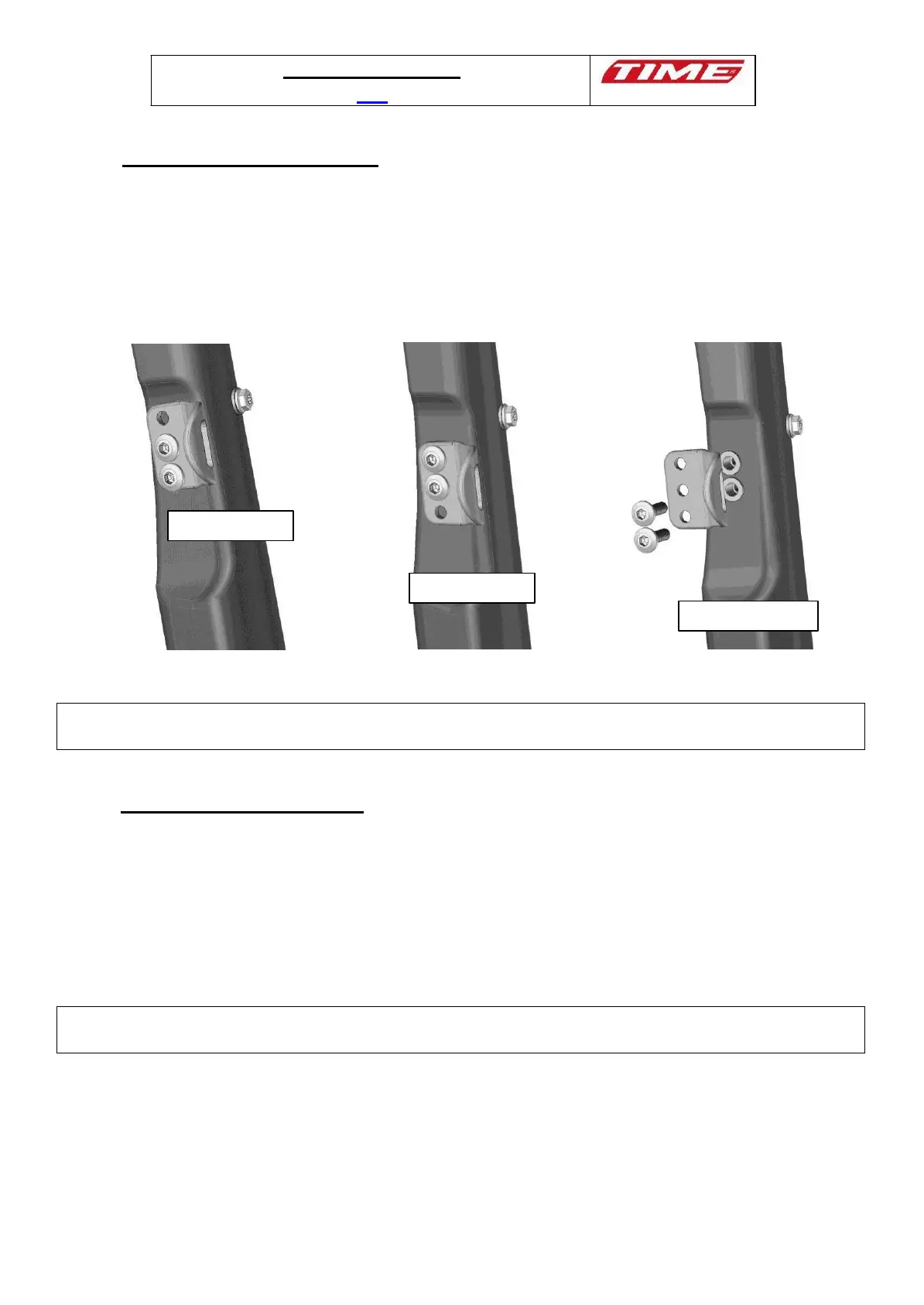

- Upper position for standard pedals (chainring of 53 teeth) (fig.11)
- Low position for compact pedals (chainring of 50 teeth) (fig.12)
- Tighten the bolts (Ref: 600045041) to 7 Nm using a torque wrench.
Upper
position
Lower
position
Expanded view
Figure 11 Figure 12
Warning: in no case force the position of the angular derailleur hanger, as this may irreparably damage
the frame.
F) REAR DERAILLEUR SET-UP
Before proceeding to set-up, familiarize yourself with the manufacturer's spec sheet for the rear
derailleur.
The TIME module is compatible with 10 and 11 speed derailleurs.
- Lightly grease the attachment bolt before set-up.
- Standard thread M 10 X 100
Warning: If adjusting the rear hanger turns out to be necessary, it is important to have a professional do
this with the correct tool. Large and repeated distortions can weaken the rear derailleur hanger.
