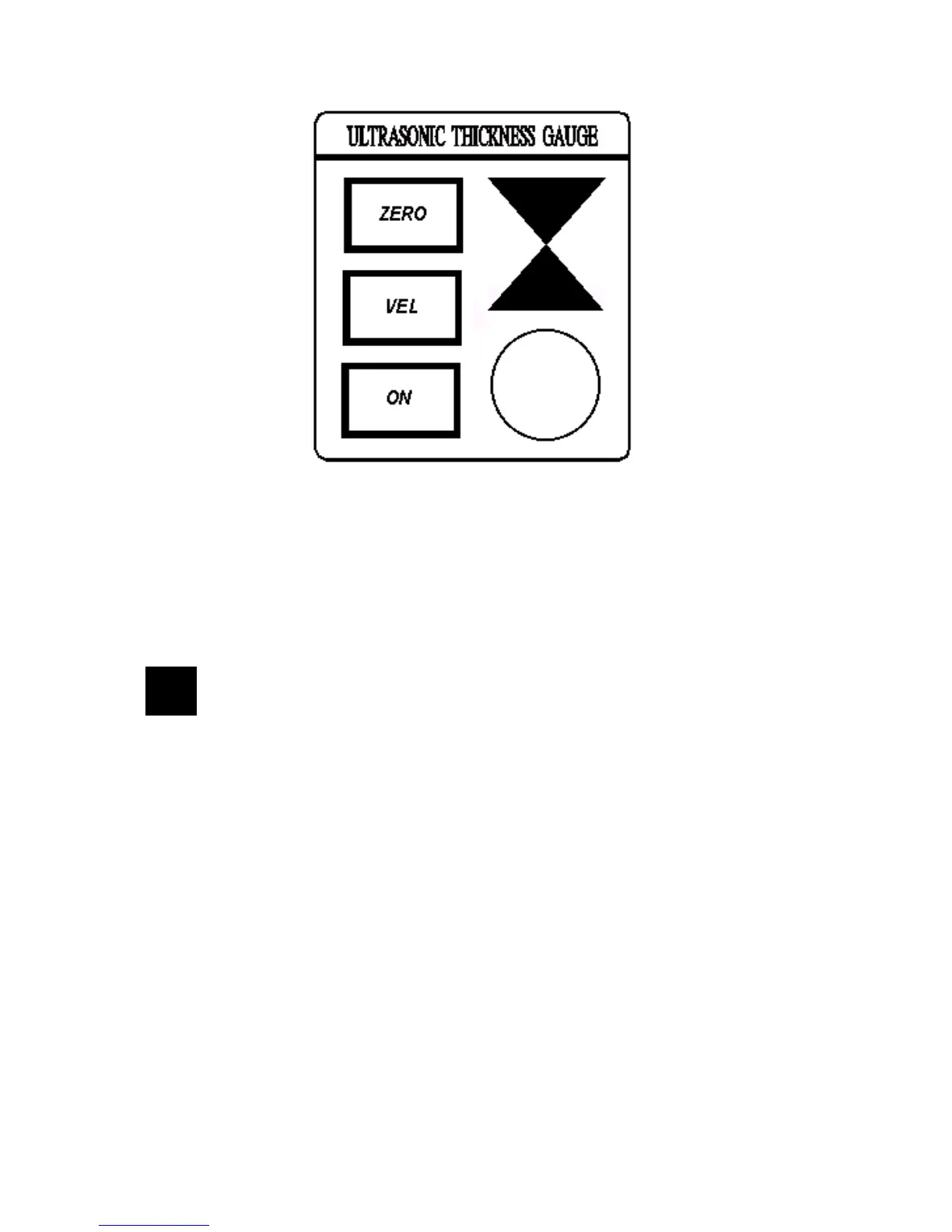

ON : power
ZERO: probe zero procedure
VEL : sound velocity value / 5 velocity are stored
▲-▼: adjustment keys for sound velocity, thickness, 10
memory units for thickness storage
2
Performance parameters
Display type: 4-digit LCD
Minimum display unit: 0.1 mm
Measuring range: 1.0mm – 225.0mm in steel (with standard
probe) (other maximum values depending
on material)
Lower limit for steel pipes: 20 mm × 3.0 mm
Display accuracy: ±0.1mm
Sound velocity range: 1000 – 9999 m/s
Coupling check: satisfactory / no probe coupling
Range of operating temperature: 0℃～40℃
Working frequency 5 MHz
Update rate: 4 Hz
Power supply: two AA alkaline cells 1.5V
Battery life: 250 hours with one battery set
Dimensions: 126×68×23mm
Weight: 170 g
