PK-232 OPERATING MANUAL COMPUTERINSTALLATION
2.3 Connecting Your Computer or Computer Terminal
MAKE SURE THE PK-232 AND YOUR COMPUTER ARE SWITCHED OFF
o Locate the PK-232 Serial Cable. Connect the 25-pin Male

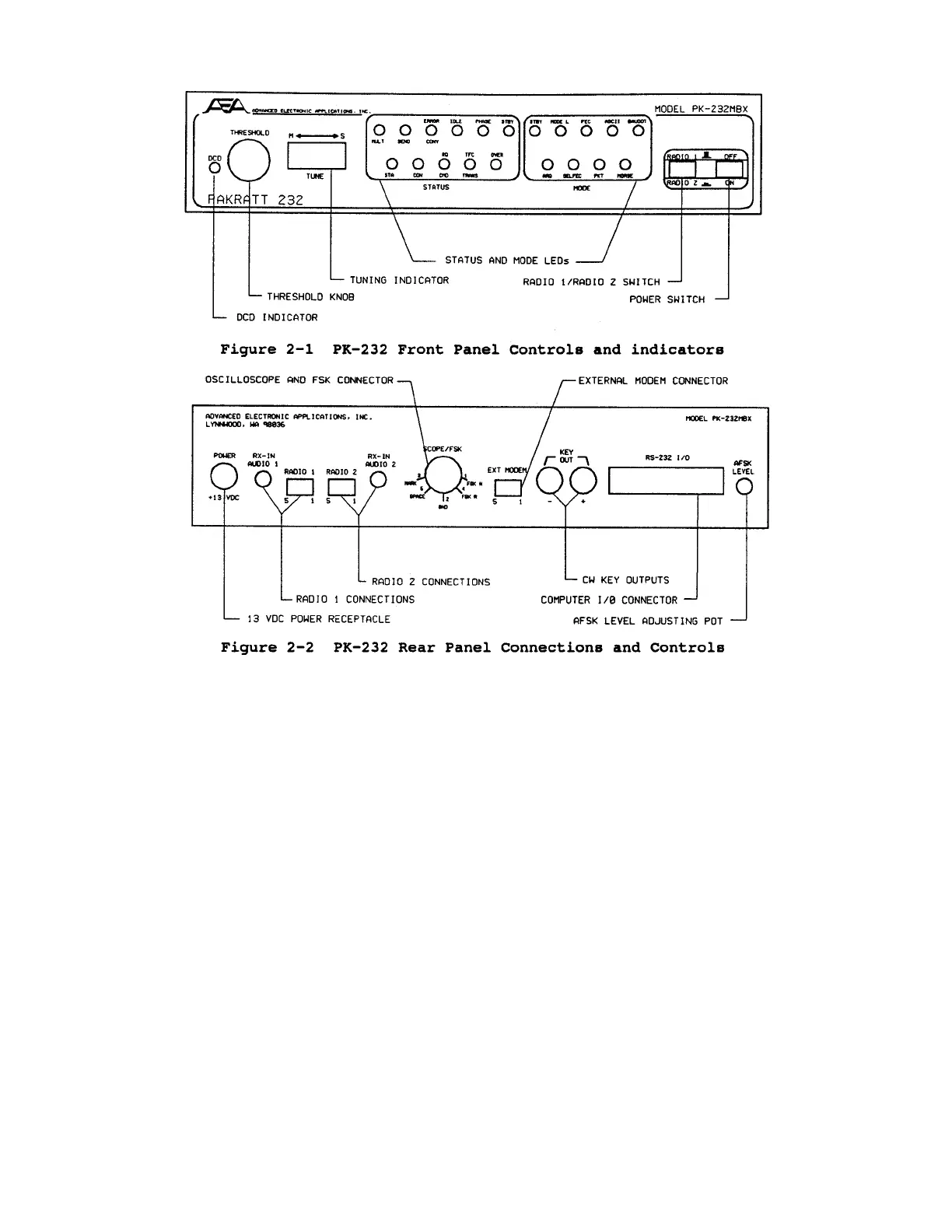

connector to the RS-232 I/O connector on the rear of the PK-232.
If you are not using an AEA RS-232 cable, make sure that the
cable you are using has no other pins than 1-8 and 20 connected.
o Connect the other end of this cable (Female DB-25) to the RS-232
Serial Port of your personal computer or Computer Terminal.
Details on connecting to common machines are listed below.
NOTE: This cable was designed to connect directly to a 25-pin IBM-PC
compatible RS-232 port. Many machines on the market today support
this configuration. Some less-common machines are listed in section
2.6. Please make certain you have properly connected the PK-232 to
your RS-232 computer or Computer Terminal then proceed to section 2.4.
2.3.1 IBM-PC/XT/AT and Compatibles
IBM compatible 25-pin RS-232 serial ports should connect directly to
the supplied serial cable. Some IBM compatible machines are equipped
with a 9-pin serial port. For these machines a DB-9 to DB-25 adapter
should be obtained from a Radio Shack store or a computer dealer.
4/91 2-3
