Disassembly of Movement ( model 33)
FI (; URE I
ROCKER ARM ~
FI GURE 2
ROTOR SCREWS
ROTOR

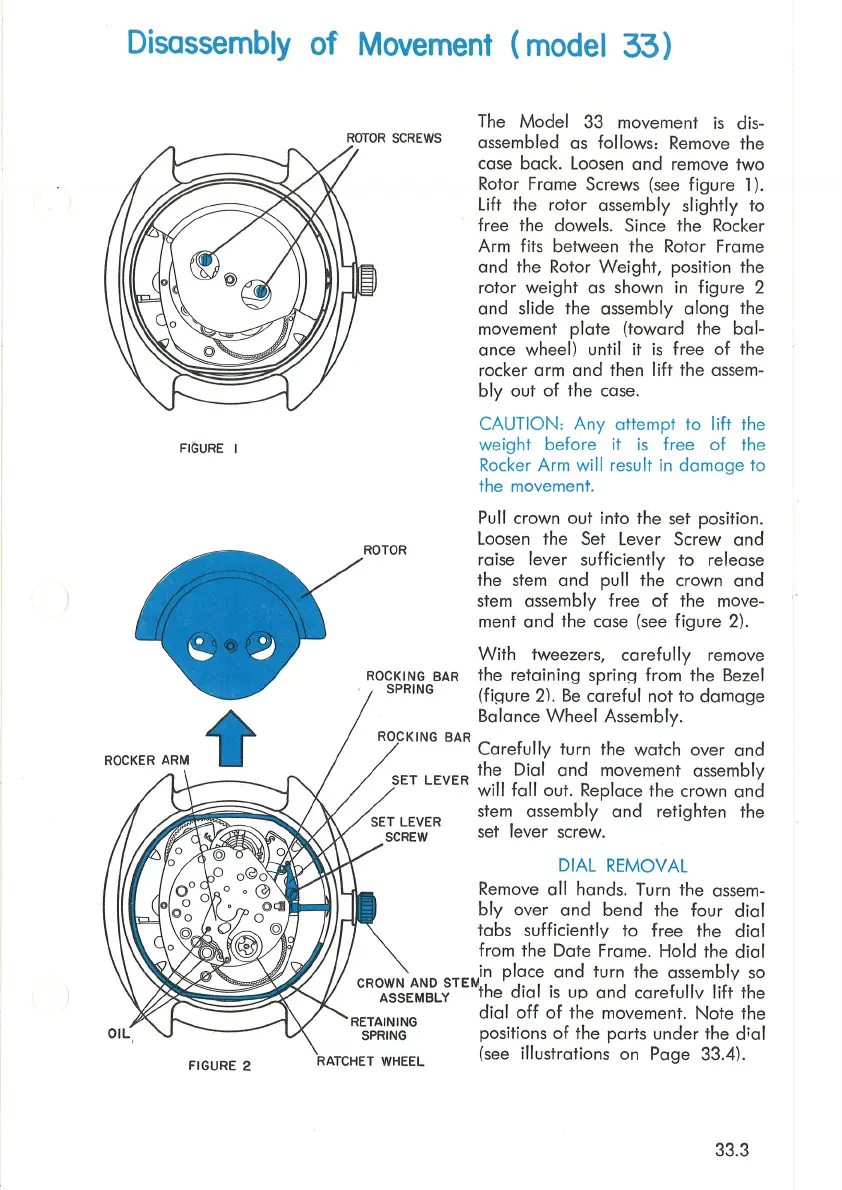

The Model 33 movement is dis-
assembled as follows: Remove the
case
back . Loosen and remove two
Rotor Frame Screws (see figure 1 ).
Lift the rotor assembly slightly to
free the dowels. Since the Rocker
Arm fits between the Rotor Frame
and the Rotor Weight, position the
rotor weight as shown in figure 2
and slide the assembly along the
movement
plate (toward the bal-
ance wheel) until it is free of the
rocker
arm and then lift the assem-
bly out of the case.
CAUTION: Any attempt to lift the
weight before it is free of the
Rocker Arm
will result in damage to
the movement.
Pull crown
out into the set position.
Loosen the Set Lever Screw
and
raise lever sufficiently to release
the stem
and pull the crown and
stem assembly free of the move-
ment
and the case (see figure 2).
With tweezers, carefully remove
ROCKING BAR the retaining sprinq from the Bezel
SPRING (fiqure 21. Be careful not to damage
Balance Wheel Assembfy.
ROCKING BAR
Carefully turn the watch over and
SET LEVER th: Dial and movement assembly
will fall out. Replace the crown and
stem assembly and retighten the
set lever screw.
DIAL REMOVAL
Remove
all hands. Turn the assem-
bly over and bend the four dial
tabs sufficiently to free the dial
from the Date Frame. Hold the dial
in place and turn the assembly so
CROWN AND STEM h d· I . d f II I. h
ASSEMBLY t e Ia IS UP an care U V 1ft t e
RATCHET WHEEL
dial off of the movement. Note the
positions
of the parts under the dial
(see illustrations on Page 33.4).
33.3
