50
.8

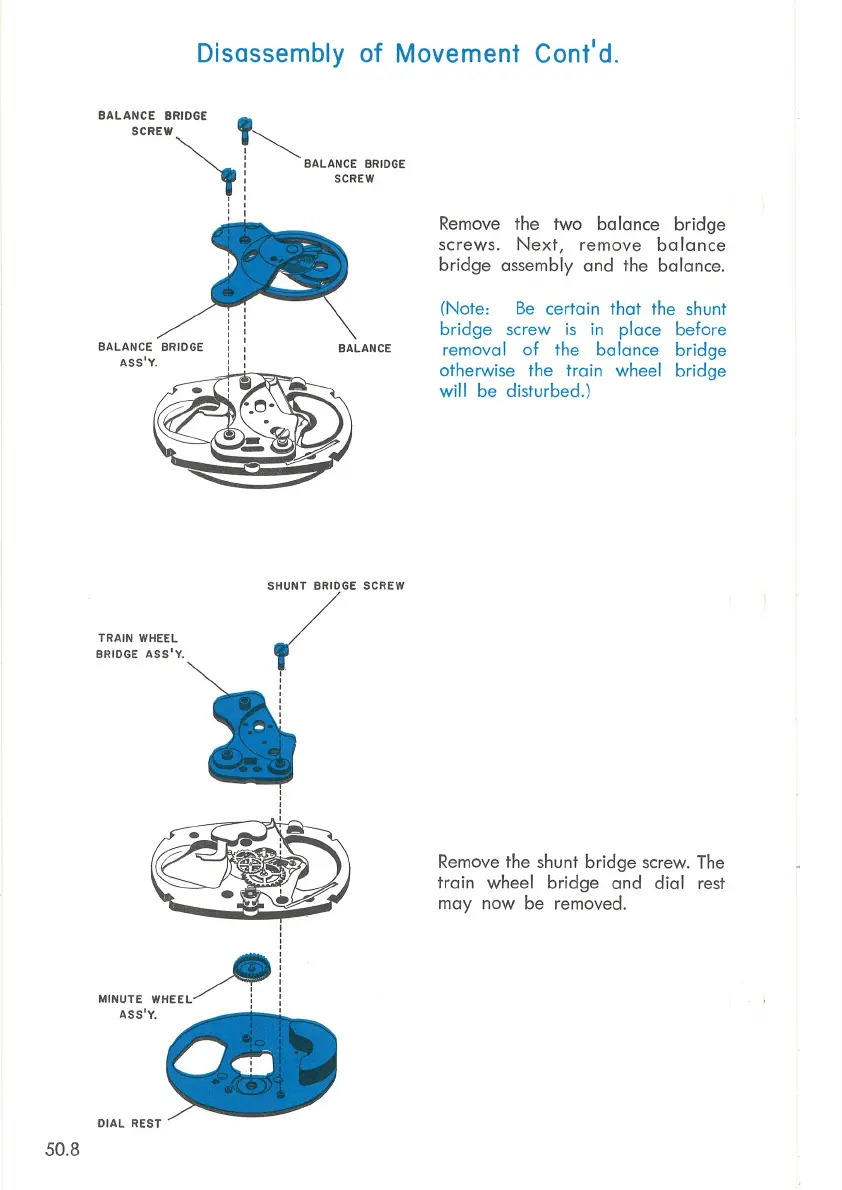

Disassembly
of
Movement
Cont'd.
BALANCE
BRIDGE '
SCREW
~
BALANCE BRIDGE
ASS
1
Y.
TRAIN WHEEL
BRIDGE ASS ' Y.
DIAL
REST
! BALANCE
BRIDGE
: SCREW
I
1 I
I I
: I
BALANCE
'7
"'""
'
I
Remove the
two
balance
bridge
screws
.
Next,
remove
balance
bridge
assembly
and
the balance.
(Note:
Be
certain
that
the shunt
bridge
screw
is
in
place before
removal
of
the balance
bridge
otherwise the
train
wheel
bridge
will
be
disturbed.)
Remove the shunt
bridge
screw. The
train
wheel
bridge
and
dial
rest
may
now
be
removed.
