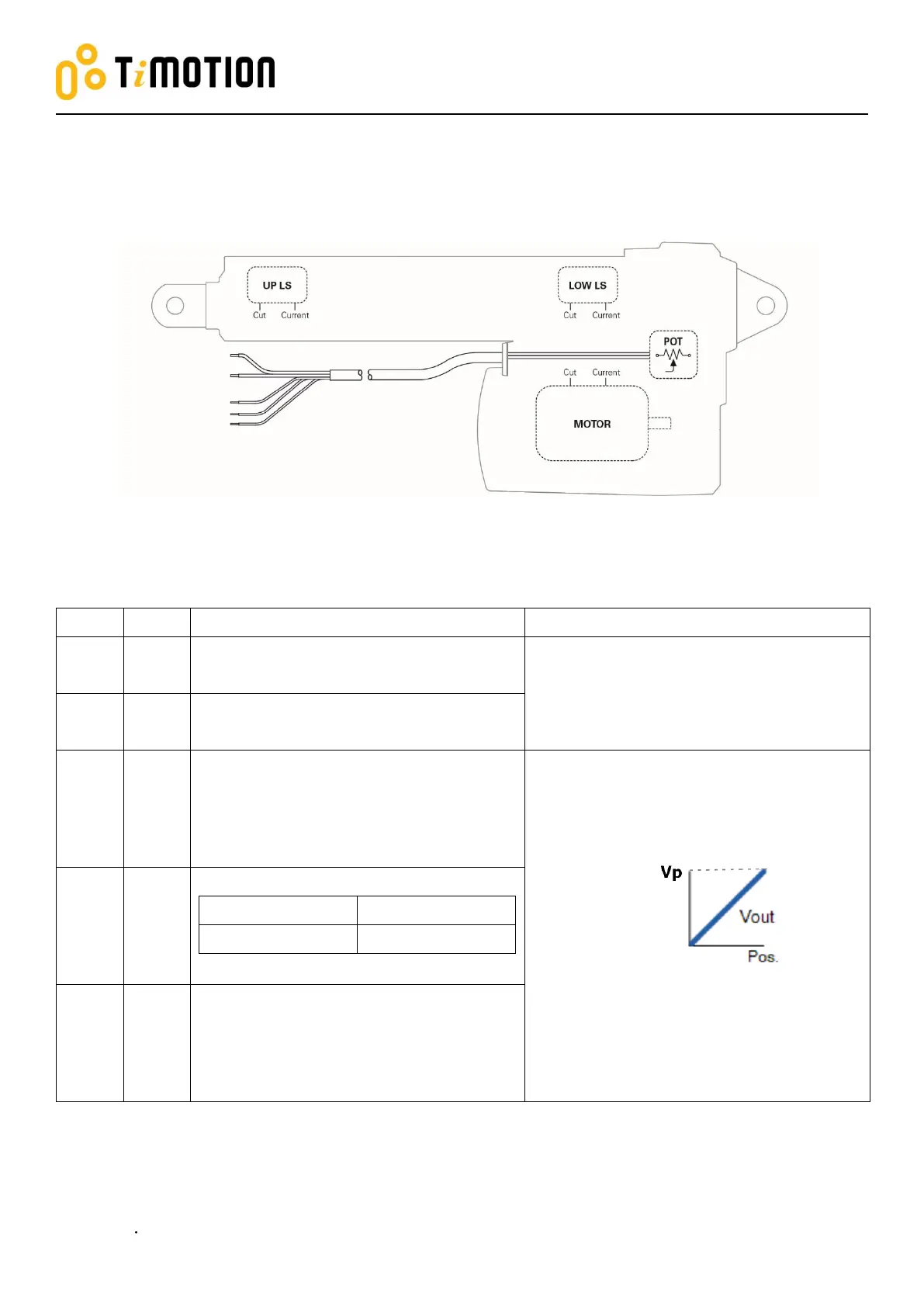

2.3.8 Two limit switches and POT
The actuator is equipped with two limit switches to cut the current of the motor when the actuator moves to
the end of each stroke, and with POT position signal output.
*Please refer to 2.3.2 for the cut current module.
Wire
AWG
Description
Spec
Yellow
20
Connect to Vm+ to extend the actuator
Connect to Vm- to retract the actuator
24V version: Input voltage 18~32 V DC
12V version: Input voltage 9~16 V DC
Green
20
Connect to Vm- to extend the actuator
Connect to Vm+ to retract the actuator
White
26
POT signal ground.
POT output signal type is the voltage in
proportion to the reference voltage input,
which is relative to the position of the
actuator.
The recommended power of the POT input
is <2W.
The brand and spec of the potentiometer
embedded is BouRns, 0~10Kohm, 10 turns.
Red
26
POT signal output Vout.
Fully retracted
Fully extended
0V
Vp
Black
26
POT reference voltage input Vp, 5~32V DC
(Recommended: 10V).
Yellow
Green
White
Red
Black
