Timotion TA2P - Cable

User Manual-TA2P
Version C May 2020
9 of 21
9
Φ4.6 mm
Φ1.5mm
mmmm
Power cable: 20AWG
Φ5 mm
Φ1.5 mm
φ1 mm
Signal cable: 26AWG
Power cable: 20AWG
2.2.2 Cable
The actuator is supplied with a power cable (and/or signal cable). The standard cable, for industrial
applications, has/have flying leads in the end for the user’s equipment connections.
*Please refer to the approval drawing of any customized cable/connector.

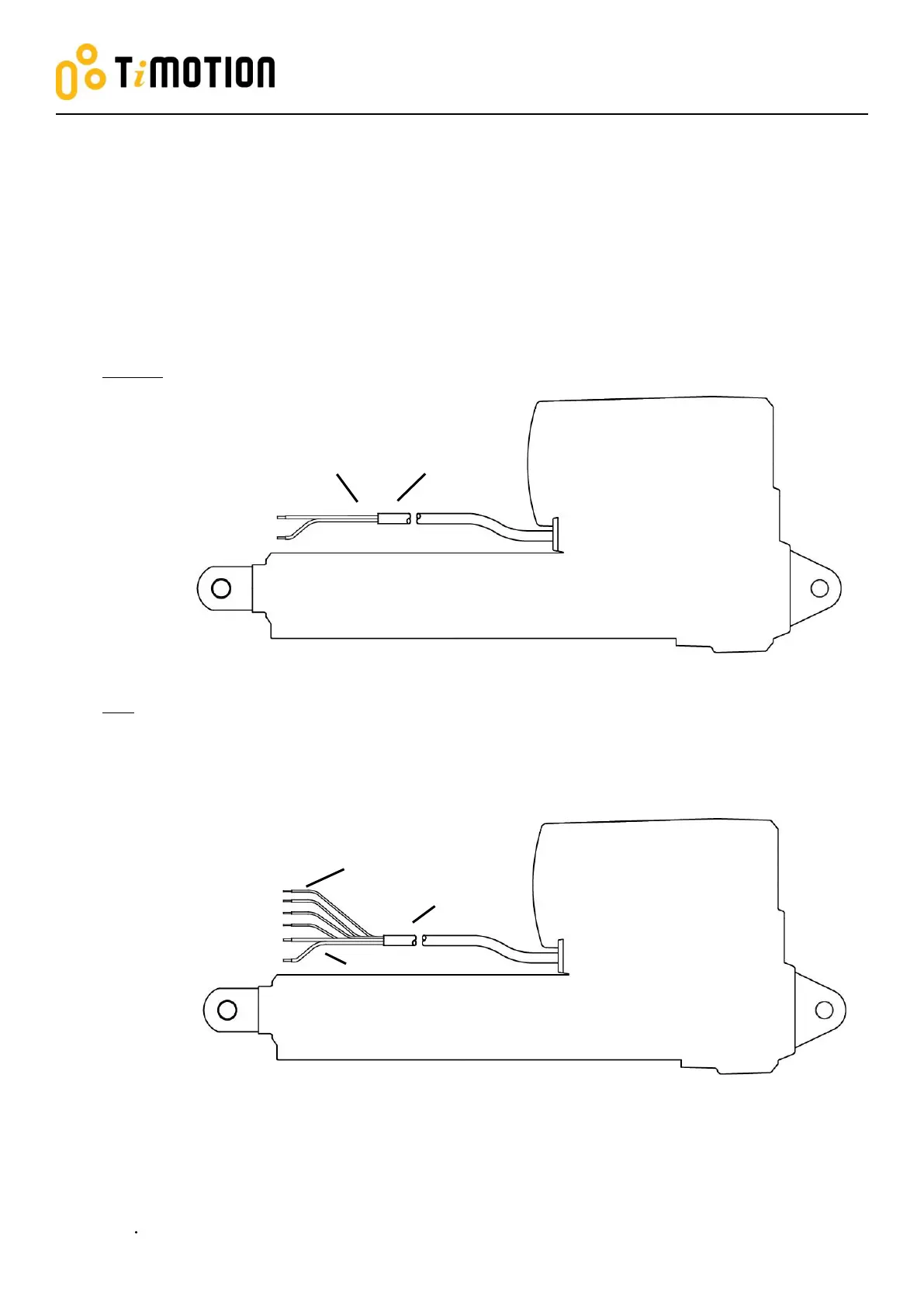

Cable without signal:
Cable with signal:
