CORROSION MITIGATION INSTRUMENTATION
P. O. BOX 1667 SAN BERNARDINO, CA 92402 TEL: (909) 890-0700 FAX: (909) 890-0736
PRODUCT INSTRUCTIONS
MODEL SR-2 SOIL RESISTIVITY METER

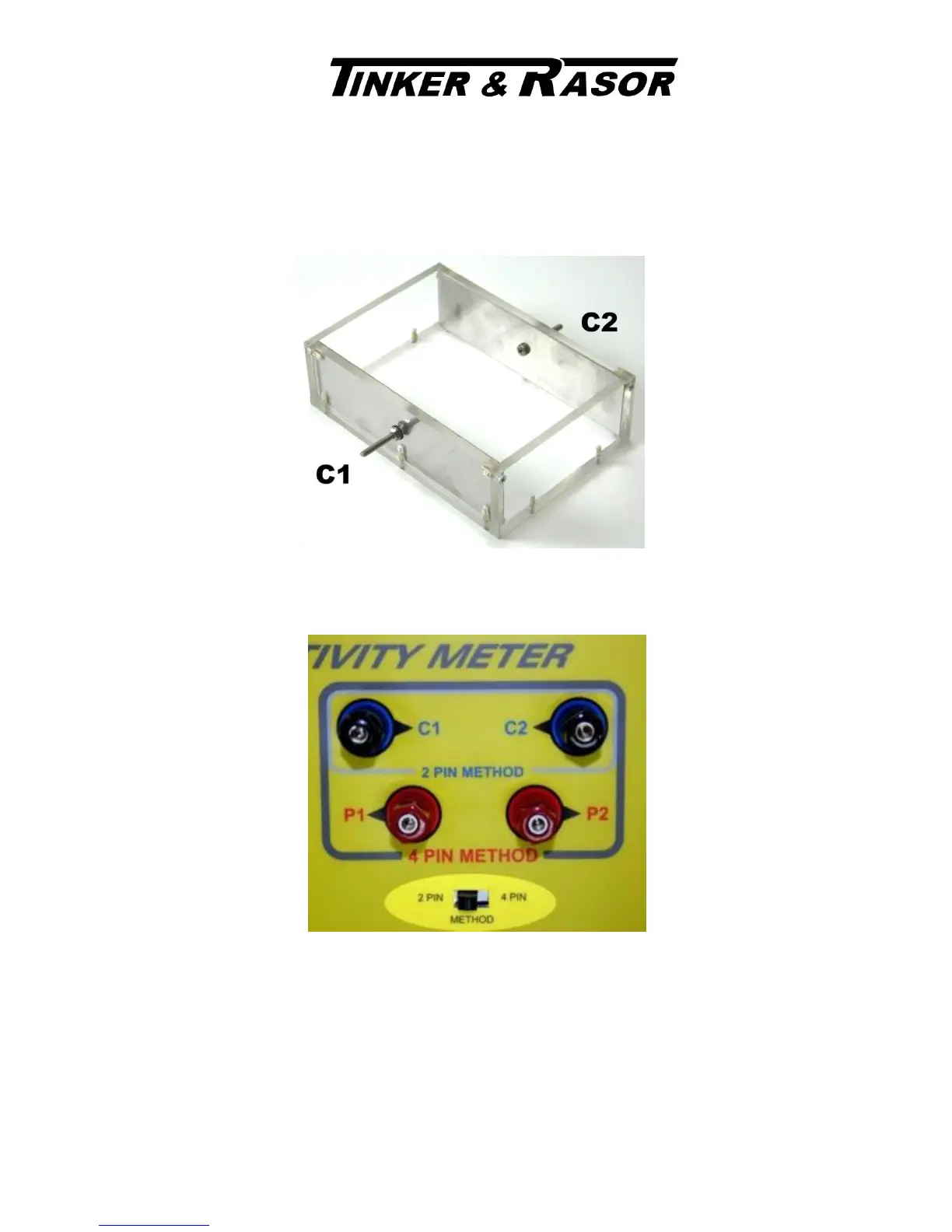

Connection Diagram for using the Model SR-2 with the Model SB-2 Soilbox
When using this soilbox, the pin selection switch should be set to “2 PIN” method. As shown below.
Model SB-2 multiplier per AASHTO T-288 is 6.67 cm
