SECTION 4: MAINTENANCE
MAINTENANCE
Proper servicing and adjustment are the key to the long life of any farm implement. With
careful and systematic inspection, you can avoid costly maintenance, time, and repair.
CAUTION
For safety reasons, each maintenance operation must be performed with tractor PTO
disengaged, mower lowered completely to ground, and tractor engine shut off with ignition key
removed.
• After using the mower 2 hours, check all bolts to be sure they are tight and check drive
belt tension.
KNIFE REPLACEMENT
IMPORTANT: Make sure that the replacement knife is the same type and similar weight as the
others on the mower. This will keep the rotor rotation balanced. Hammer blade is the standard
configuration of this mower. If required, Y-type blade is optional.

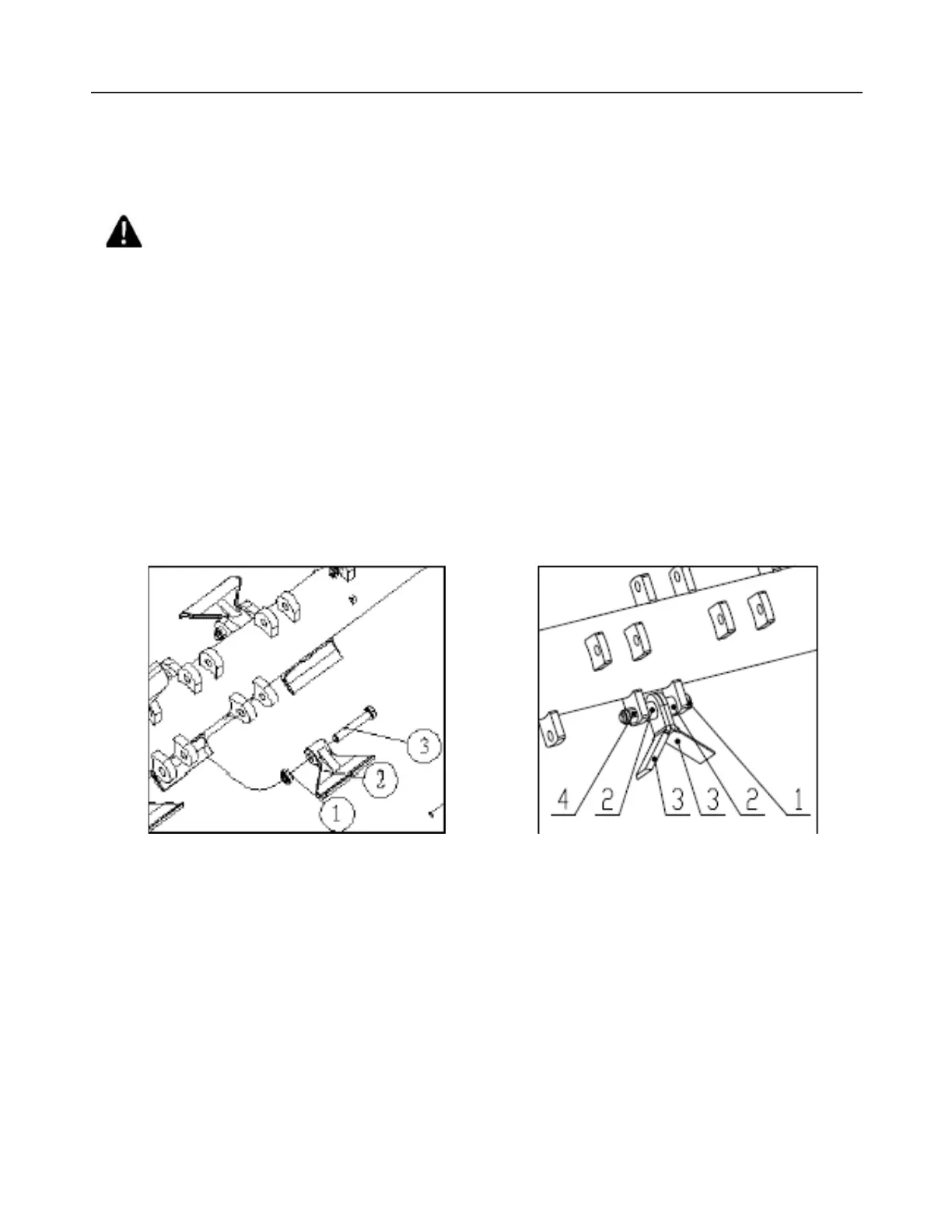

Figure 4-1: Hammer Blade Replacement Figure 4-2: Y-Type Blade Replacement
1. Remove locknut (#1), bolt (#3) for hammer blade or bolt (#1), spacer (#2), locknut (#4) for
Y-type blade.
2. Replace new hammer blade or Y-type blade and reinstall bolt & locknut as well as
retighten it.
NOTE: The Y-type blade have a crushing edge on both the leading and trailing edge. When the leading
edge wears out, you can continue to use just turn existing blade around 180 degree and reinstall it.
V-BELT INSTALLATION
