9
ASSEMBLY
The assembly instruction will guide you to finish the final assembly of your new mower.
TOOLS REQUIRED
• ½” Ratchet wrench with 19mm sleeve,
• 17-19 Spanner.
• TORQUE APPLICATION
• Refer to bolt torque in the Appendix.
INSTALLING BOOT SUB-ASSEMBLY
1. Remove the packaging of Boot sub-assembly, pull out the R pin from the Boot
subassembly as well as the Boot pin.
2. Insert the Boot weldment into the tube on the hood panel as well as the Boot pin
and insert R pin into the hole on the Boot pin.

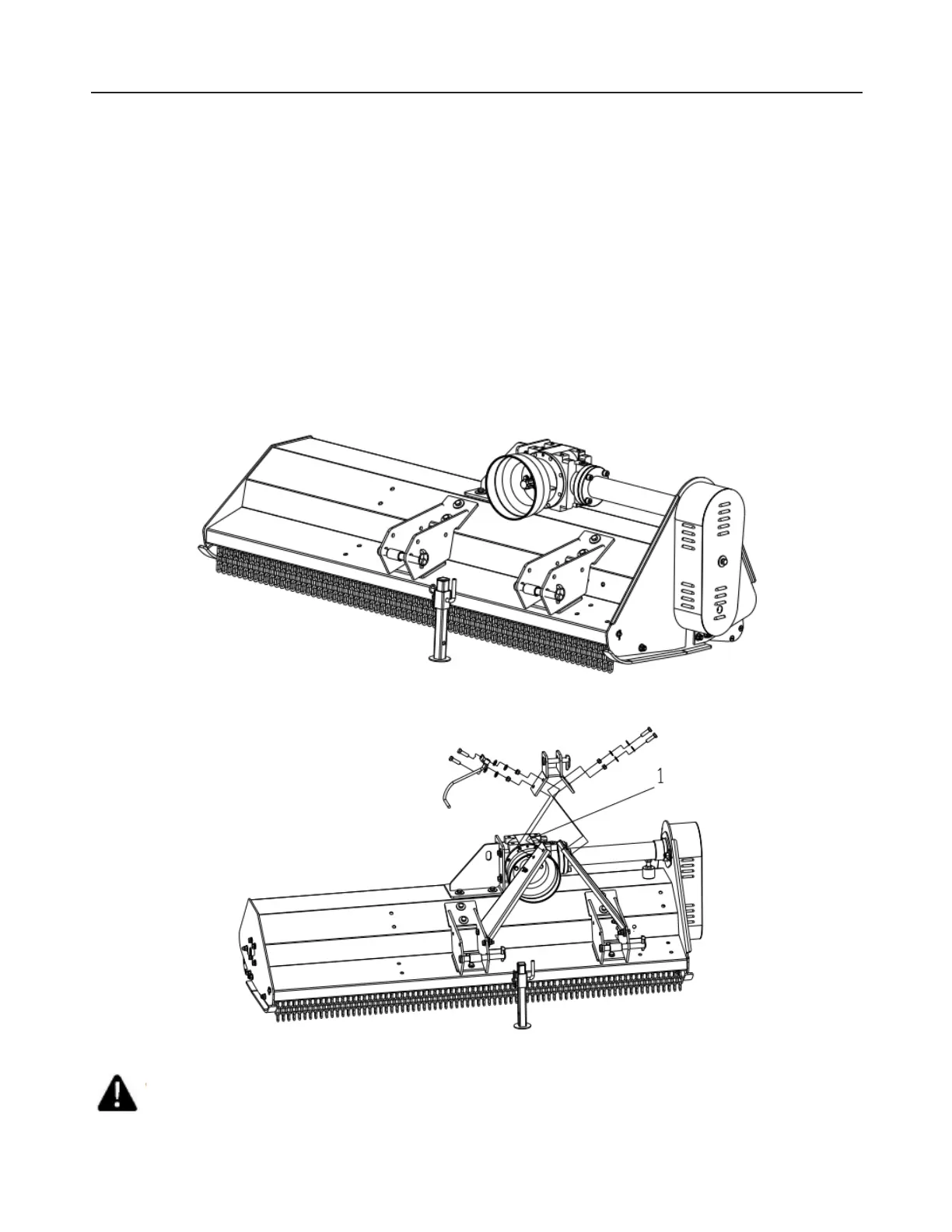

Figure 1-6: Installing Boot Sub-Assembly
Figure 1-8: Installing Hitch Bracket Weldment – Upper and Fittings
WARNING
FILL THE GEARBOX WITH PROPER AMOUNT OF SAE 90 GEAR OIL BEFORE OPERATION.
