Titan Attachments FM72 - Page 11

11
KEY
DESCRIPTION
QTY
(1) Bolt M16x95 2
(2) Plain Washer 16 4
(3)
Wheel Frame
1
(4)
Spring Washer 16
2
(5)
Nut M16
2
(6)
Large Plain Washer 8
1
(7)
Spring Washer 8
1
(8)
Bolt M8x16
1
LABLE 6: Wheel Frame and Fittings List
The detailed description of Upper Lift Bracket and fittings

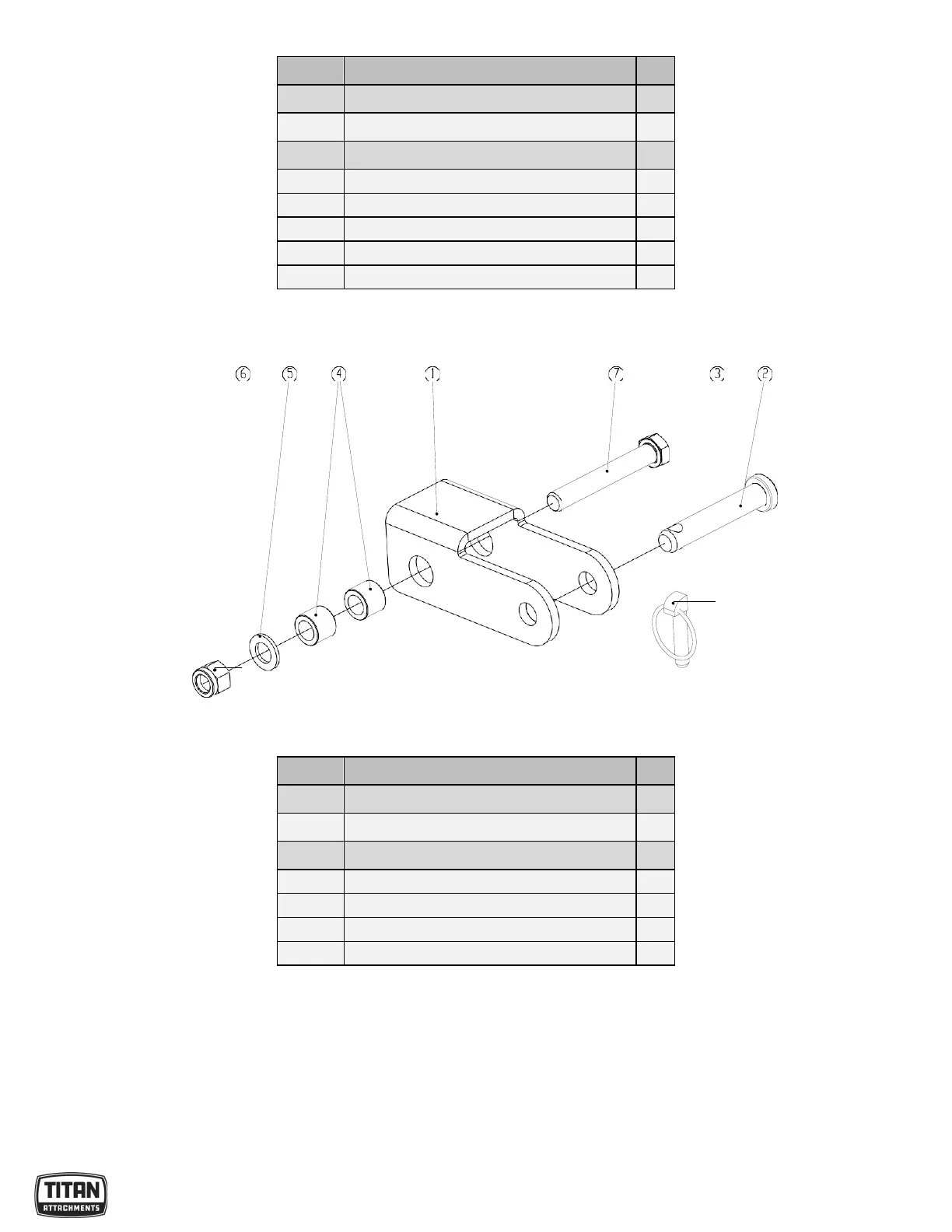

FIGURE 8: Upper Lift Bracket and Fittings
KEY
DESCRIPTION
QTY
(1) Upper Lift Bracket 1
(2)
Hitch pin-Upper
1
(3)
Safety Lock Pin
1
(4)
Bushing
2
(5)
Plain Washer 16
1
(6)
Locknut M16
1
(7)
Bolt M16x110
1
LABLE 7: Upper Lift Bracket and Fittings List
