Accessories
Airless Tip Selection
Tips are selected by the orice size and fan width. The proper
selection is determined by the fan width required for a specic job
and by the orice size that will supply the desired amount of uid
and accomplish proper atomization.
For light viscosity uids, smaller orice tips generally are desired.
For heavier viscosity materials, larger orice tips are preferred.
Please refer to the chart below.
NOTE: Do not exceed the sprayer’s recommended tip
size.
The following chart indicates the most common sizes and the
appropriate materials to be sprayed.
Tip Size Spray Material Filter Type
.011 – .013 Lacquers and stains 100 mesh filter
.015 – .019 Oil and latex 60 mesh filter
.021 – .026 Heavy bodied latex and blockfillers 30 mesh filter
Fan widths measuring 8” to 12” (20 to 30 cm) are preferred
because they offer more control while spraying and are less likely
to plug.
Liquid Shield Plus
Cleans and protects spray systems against
rust, corrosion and premature wear. Now with
-25º anti-freeze protection.
Part # Description
314-483 ......4 ounce bottle
314-482 ......1 quart bottle
Piston Lube
Specially formulated to prevent materials from
adhering to the piston rod, which becomes
abrasive to the upper seals. Piston Lube will
break down any material that may accumulate
in the oil cup and keep it from drying.
Part # Description
314-481 ......4 ounce bottle
314-480 ......8 ounce bottle
Miscellaneous
Part # Description
490-012 ......Hose Coupling, 1/4” x 1/4”
730-397 ......High Pressure Fl. Gauge
314-171 ......Lubriplate, 14 ounce individual
314-172 ......Lubriplate, 6 lb. can
English

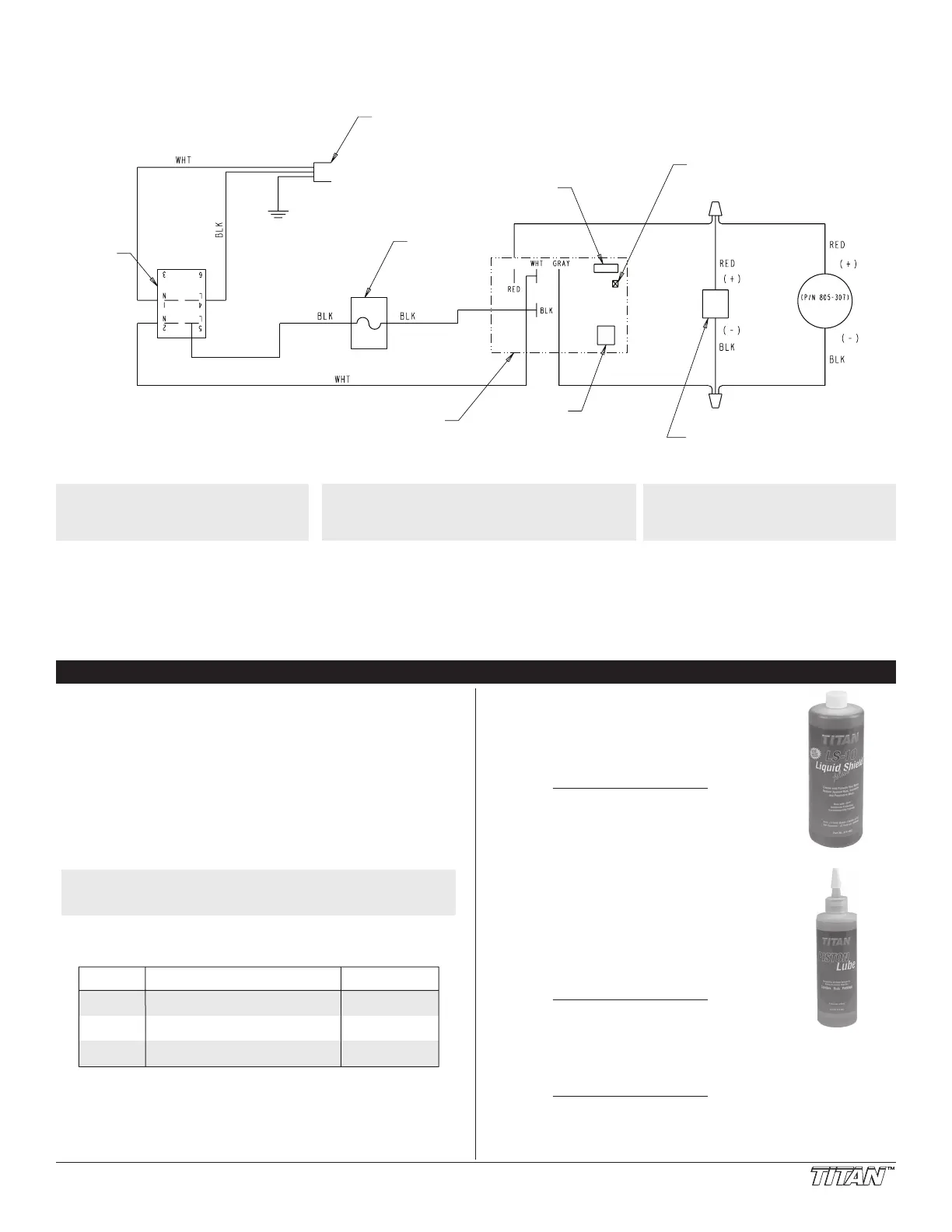

ElectricalSchematic•Schémaderaccordementélectrique•Esquemaeléctrico
P/N 704-548
Transducer
Transducteur
Transductor
P/N 805-402
PC board assembly
PC assemblage de cartes
PC bordo de la asamblea
P/N 9850936
Switch
Interrupteur
Interruptor
Power Cord
Cordon d'alimentation
Cable de alimentación
P/N 805-404
High-rider
High-rider
High-rider
P/N 805-363
Skid
Skid
Skid
P/N 0522007
L.E.D.
P/N 704-211
Circuit breaker
Disjoncteur
Disyuntor
Potentiometer
Potentiomètre
Potenciómetro
P/N 800-904
P/N 0516360
Wire nut
Fil écrou
Alambre de tuerca
P/N 0516360
Wire nut
Écrou de fil
Alambre de tuerca
P/N 0522018
Cap assembly
Ensemble d’embout
Ensamblaje de tapa
Motor
Moteur
Motor
NOTA: Todo trabajo eléctrico debe
realizarlo un centro de
servicio autorizado.
NOTA: Tous les travaux d’électricité doivent
être effectués par le personnel d’un
centre de service autorisé.
NOTE: All electrical work should be
performed by an authorized
service center.
