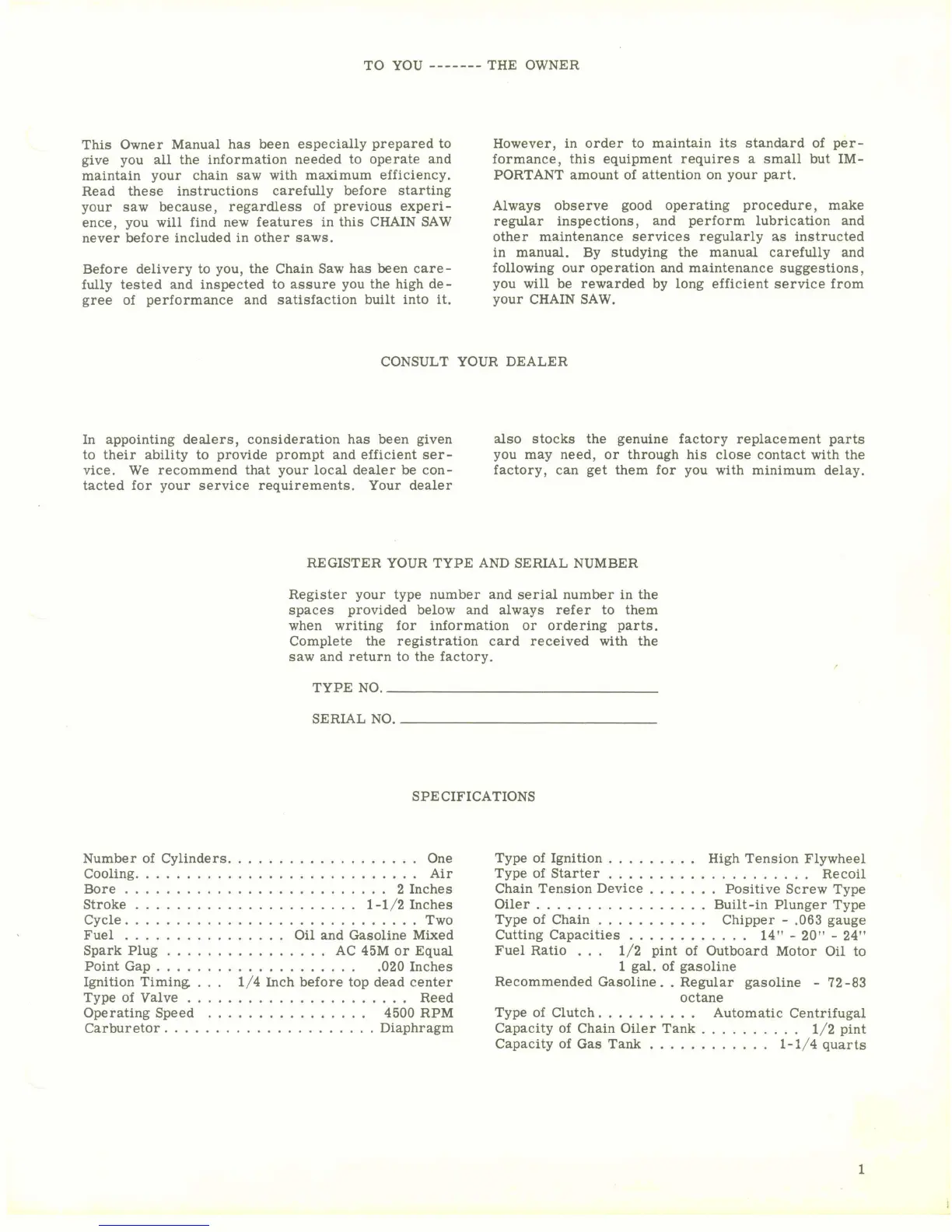

Titan 4800 SERIES User Manual

TO you ------- THE OWNER
This Owner Manual has been especially prepared to
give you
all the information needed to operate and
maintain your chain saw with maximum efficiency.
Read these instructions carefully before starting
your saw because, regardless of previous experi-
ence, you will find new features in this CHAIN SAW
never before included in other saws.
Before delivery to you, the Chain Saw has been care
-
fully tested and inspected to assure you the high de-
gree of performance and satisfaction built into
it.
However, in order to maintain its standard of pir-
formance, this equipment requires a small but IM-
PORTANT amount of attention on your part.
Always observe good operating procedure, make
regular inspections, and perform lubrication and
other maintenance services regularly
as instructed
in manual. By studying the manual carefully and
following our operation and maintenance suggestions,
you
will be rewarded by long efficient service from
your CHAM SAW.
CONSULT YOUR DEALER
In appointing dealers, consideration has been given
to their ability to provide prompt and efficient ser-
vice. We recommend that your local dealer be con-
tacted for your service requirements. Your dealer
also stocks the genuine factory replacement parts
you may need, or through his close contact with the
factory, can get them for you with minimum delay.
REGISTER YOUR TYPE AND SERIAL NUMBER
Register your type number and serial number in the
spaces provided below and always refer to them
when writing for information or ordering parts.
Complete the registration card received with the
saw and return to the factory.
TYPE NO.
SERIAL NO.
SPECIFICATIONS
Number of Cylinders.
.................. One
Cooling..
.......................... Air
Bore
.......................... 2 Inches
Stroke
...................... 1 -1/2 Inches
Cycle..
........................... Two
Fuel
................ Oil and Gasoline Mixed
Spark Plug
................ AC 45M or Equal
Point Gap
.................... .020 Inches
Ignition Timing
... 1/4 Inch before top dead center
Type of Valve
...................... Reed
Operating Speed
................ 4500 RPM
Carburetor.
.................... Diaphragm
Type of Ignition
.........
High Tension Flywheel
Type of Starter
.................... Recoil
Chain Tension Device
....... Positive Screw Type
Oiler
................. Built -in Plunger Type
...........
Type of Chain
Chipper
- ,063 gauge
Cutting Capacities
............ 14" - 20" - 24"
... Fuel Ratio
1/2 pint of Outboard Motor Oil
to
1 gal. of gasoline
Recommended Gasoline.
. Regular gasoline - 72 -83
octane
Type of Clutch.
......... Automatic Centrifugal
Capacity of Chain Oiler Tank
.......... 1/2 pint
Capacity of
Gas Tank ............ 1-1/4 quarts
Courtesy of ParkinLube.com

Titan 4800 SERIES Specifications

General

Brand	Titan
Model	4800 SERIES
Category	Chainsaw
Language	English
