Titan MNRSPRDRv2 - Page 9

9

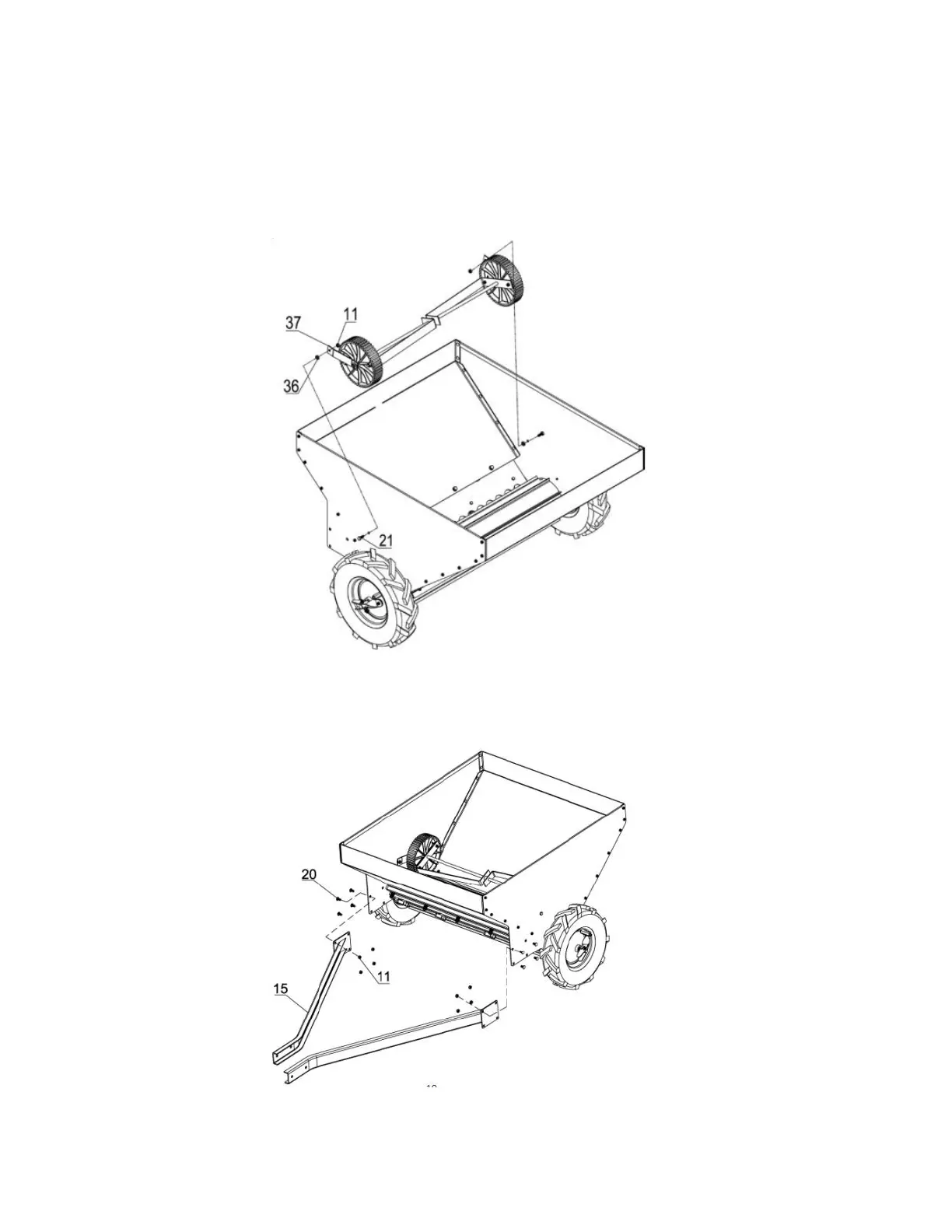

STEP 8: ATTACH THE AGITATOR ASSEMBLY
Attach the agitator assembly to the hopper, place sleeve 5 (#36) on the hopper, then lock it with
hex bolt M8x20 (#21) and nylon lock nut M8 (#11). Ensure that the fixed plate can be easily
rotated.
4
STEP 9: ATTACH TOW BAR
Attach tow bar (#15) to the side plate using M8x16 carriage bolt (#20) and M8 nylon lock nut
(#11).
