ASSEMBLY INSTRUCTIONS
MANURE SPREADER COMPONENT PARTS AND ASSEMBLY
Before beginning to assemble the manure spreader, take all parts out of the shipping crate and
inspect components to ensure there are no missing pieces. Carefully follow assembly steps 1
through 2.
TOOLS REQUIRED
• 10mm, 13mm, 17mm, 19mm Wrenches
• Screwdriver
STEP 1: CONNECT SIDE PLATES

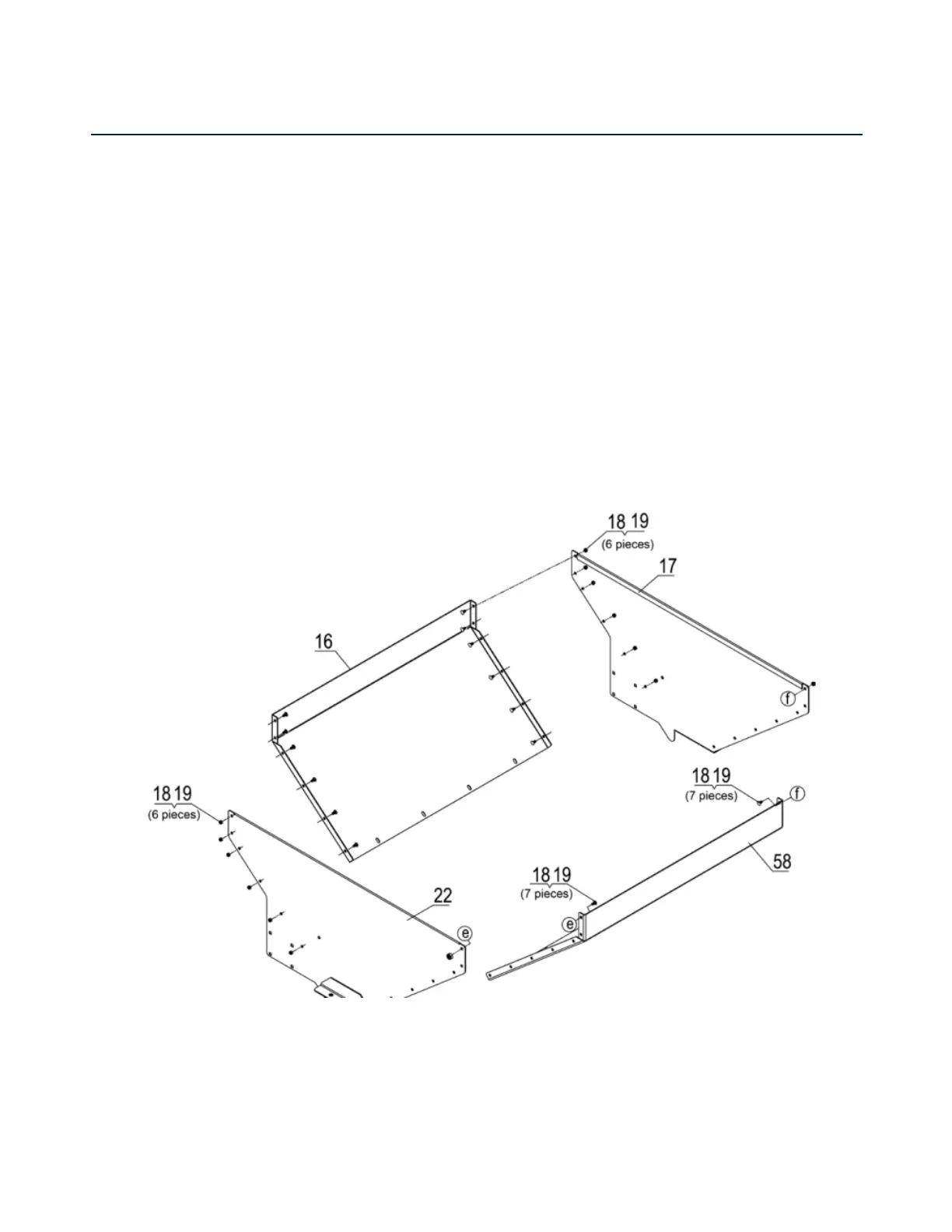

Connect right side plate (#17), left side plate (#22), rear plate (#16) and front plate (#58) using
step bolt M6x12 (#18) and nylon lock nut M6 (#19).
To Next Page
