6

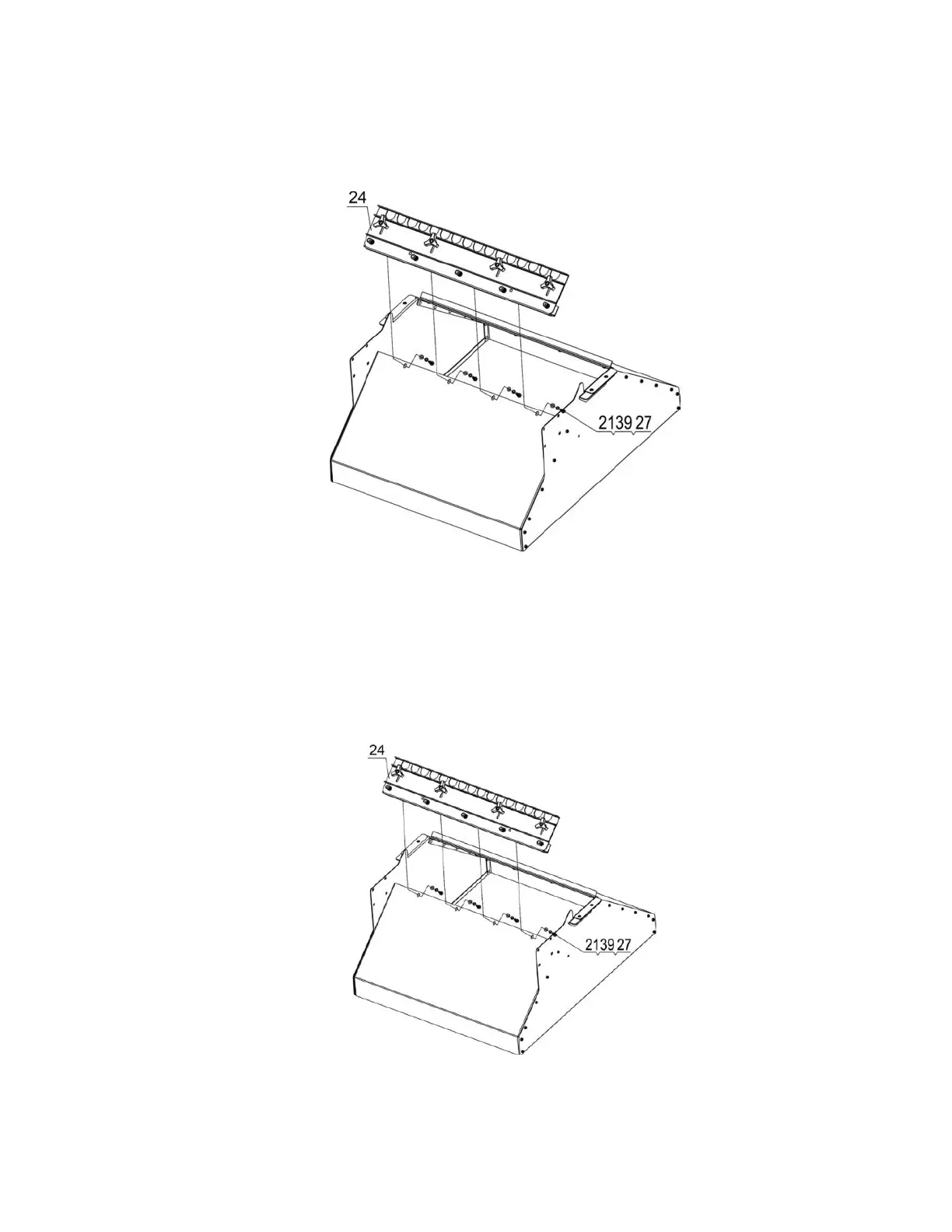

STEP 2: ATTACH PRESSING PLATE
Attach discharge plate (#24) to the hopper assembly using hex bolt M8x20 (#21), lock washer Ø8
(#39) and flat washer Ø8 (#27).
STEP 3: ATTACH THE DISCHARGE PLATE
Attach discharge plate (#24) to the hopper assembly using hex bolt M8x20 (#21), lock washer Ø8
(#39) and flat washer Ø8 (#27).
