7

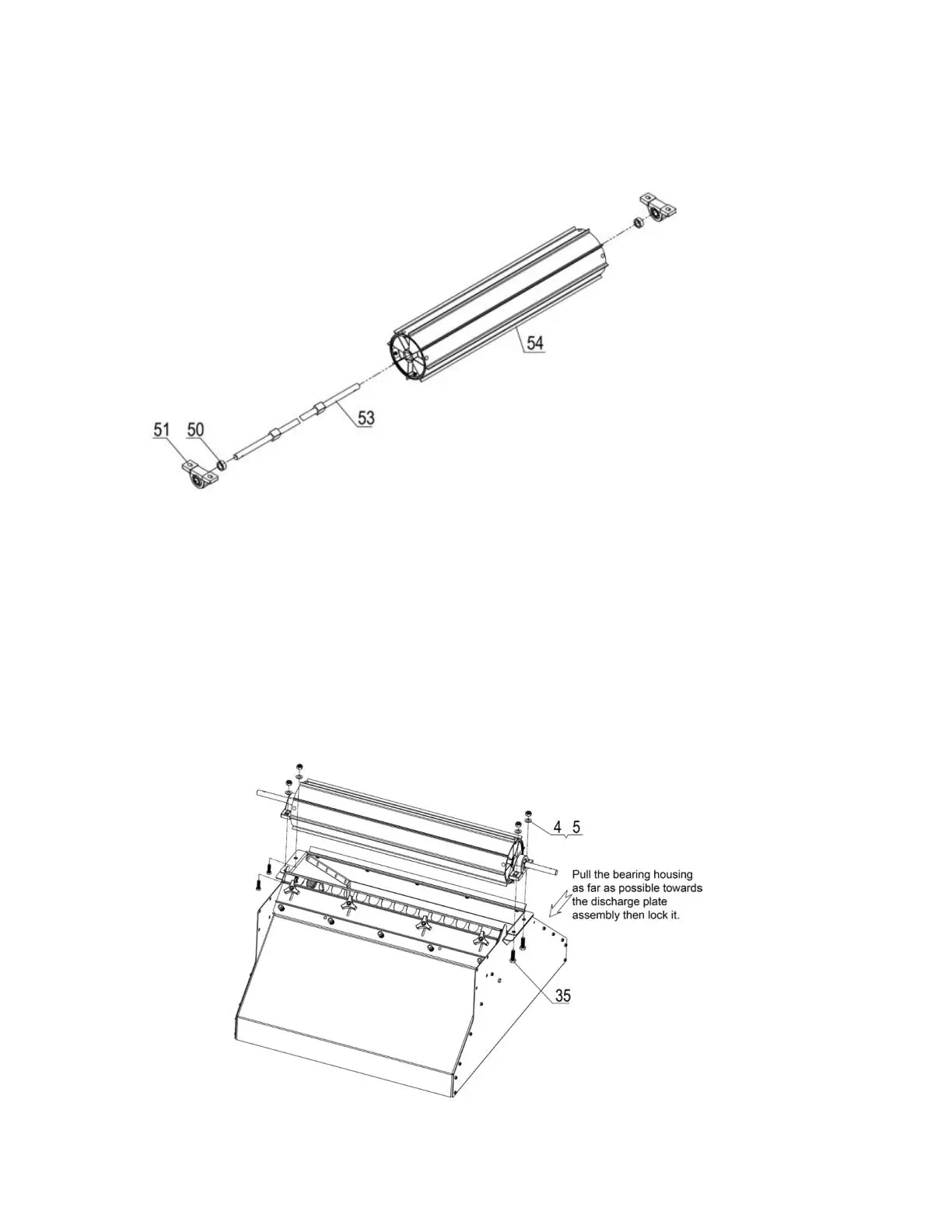

STEP 4: ATTACH THE AXLE WELDMENT
Put the axle weldment (#53) through the roller assembly (#54), then insert sleeve 14 (#50) and
rolling bearing (#51), then tighten the screw in the rolling bearing.
STEP 5: ATTACH ROLLER ASSEMBLY
Attach roller assembly to the hopper assembly using hex bolt M12x40 (#35), flat washer Ø12
(#4) and nylon lock nut M12 (#5). At the same time, insert about 5mm plates between the rollers
on both sides and the side plates of the hopper, and then move the roller as far as possible to
the hopper. Lock the bolt after visual inspection of each gap is reasonable. Finally, pull out the
plates inserted between the roller and the side plates.
