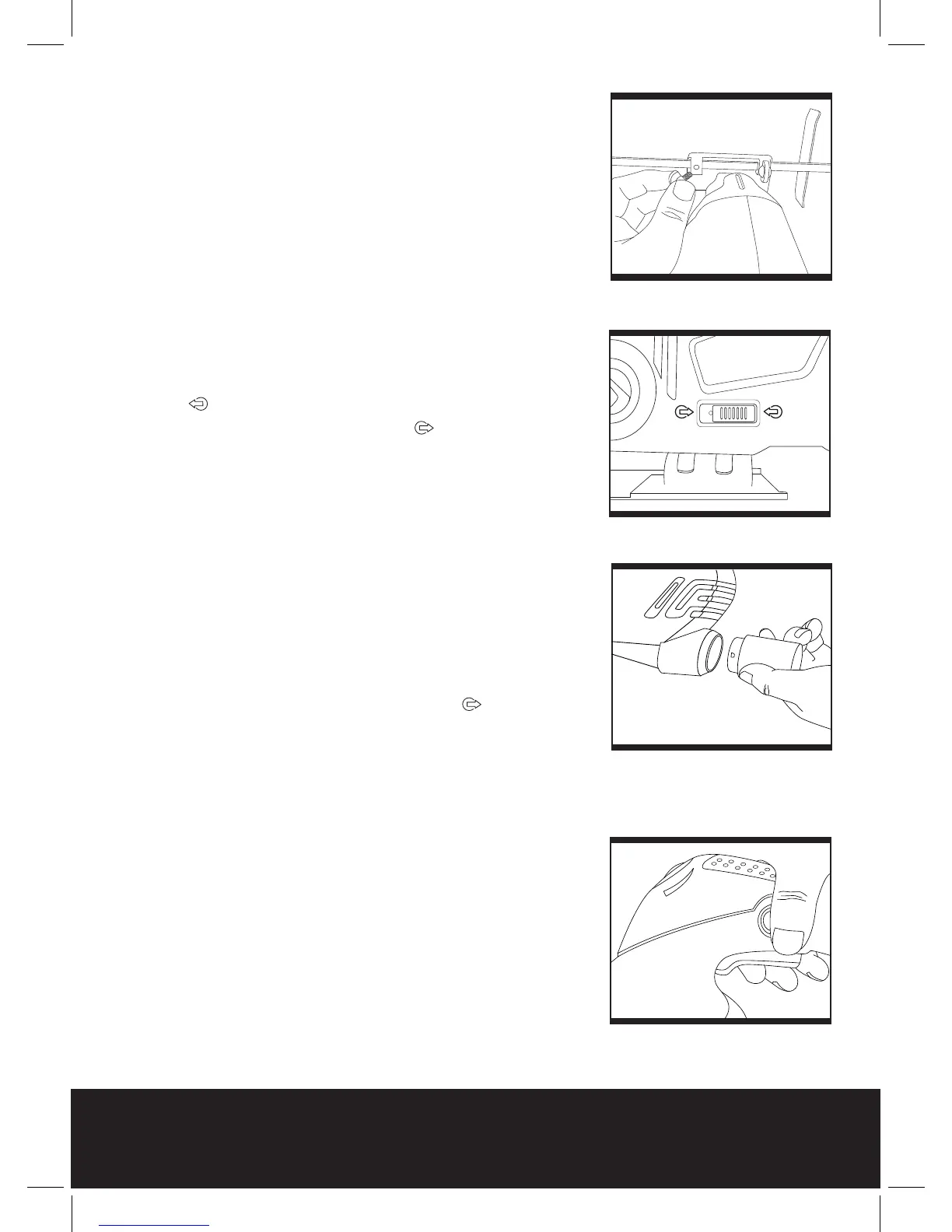

2. Using the parallel guide (Fig. 2)
Parallel guide can be used for making cuts parallel to a
work piece edge at a chosen distance. Slide the parallel
guide arm through the slot and tighten the screw (8) to
lock it into position.
This guide can be used from both sides of the base
plate.
3. Vacuum and blower selector (Fig. 3)
Slide backward the vacuum/blower selector to
position to blow away dust and chips in cutting area.
Slide forward the selector to position while
connected to a dust extraction system or household
vacuum.
4. Dust extraction (Fig. 4)
To improve dust extraction from the working area, insert
the dust extraction adaptor to the dust extraction outlet
of the jigsaw,turn clockwise to secure it, and then
connect to a dust extraction system or a suitable vacuum
cleaner. Slide forward the selector to postion .
Warning: Do not use a dust extraction system or a
vacuum cleaner when cutting metal. Sparks may ignite
residual wood dust.
5. Operating the trigger switch (Fig. 5)
To operate the Pendulum Jigsaw, depress the trigger
switch. If you wish to use the Pendulum Jigsaw
continuously, the trigger lock button can be pushed in
after the trigger switch has been depressed. To release
the lock button push in the trigger switch again.
Fig. 2
0 1 2 4 5 6 7 8 1 0 1 1 12 13 1 4 1 5
Fig. 4
Fig. 5
Fig. 3
2
3
100816_TTB285JSW_Jig Saw-EN-08.pdf 12 8/16/10 2:04 PM
