JIG SAW 750W TTB285JSW

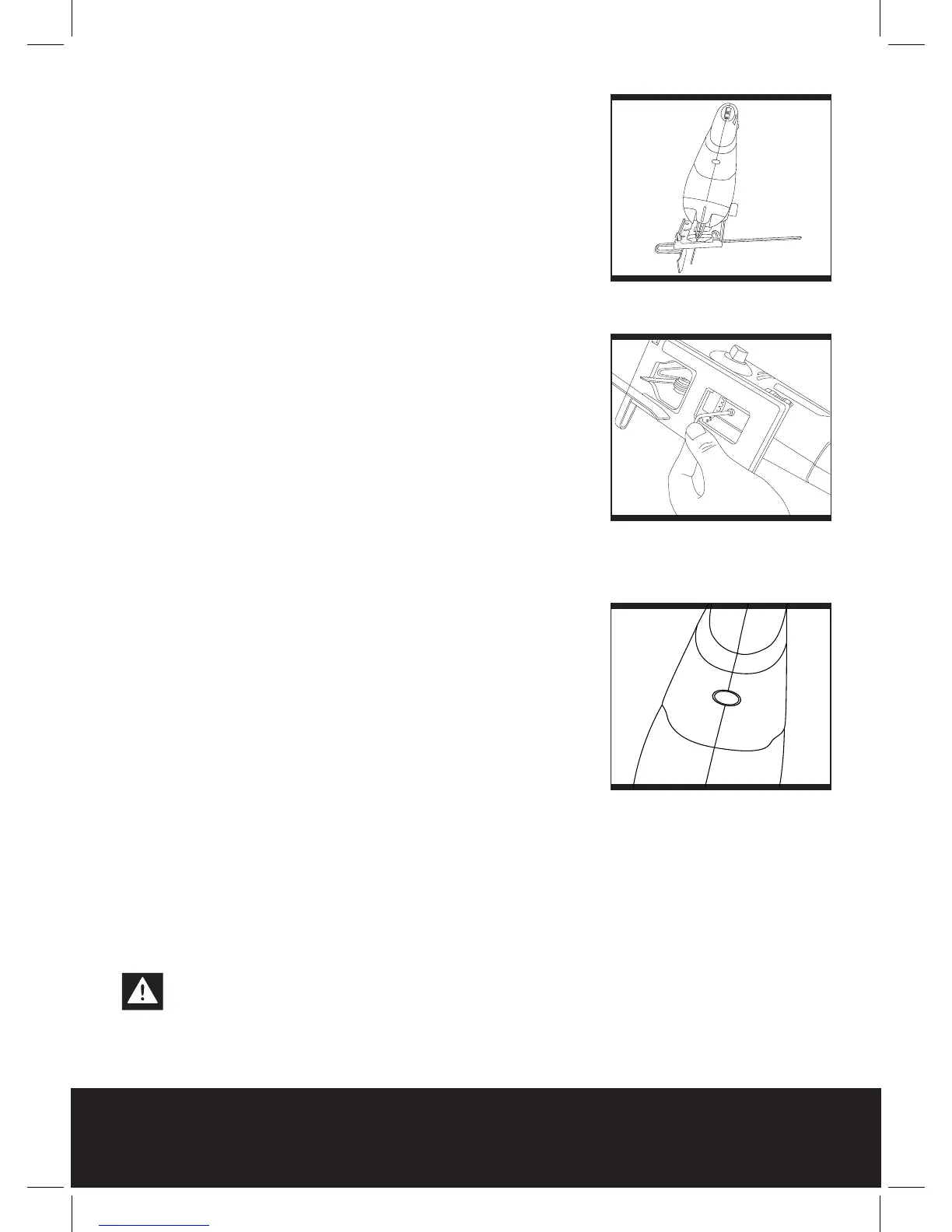

9. Angular cutting (Fig. 8)
To adjust the base plate bevel angle, loosen the screws
located under the base plate with the hex key (Fig. 9).
Move the base plate backwards so that the teeth at the
front no longer engage with the retaining spigot and
the base plate can be tilted to the left or right.
If the required angle is 15°, 30° or 45° to the left or right
or 0°, push the base plate forwards so that the
appropriate teeth on the plate mesh with the spigot.
Hold the base plate at the desired angle and firmly
tighten the screws with the key.
Bevel angles are stamped onto the bracket on the
underside of the base. For accurate work it is may be
necessary to make a trial cut.
10. Using the laser and LED light (Fig. 10)
1. To use LED light,simply press down the Laser/LED
light on/off switch.
2. If you push a second time, the LED light switches off
and the laser on.
3. If you push another time, both laser and LED are
working.
4. Push again the Laser/LED light on/off switch to stop
the laser & LED light.
Note:
- The saw dust may block the laser beam, clean the
laser generator periodically.
- Switch off the laser when you stop the machine.
The laser does not switch off automatically.
Caution: Switch off the laser when stop the
machine. Never stare directly into the laser beam
and never point the beam at anybody.
Fig. 8
