TTI932CHN
22
Getting
started...
EN
NOTE:
Take care of small parts that are removed during assembly
or when making adjustments. Keep them secure to avoid loss.
Saw chain and guide bar
Assemble the guide bar (12) and saw chain (11) before operation.
Use only the guide bar (12) and saw chain (11) according to the technical
parameter of this product.
WARNING!
Always use a saw chain designed as "low-kickback"
or a saw chain which meets the low-kickback requirements! A
standard saw chain (a chain which does not have the kickback
reducing guard links) should only be used by an experienced
professional operator
Nevertheless, a low-kickback saw chain does not completely
eliminate kickback! A low-kickback or “safety” chain should never be
regarded as complete protection against injury! Therefore always
use a low-kickback saw chain in conjunction with other kickback
protection devices such as the front safeguard (chain brake lever)
(4)!
WARNING!
Pull the front safeguard (chain brake lever) (4) fully
backward to disengage the chain brake.

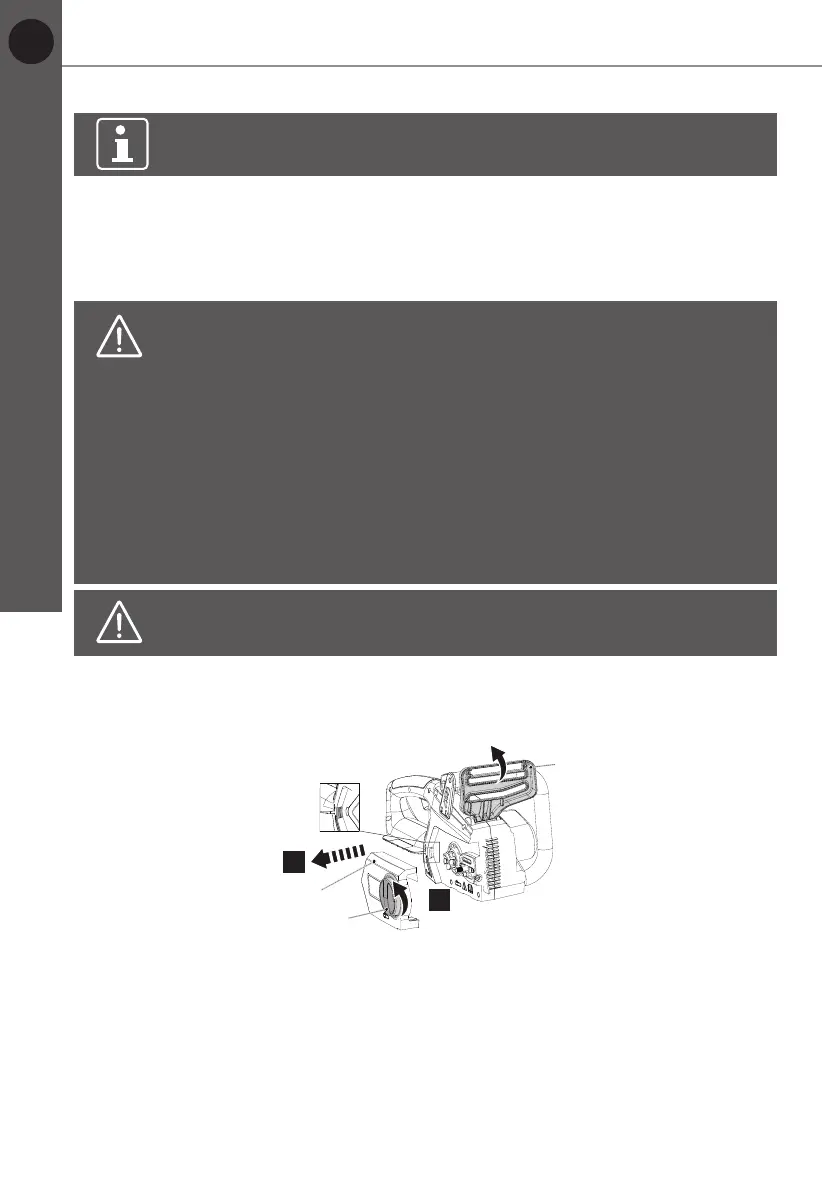

1. Place the product on a suitable at surface.
2. Unscrew the locking wheel (13) anticlockwise and then remove it together
with the chain saw cove (14) (Fig. 1).
14
13
4
2.
1.
Fig. 1
3. Spread the saw chain (11) out with the cutting edges of the chain pointing
in the direction of rotation.
Slide the saw chain (11) into the groove around the guide bar (12). Ensure
saw chain (11) is installed in correct direction of rotation (Fig. 2).
Before you start
