Pic 2Replied LBS information without GPS satellites signal.
smcc:27a4 1223: Real-time LBS data.
Time:08/00/00 LBS positioning time.
If you received positioning information as picture 2, please take gps tracker go
to outdoor and Walking ,then you can receive the satellite signal.
2.2 Insert in the Car OBD interface

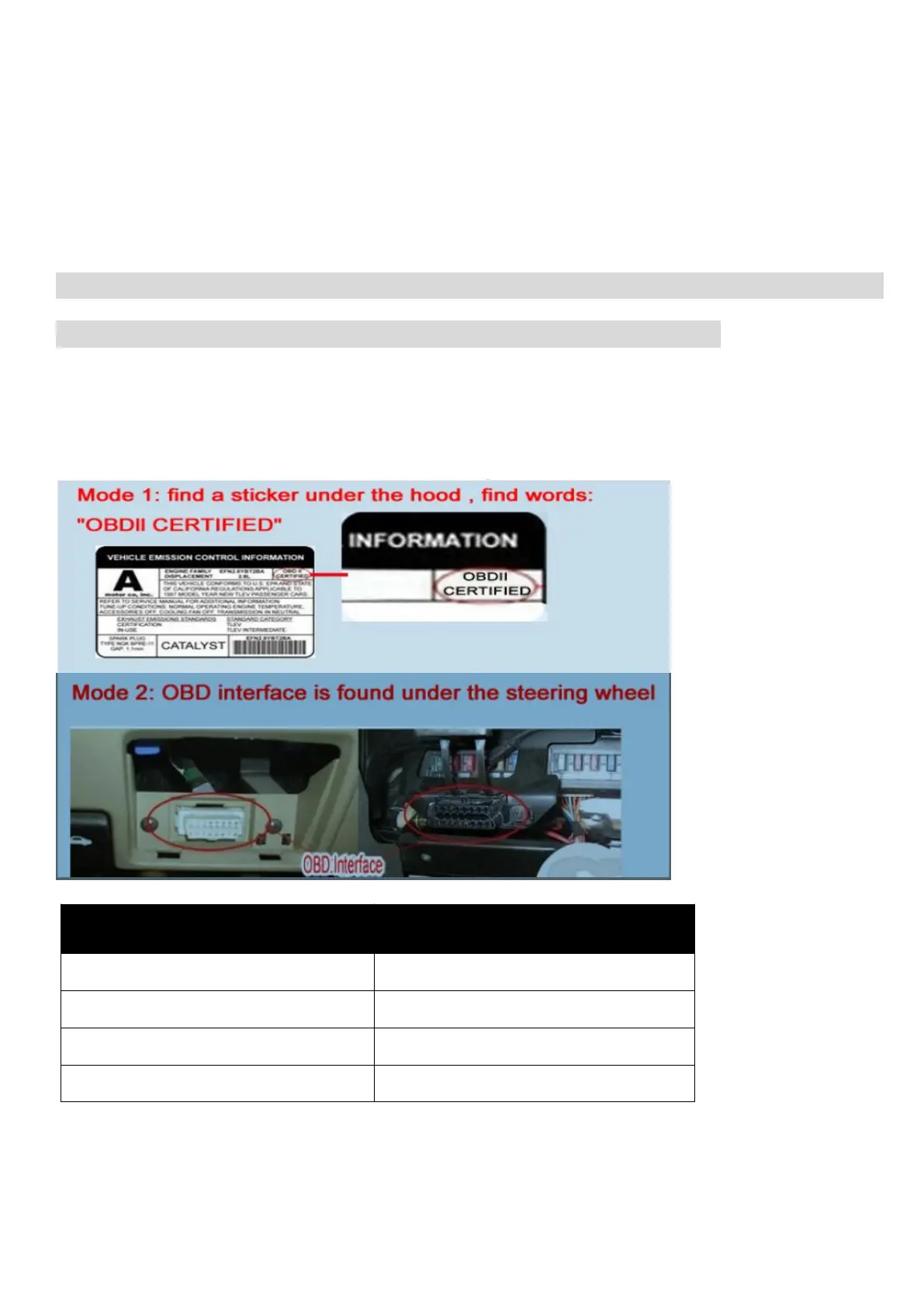

connect the device to the car obd interface ,as shown below
INDICATOR LIGHT STATUS
MEANING
green light -Solid
GSM signal connection
green light -Flash
NO GSM or searching gsm signal
blue light -Solid
GPS signal connection
blue light –quickly Flash
Searching gps signal
Note: All led will turn off after 10 minutes for best hide.if you call the
