TKO 6610 - Step 1: Insert Guide Rods

─ 10 ─
Assembly
Step 1

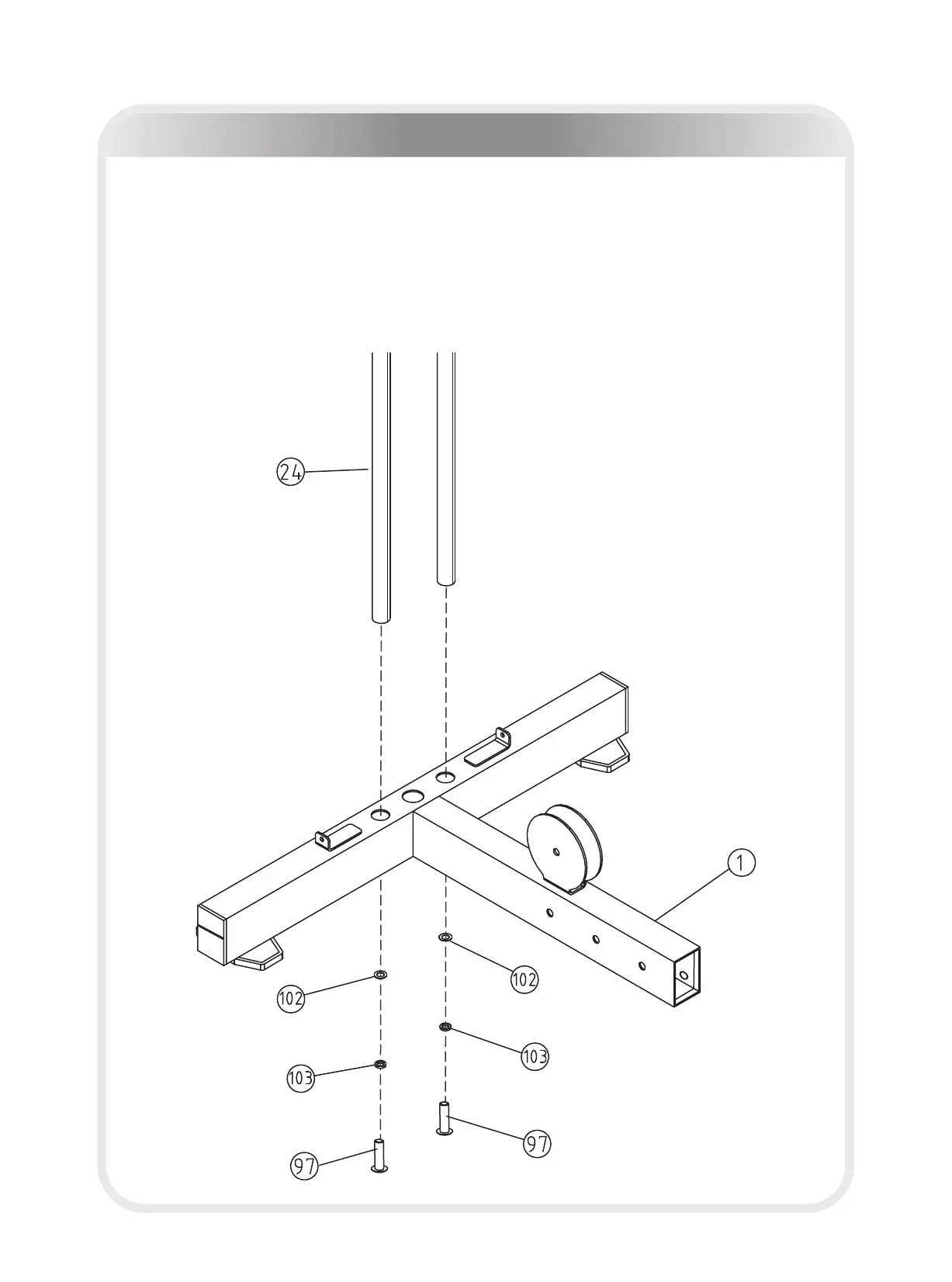

Insert the two Guide Rods (#24) into Rear Base (#1) and secure them in place
using:
two Φ11*Φ20*2 Flat Washer (#102) two Φ10 Spring Washer (#103)
two M10*25 BHCS (#97)
Note: Hand tighten bolts and Mylon Lock nuts until machine is fully assembled.
