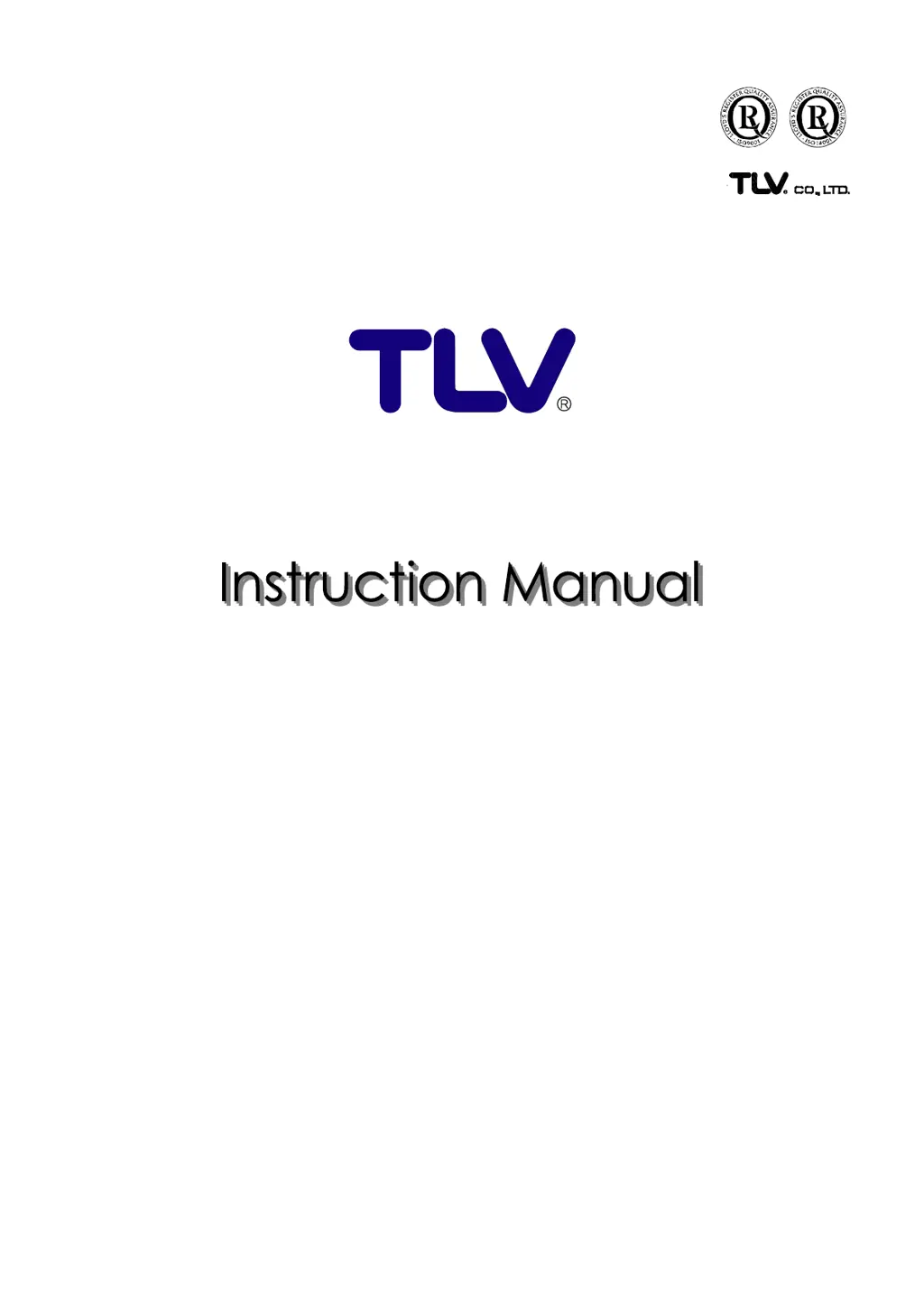

TLV P46SRN - User Manual

Questions and Answers

A
Amy JohnsonAug 6, 2025
What to do if TLV P46SRN Industrial Equipment condensate discharge is poor or blocked?
- A
  Amanda WileyAug 6, 2025
  If the condensate discharge is poor or blocked, several issues could be the cause. The module valve seat, screen, or piping might be clogged with rust or scale, in which case you should clean these parts. Alternatively, the disc could be stuck to the module valve seat, also requiring cleaning. Air binding or steam-locking might have occurred, suggesting a bypass blowdown, or closing the trap inlet valve to allow cooling. If air binding is due to a worn disc holder ring or air vent ring, replace these parts. Finally, the trap operating pressure might be below the minimum specified pressure, or there might be insufficient pressure differential between the trap inlet and outlet, so compare the specifications with actual operating conditions.
J
Jessica GarzaAug 16, 2025
Why is TLV Industrial Equipment discharging steam from the outlet (blowing)?
- T
  Timothy HarveyAug 16, 2025
  Steam discharge or leakage from the outlet can occur due to several reasons. The disc or module valve seat may have rust or scale, requiring cleaning. Alternatively, the disc or module valve seat may be damaged or worn, necessitating replacement. Improper installation can also cause this issue, so ensure the installation is correct. Trap vibration can be a factor; try lengthening the inlet piping and fastening it securely. Lastly, the trap operating pressure might be less than the minimum specified pressure, or the back pressure exceeds the allowable back pressure, so compare the specifications with actual operating conditions.
R
richard34Aug 26, 2025
How to fix steam leaking from TLV Industrial Equipment (not the outlet)?
- M
  Melissa HancockAug 26, 2025
  If steam is leaking from a place other than the outlet, it could be due to gasket deterioration or damage, in which case you should replace the gaskets. Another possibility is that improper tightening torques were used, so tighten to the proper torque.

Summary

Safety Considerations

Safety Symbols

Explains DANGER, WARNING, CAUTION symbols and their meanings for safe operation.

Operational Safety Precautions

Follow guidelines on operating ranges, contact prevention, cooling, component use, freezing, and water hammer for safe product use.

Checking the Piping

Piping Installation Checklist

Verify pipe diameter, maintenance space, isolation valves, inlet pipe layout, and correct piping work.

Operation

Principle of Air and Condensate Discharge

Explains the trap's mechanism for discharging air and condensate during startup and operation.

Operating Phases

Details the trap's operation during start-up, steam entry, and condensate discharge phases.

Specifications

Nameplate and Configuration Details

Refer to the nameplate for specifications and view the configuration diagram for product components.

Installation

Installation Safety and Steps

Follow safety precautions and detailed steps for proper installation to ensure correct functioning and prevent hazards.

Maintenance

Maintenance Safety and Procedures

Adhere to safety, perform operational checks, and inspect parts for wear or damage during regular maintenance.

Disassembly and Reassembly

Component Disassembly and Reassembly

Steps for safely removing and reassembling the cap, cover, internal components, and their parts.

Tightening Torques

Specifies the correct torque values for reassembling components like the cover and screen holder.

Troubleshooting

Troubleshooting Safety

Follow safety guidelines when disassembling or removing the product to prevent injury from fluid discharge.

Troubleshooting Table

A table listing common problems, their causes, and recommended remedies for troubleshooting the steam trap.

Product Warranty

Warranty Details and Exclusions

Details the one-year warranty period, coverage, and specific exclusions for malfunctions and damage.

Service and Technical Assistance

Provides contact information for service or technical assistance from TLV representatives.

Options

Blowdown Valve Safety and Function

Safety precautions for operating the blowdown valve and explanation of its function for clearing debris.

BD2 Blowdown Valve Operation

BD2 Valve Operation Precautions and Steps

Follow operating precautions and steps for the BD2 valve to avoid hazards and ensure proper function.

BD2 Valve Tightening Torques

Specifies the correct torque values for tightening the BD2 valve and its associated parts.
