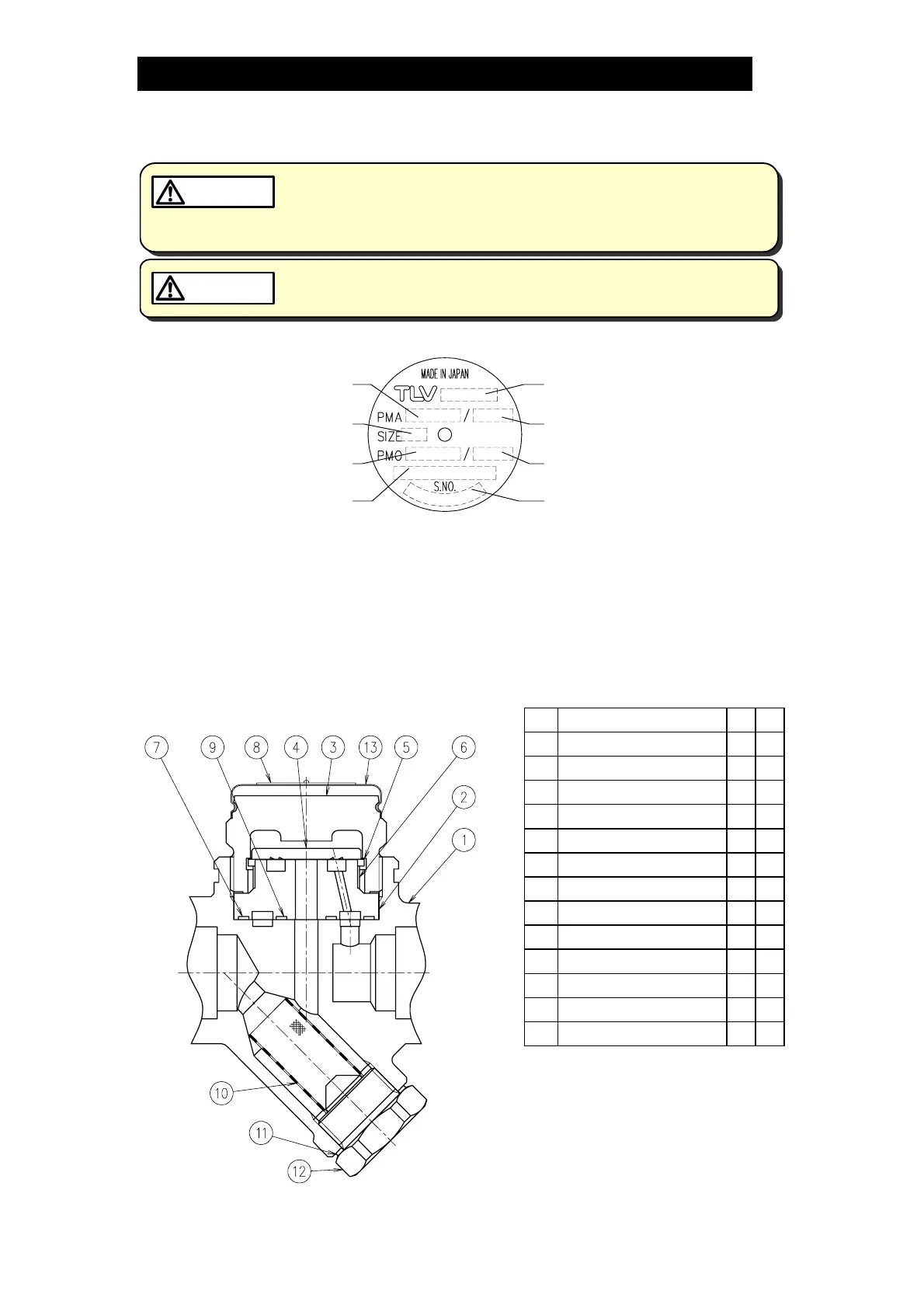

Specifications
Install properly and DO NOT use this product outside the recommended
operating pressure, temperature and other specification ranges.
Improper use may result in such hazards as damage to the product or
malfunctions which may lead to serious accidents. Local regulations
may restrict the use of this product to below the conditions quoted.
CAUTION
Use only under conditions in which no freeze-up will occur. Freezing
may damage the product, leading to fluid discharge, which may cause
burns or other injury.
CAUTION
Refer to the product nameplate for detailed specifications.
Maximum Allowable Back Pressure: 50% of the inlet pressure
* Maximum allowable pressure (PMA) and maximum allowable temperature (TMA) are PRESSURE
SHELL DESIGN CONDITIONS, NOT OPERATING CONDITIONS.
** Valve No. is displayed for products with options. This item is omitted from the nameplate when there
are no options.
Configuration
No. Name M* R*
1 Body
2 Valve Seat
√
3 Cover
√
4 Disc
√
5 Disc Holder Ring
√
6 Air Vent Ring
√
7 Outer Module Gasket
√ √
8 Nameplate
√
9 Inner Module Gasket
√ √
10 Screen
√
11 Screen Holder Gasket
√ √
12 Screen Holder
13 Cap
√
* Replacement parts are available only in
the following kits:
M = Maintenance kit
R = Repair kit
Maximum Allowable Pressure*
Nominal Diamete
Maximum Operating Pressure
Valve No.**
Model
Maximum Allowable Temperature*
Maximum Operating Temperature
Serial Number
