TMEZON A233 - Reset to Factory State; Resetting to Factory State; Dead Lock Function; Engaging and Disengaging Dead Lock

4
There is one Reset button on the back of rear panel.you can press this button for 3 seconds
with sound tip,”
please input initialization passcode,”enter: , with sound: “Successful”.000#
Then the lock is under factory state, the default master password is: 123456
you can open the door with any fingerprint or default master password.

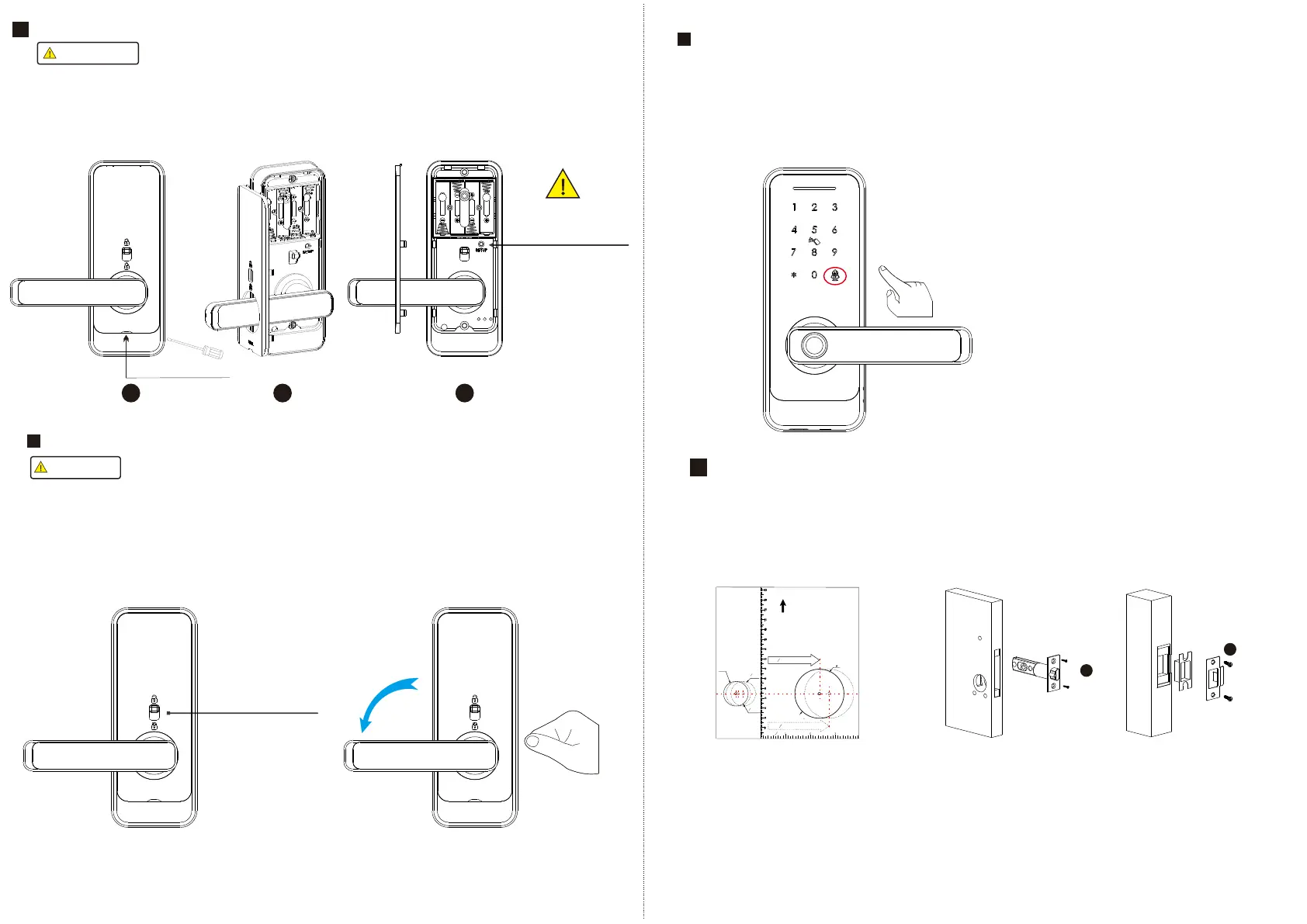

RESET TO FACTORY STATE
123
Reset Button
Pull
ATTENTION
There is one privacy button on the back panel.
You can pull downward this button with sound tip “Secure Lock is on”, then the lock is
dead locked inside, only the administrator can access the door, other user password or
card will be invalid. And you can pull upward the button one more time with sound tip
“Secure lock is off” to cancel this function. Notice even it is dead locked, you can still
press handle inside to unlock the door without limit.
Privacy Button
DEAD LOCK FUNCTION
ATTENTION
5
PASSAGE MODE &BELL FUNCTION
Enter the valid password or touch the IC card or press the finger to open the door.
After unlock the door, you can press the number “ to activate the passage
123#”
function. The lock will be under always open state, you can press any valid password
to cancel the passage mode and lock the door.
Bell function: You can press the button“#”to ring the bell.
6
PREPARING TO INSTALL
6.1 Line Drawing
Drawing Center Line
Drill hole for StrikeTest with Mortise
Step 1
Step 2
Step 3
Draw a horizontal center line inside and outside the door at 1 meter from the ground.
Fold the hole template, make the handle center line align at the door horizontal center
line, then draw out the hole lines at front and side.
Drill Hole with Template
"[45 mm]
Thick d oor
Templat e-60/ 70# LATC H
Inst allat ion฀Templa te
Plan tilla d e Insta lació n
฀ ฀฀฀฀฀฀฀฀฀฀฀฀฀฀฀
설치 템플 릿
تﯾﺑ ﺛﺗﻟا ب ﻟﺎﻗ
DOOR SIDE
ARR OW UP
"[60M M]Ba ckset
"[70M M]Ba ckset
FOLD ALONG DO OR FRAM E ▶
"[35 mm]
Thick d oor
2"[5 0mm]
Thick d oor
DOOR FRONT/BAC K
Dia meter :1"[2 5mm]h ole
Dep th:4" [100m m]
8
3
1
4
3
1
4
3
2
8
3
2
2" 50
inc hes
8
1
mm
i
i
EN - 3 support@tmezon.comEN - 4 support@tmezon.com
