TMG 1260 - Page 3

Page 2 of 12

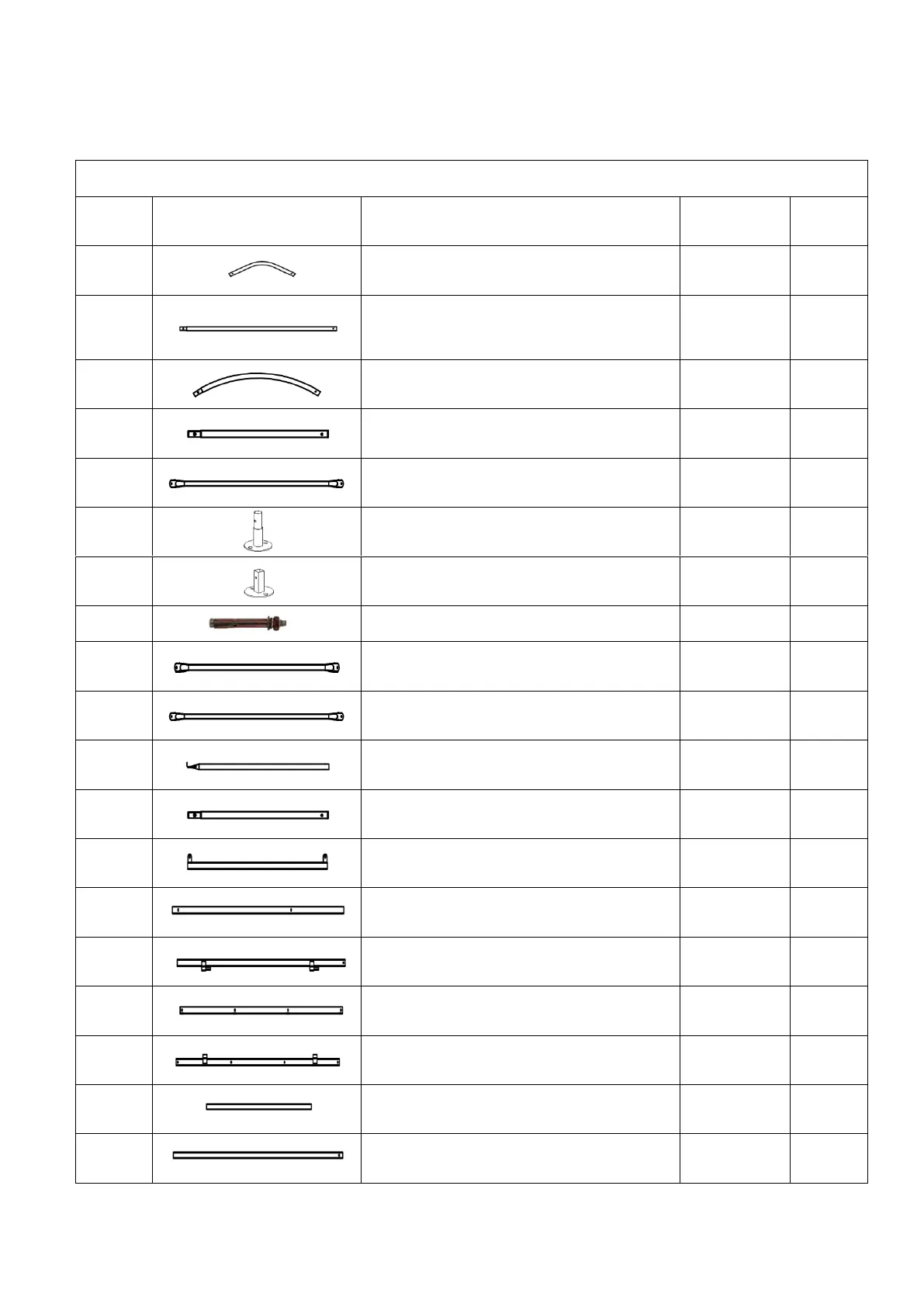

TMG-GH126007 Part List
Parts
code
Graphical
Description
Qty
BOX
1
Peak arch tube
15
1/1
2
Upper rafter tube
30
1/1
3
Shoulder tube
30
1/1
4
Sidewall tube
30
1/1
5
Roof purlin
(horizontal tube)
70
1/1
6
Base plate
31
1/1
6A
Door column base plate
2
1/1
6B
Expansion bolt M10x100mm
66
1/1
7
Front door cross tubes
2
1/1
8
Rear door cross tubes
2
1/1
9
Upper vertical tubes for rear truss
1
1/1
10
Lower vertical tubes for rear truss
1
1/1
11
Door frame cross pull tube
(front truss)
1
1/1
12
Door frame left tube
(front truss)
1
1/1
13
Door frame right tube
(front truss)
1
1/1
14
Door frame column left tube
1
1/1
15
Door frame column right tube
1
1/1
16
Door horizontal tube
4
1/1
17
Film rolling machine guide tube
2
1/1
