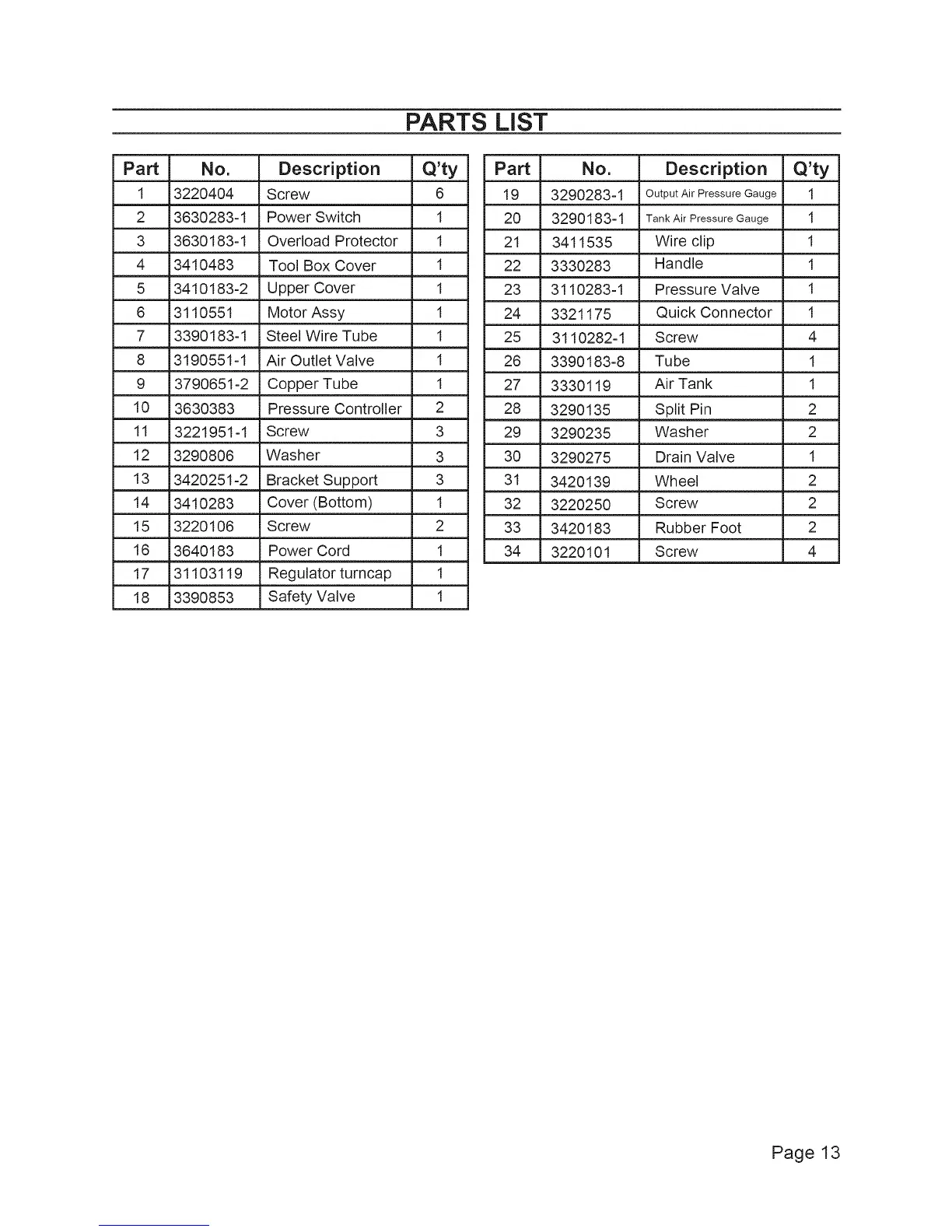

PARTS LiST
Part No. Description Q'ty
1 3220404 Screw 6
2 3630283-1 Power Switch 1
3 3630183-1 Overload Protector 1
4 3410483 Tool Box Cover 1
5 3410183-2 Upper Cover 1
6 3110551 Motor Assy 1
7 3390183-1 Steel Wire Tube 1
8 3190551-1 Air Outlet Valve 1
9 3790651-2 Copper Tube 1
10 3630383 Pressure Controller 2
11 3221951-1 Screw 3
12 3290806 Washer 3
13 3420251-2 Bracket Support 3
14 3410283 Cover (Bottom) 1
15 3220106 Screw 2
16 3640183 Power Cord 1
17 31103119 Regulator turncap 1
18 3390853 Safety Valve 1
Part No. Description Q'ty
19 3290283-1 Output Air Pressure Gauge 1
20 3290183-1 Tank Air Pressure Gauge 1
21 3411535 Wire clip 1
22 3330283 Handle 1
23 3110283-1 Pressure Valve 1
24 3321175 Quick Connector 1
25 3110282-1 Screw 4
26 3390183-8 Tu be 1
27 3330119 Air Tank 1
28 3290135 Split Pin 2
29 3290235 Washer 2
30 3290275 Drain Valve 1
31 3420139 Wheel 2
32 3220250 Screw 2
33 3420183 Rubber Foot 2
34 3220101 Screw 4
Page 13
