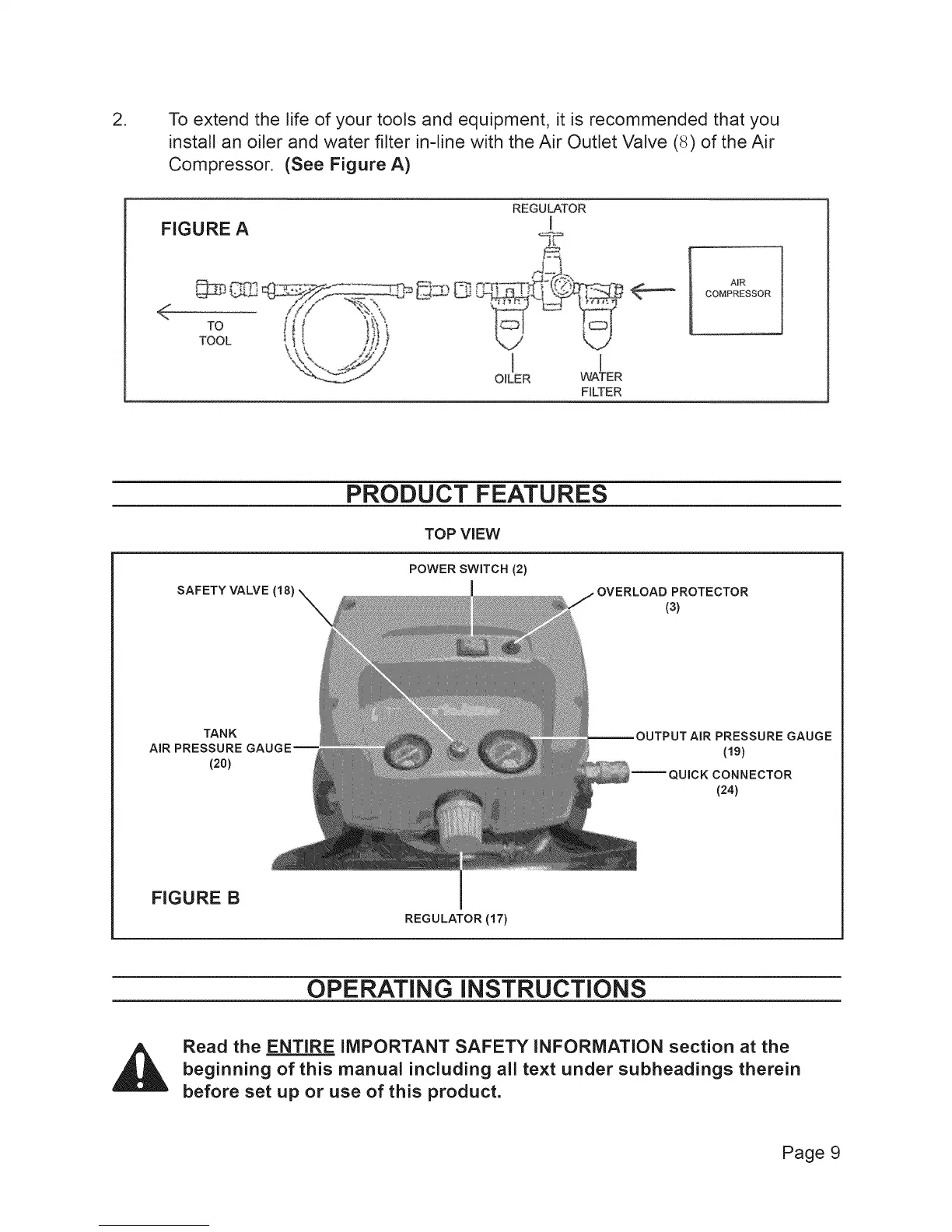

To extend the life of your tools and equipment, it is recommended that you
install an oiler and water filter in-line with the Air Outlet Valve (8) of the Air
Compressor, (See Figure A)
REGULATOR
FIGURE A I
Tool _!_ /_;1
%:-......._Y,_" I I
OILER WATER
FILTER
AIR
COMPRESSOR
SAFETY VALVE (18)
PRODUCT FEATURES
TOP VIEW
POWER SWITCH (2)
PROTECTOR
(3)
TANK
AIR PRESSURE
120)
PRESSURE GAUGE
(19)
QUICK CONNECTOR
(24)
FIGURE B
REGULATOR (17)
OPERATING INSTRUCTIONS
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the
beginning of this manual including all text under subheadings therein
before set up or use of this product.
Page 9
