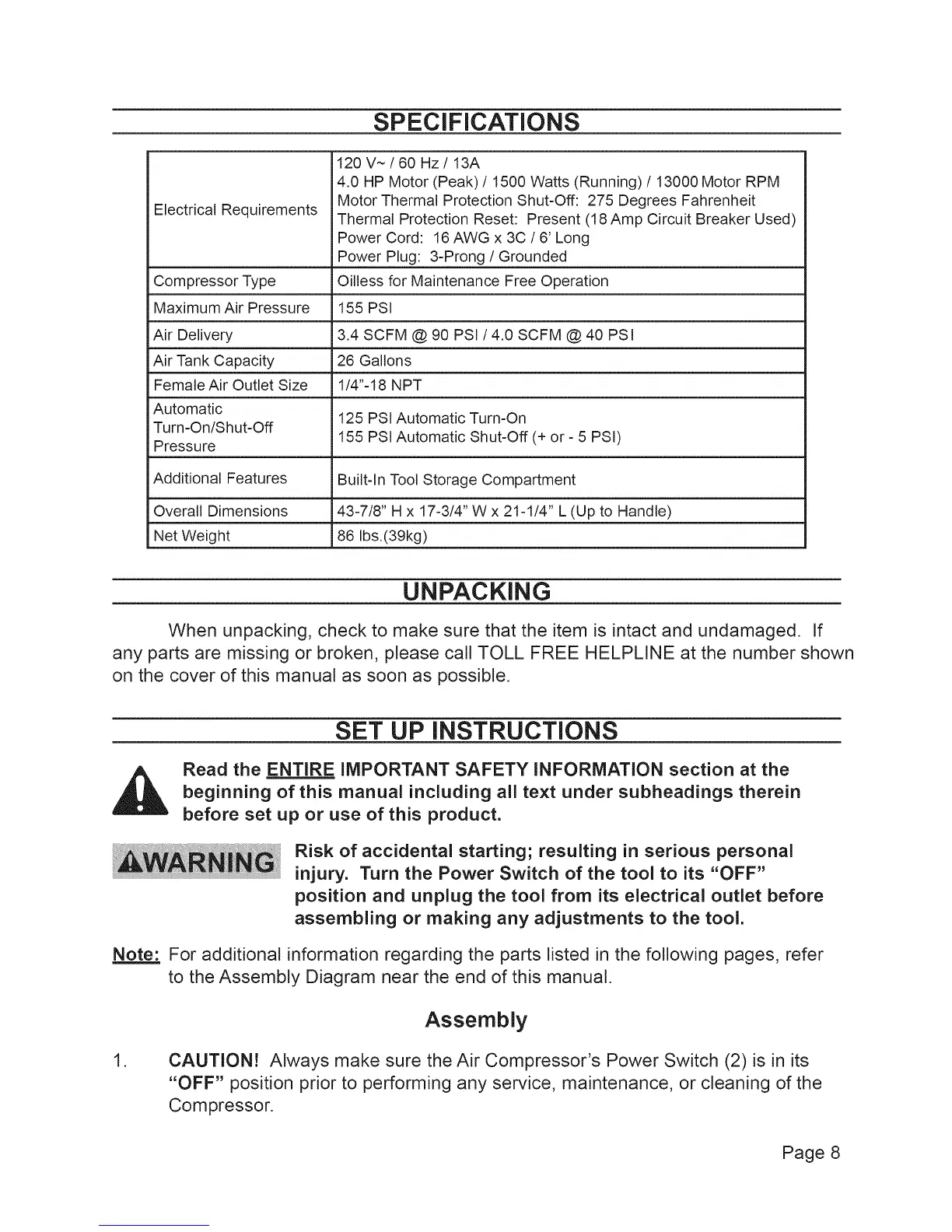

SPECiFiCATiONS
Electrical Requirements
Compressor Type
Maximum Air Pressure 155 PSI
Air Delivery 3.4 SCFM @ 90 PSI / 4.0 SCFM @ 40 PSI
Air Tank Capacity 26 Gallons
Female Air Outlet Size 1/4"-18 NPT
Automatic
125 PSI Automatic Turn-On
Turn=On/Shut-Off
155 PSI Automatic Shut-Off (+ or - 5 PSI)
Pressure
Additional Features Built-In Tool Storage Compartment
Overall Dimensions 43-7/8" H x 17-3/4" W x 21-1/4" L (Up to Handle)
Net Weight 86 Ibs.(39kg)
UNPACKING
120 V~ / 60 Hz / 13A
4.0 HP Motor (Peak) / 1500 Watts (Running) / 13000 Motor RPM
Motor Thermal Protection Shut-Off: 275 Degrees Fahrenheit
Thermal Protection Reset: Present (18 Amp Circuit Breaker Used)
Power Cord: 16 AWG x 3C / 6' Long
Power Plug: 3-Prong / Grounded
Oilless for Maintenance Free Operation
When unpacking, check to make sure that the item is intact and undamaged. If
any parts are missing or broken, please call TOLL FREE HELPLINE at the number shown
on the cover of this manual as soon as possible.
SET UP iNSTRUCTIONS
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the
beginning of this manual including all text under subheadings therein
before set up or use of this product.
Risk of accidental starting; resulting in serious personal
injury. Turn the Power Switch of the tool to its "OFF"
position and unplug the tool from its electrical outlet before
assembling or making any adjustments to the tool.
Note: For additional information regarding the parts listed in the following pages, refer
to the Assembly Diagram near the end of this manual.
Assembly
,
CAUTION! Always make sure the Air Compressor's Power Switch (2) is in its
"OFF" position prior to performing any service, maintenance, or cleaning of the
Compressor.
